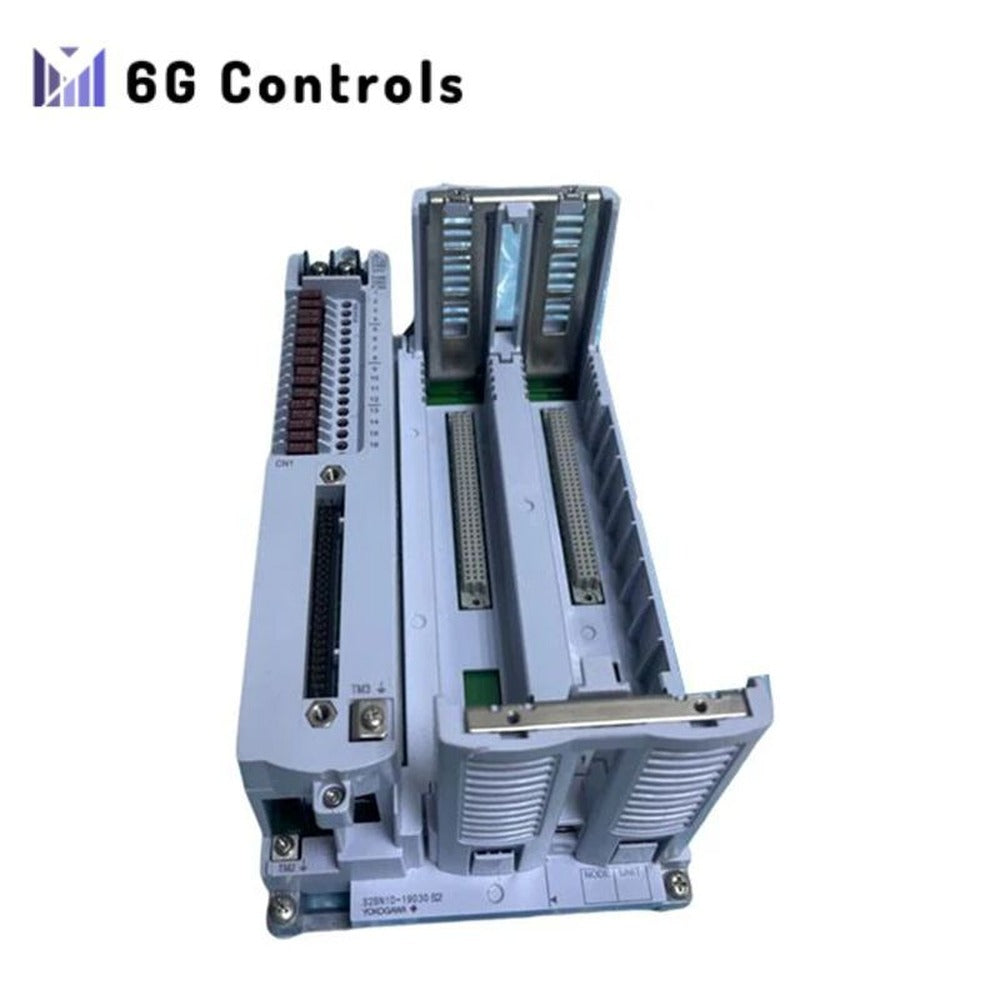

YOKOGAWA S2BN1D-19030 Base Plate Brand New In Stock

Overview

The Yokogawa S2BN1D-19030 Base Plate is a crucial component in ProSafe-RS systems for configuring N-IO I/O units. It enables field signal connections, power supply management, and communication through F-SB bus connections, all within a compact and robust design.

Technical Specifications

Mounting Types:
- DIN rail mountable
- Wall mountable with M4 screws
I/O Module Configuration:
- Redundant or single I/O module configurations
Number of Channels:
- 16 channels for field device connections
- F-SB Bus Connection:
  - Connected via S2KLF10 F-SB bus cable
System Power Supply:
- Connected via S2KPB10 power supply cable
Grounding:
- M3 screw terminal for grounding
Withstanding Voltage:
- Between input/output and system: 1500 V AC for 1 minute
- Continuous: 42 V DC
Insulation Resistance:
- 100 MΩ or higher at 500 V DC
Weight:
- Approx. 1.4 kg

Field Power Supply Specifications

Power Supply Rating:
- 24 V DC, +20%/-10% tolerance, up to 11.0 A
Connection for Field Power:
- Connected by a cable to the field power supply terminal (EP+, EP-)
Over Voltage Protection:
- Detection level of 32 V or lower
Withstanding Voltage Between Output and Ground:
- 500 V AC or higher for 1 minute
Capacitance Between Output and Ground:
- 0.4 μF or less
