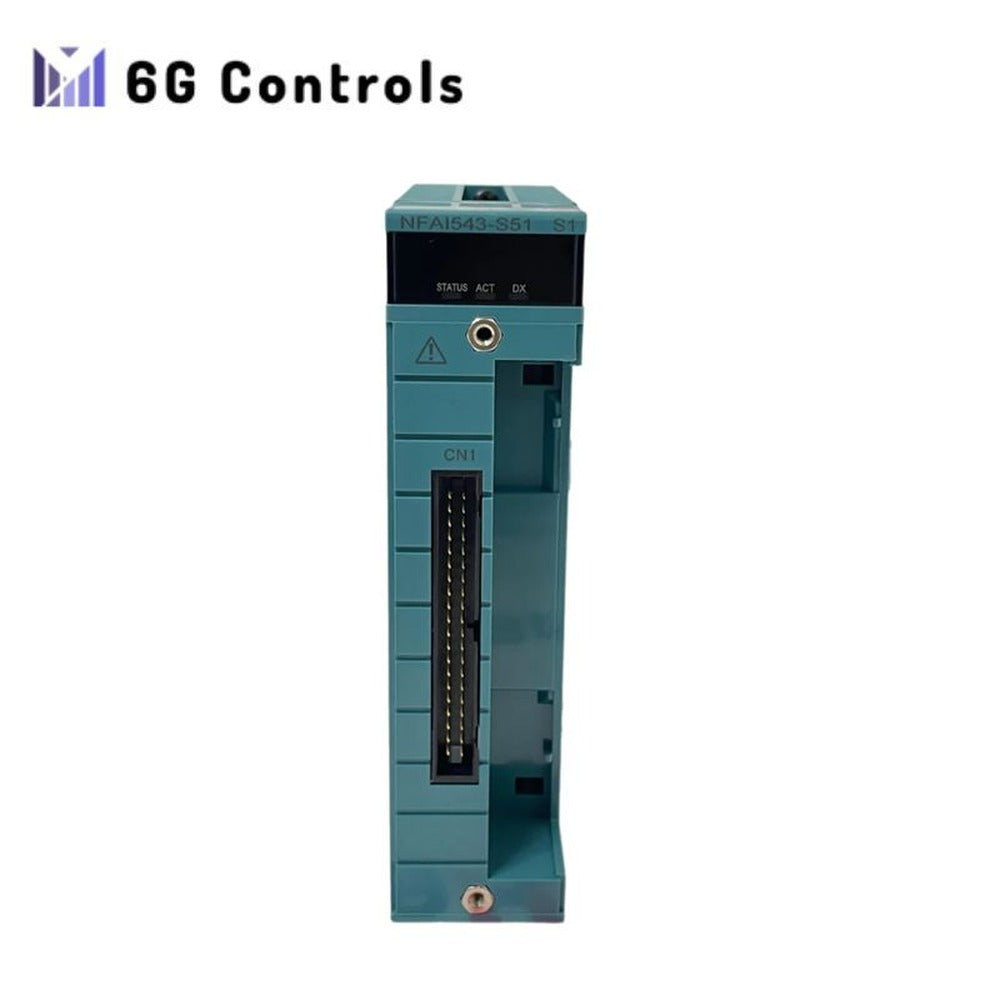

Yokogawa NFAI543-S01 Analog Output Module In Stock

Overview

The Yokogawa NFAI543-S01 is an analog output module designed for industrial automation systems. It is part of the Yokogawa FA-M3 series of fieldbus modules. This module offers 16 isolated analog outputs, each with a resolution of 12 bits, ensuring precise control over processes such as temperature, pressure, flow rate, and valve position.

Technical Specifications

Output Signal: 4 to 20 mA
Withstanding Voltage: 1500 V AC for 1 minute (between output and system)
Allowable Load Resistance: 0 to 750 Ω
Circuit Open Detection: 0.65 mA or less
Accuracy: ±0.3% of full scale
Data Refresh Cycle: 10 ms
Output Step Response Time: 100 ms
Output Fallback: Configurable for each channel
Temperature Drift: Max. ±0.01%/°C
Maximum Current: 230 mA (5 V DC)
Power Consumption: 540 mA (24 V DC)
Operating Temperature Range: -20°C to +60°C
Protection Rating: IP67 (dust and water resistant)
Dimensions: 1.3″ x 5.0″ x 5.0″ (3.2 cm x 12.7 cm x 12.7 cm)
Weight: 0 lbs 10.5 oz (0.3 kg)
