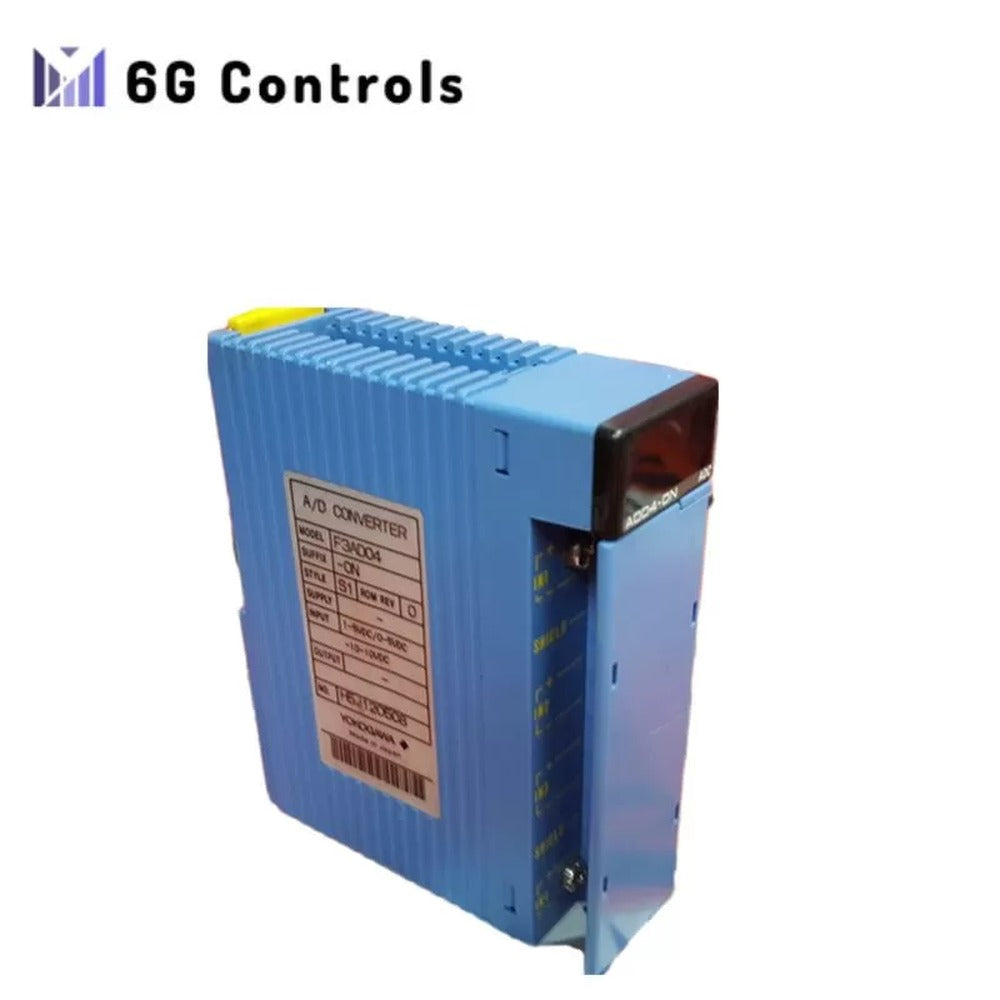

YOKOGAWA F3AD04-0N Analog Input Module In Stock

Manufacturer :Yokogawa

Product No. :F3AD04-0N

Type:Analog Input Module

Condition:new and original

Lead Time:in stock

Certificate:COO/test report

Dimensions:95 x 60 x 25 mm (3.74 x 2.36 x 0.98 in)

Weight:Approximately 150 g (5.3 oz)

Price:USD700

  • Product Details
  • Inquiry

Overview

The YOKOGAWA F3AD04-0N is an analog input module for the FA-M3 range-free multi-controller. It features a high conversion speed of 50 μs per point and can handle various input signals, including voltage and current signals.

The module includes four differential input channels. You can select the input signal range on a channel-by-channel basis. It provides advanced features like scaling and filtering, ensuring ease of use. Additionally, the input terminals are isolated from the internal circuit by photocouplers to prevent noise and ground loops.

Key Features of the YOKOGAWA F3AD04-0N

  • High Conversion Speed: 50 μs per point
  • Channels: Four differential input channels
  • Selectable Input Signal Range:
    • 0 to 5 V DC
    • 1 to 5 V DC
    • -10 to 10 V DC
    • 0 to 10 V DC
    • 0 to 20 mA DC
    • 4 to 20 mA DC
  • Isolation: Input terminals isolated by photocouplers
  • Conversion Cycle Options:
    • 50 μs
    • 100 μs
    • 250 μs
    • 500 μs
    • 1 ms
    • 16.6 ms
    • 20 ms
    • 100 ms
  • Advanced Features: Scaling and filtering

Applications of the YOKOGAWA F3AD04-0N

  • Data Acquisition
  • Process Control
  • Machine Control
  • Test and Measurement

Technical Specifications of the YOKOGAWA F3AD04-0N

  • Number of Inputs: 4 differential inputs
  • Input Signal Range: Voltage signal only
  • Conversion Speed: 50 μs per point
  • Conversion Cycle: Selectable from 50 μs to 100 ms
  • Input Impedance: 2 MΩ
  • Common Mode Rejection Ratio: 120 dB at 50 Hz
  • Noise Level: Less than 0.1% of full scale
  • Power Consumption: Approximately 2.5 W
  • Operating Temperature Range: -20 to 70 °C (-4 to 158 °F)
  • Storage Temperature Range: -40 to 80 °C (-40 to 176 °F)
  • Humidity: 90% RH or less (non-condensing)
  • Vibration: 0.05 g rms, 5 to 500 Hz
  • Shock: 5 g, 20 ms half-sine wave
  • Dimensions: 95 x 60 x 25 mm (3.74 x 2.36 x 0.98 in)
  • Weight: Approximately 150 g (5.3 oz)
