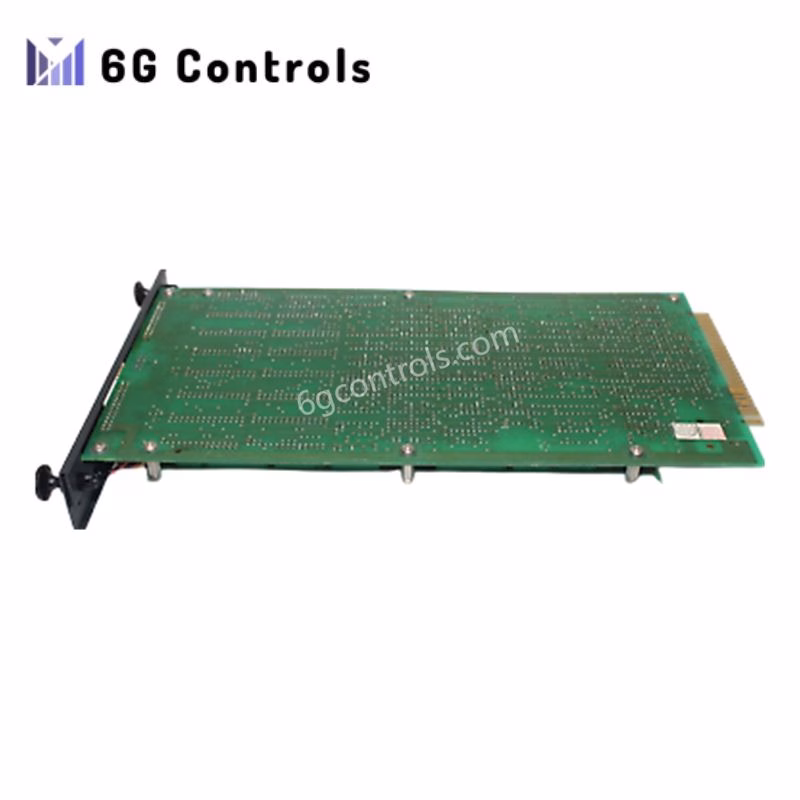

Yokogawa ALP111-S00 PROFIBUS-DP Communication Module

Hardware specifications for ALP111-S00 PROFIBUS-DP communication module are as shown below.

Table PROFIBUS-DP Communication Module Hardware Specifications

Item Specifications:

• Model: ALP111
• Interface: PROFIBUS-DP
• Connection Method: EIA-RS-485-compliant
• Signal Isolation: Isolated
• Transmission Speed: 9600 bps to 12 Mbps
• Transmission Route: Shielded
• Maximum Transmission Distance: 1.2 km per segment (at the communication speed of 9600 bps)
• Number of Communication Ports: One port (*1)
• Communication Port: D-sub 9 pin (female) (*2)
• Maintenance Port: D-sub 9 pin (male), Interface: RS-232C
• Maximum Current Consumption: 0.7 A
• Weight: 0.3 kg

Note: The cables and terminators used with this module must comply with PROFIBUS-DP standards (PROFIBUS Specifications IEC 61158-2/EN 50170 volume 2).

Additional Notes:

• *1: There is another port for maintenance.
• *2: The PROFIBUS-DP connector used must comply with the PROFIBUS-Specificaiton-Normative-parts-2.
