Overview:

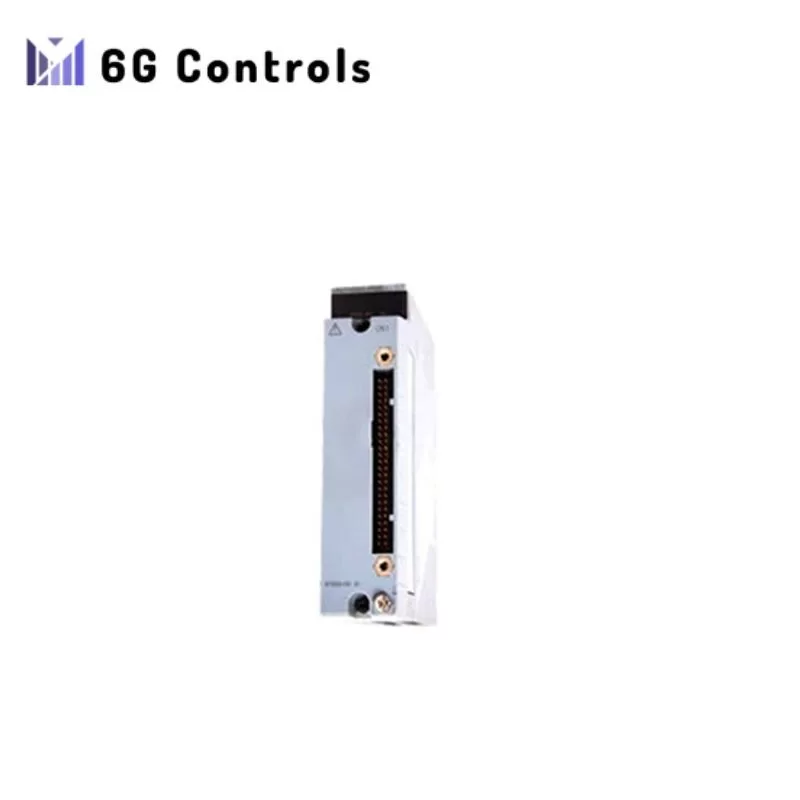

The Yokogawa ADV869-P01 is a high-density digital output module designed for use with Yokogawa CENTUM VP and FIO fieldbus systems. It features 64 channels for on/off control signals and provides robust protection against electrical noise and transients.
Technical Specifications:
- Number of Channels: 64 outputs
- Signal Type: On/off
- Output Voltage: 24 VDC
- Output Current: 0.5 A per channel
- Isolation: 1500 V between channels and ground
- Common Ground: Every 16 channels
- Response Time: 1 ms
- Accuracy: ±0.1%
- Power Consumption: 20 W
- Operating Temperature: -40 to 70 °C
- Humidity: 5 to 95% RH (non-condensing)
- Ingress Protection: IP67
Additional Features:
- Pulse Width Modulation (PWM) output
- Time-Proportional Output (TPO)
- Manual override switch for each channel
- Diagnostic LEDs for each channel
Applications:
- Solenoid valves
- Motor starters
- Contactors
- Indicators
- Alarms
Benefits:
- High Density: Control a large number of devices with a single module.
- Isolation: Protects against electrical noise and transients.
- Common Ground: Simplifies wiring with a common ground for every 16 channels.
- Versatility: Supports various signal types and output functions.
- Reliability: Designed for harsh industrial environments.
