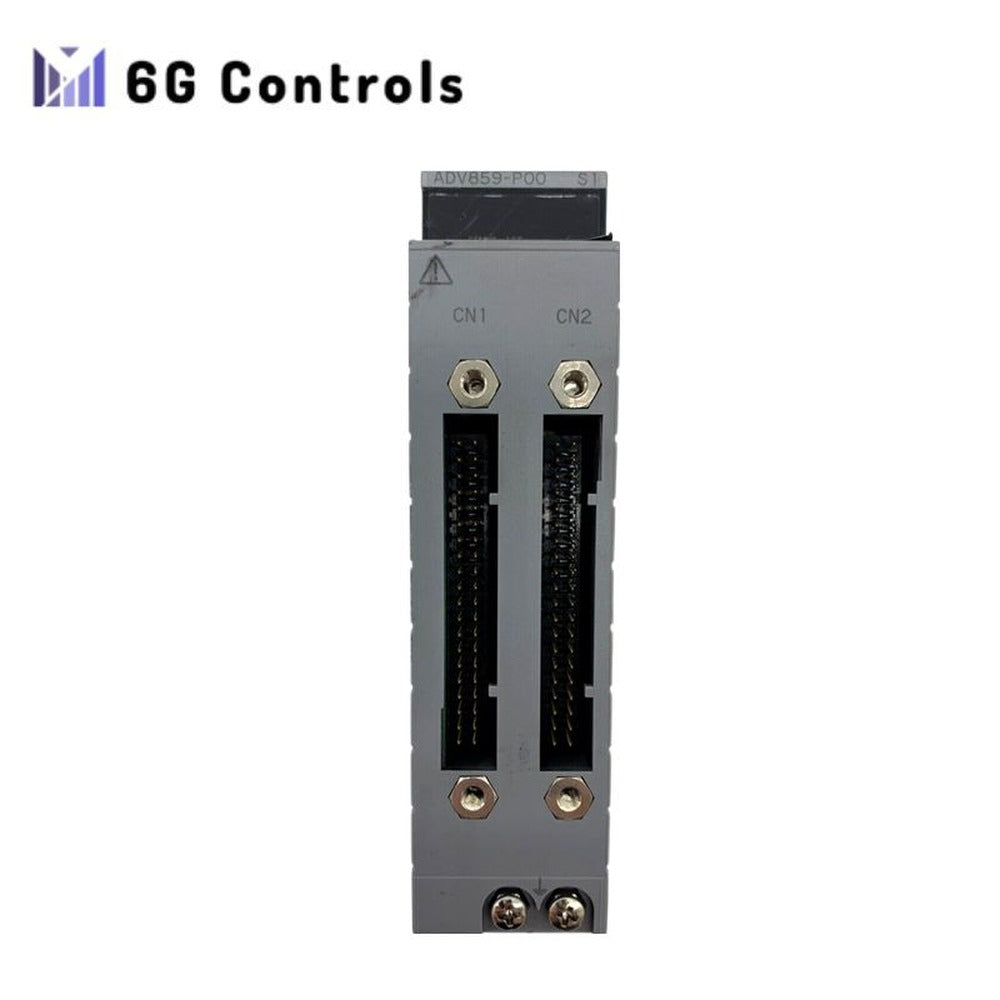

YOKOGAWA ADV859 Digital I/O Module Brand New In Stock

Overview

The Yokogawa ADV859 is a digital input/output (I/O) module tailored for industrial automation systems, specifically compatible with the CENTUM-ST2 control system. It features both input and output channels, offering flexible integration into various control processes. The module ensures reliable signal isolation, fast response times, and robust contact ratings for both input and output signals. With a dedicated cable (KS2) for external connections, it is designed for smooth integration in demanding industrial environments.

Technical Specifications

I/O Channels

Input Channels: 16 channels
Output Channels: 16 channels

Signal Isolation

Isolated Channels: Ensures protection against electrical interference

Input Signals

Contact Input:
- OFF Signal: 100 kΩ or more
- ON Signal: 200 Ω or less
- Minimum Current (short-circuited contacts): 1.25 mA
Voltage Input:
- OFF Signal: 4.5 to 25 V DC
- ON Signal: ±1 V DC, 200 Ω or less

Input Contact Rating

Voltage: 5 V DC
Minimum Current: 20 mA or more for reliable operation

Pushbutton Input Function

Not supported

Response Times

Input Response Time: 8 ms (for status input)
Output Response Time: 16 ms or less

Output Signals

Output Type: Transistor contact
Output Contact Rating:
- Inductive and resistive loads: 30 V DC, 100 mA

Pulse Width and Delay

Pulse Width: 8 ms to 7200 s
Pulse Width Resolution: 8 ms, with a 1 ms delay for ON/OFF switching

Current Consumption

Maximum Current Consumption: 450 mA (5 V DC)

Weight

Approximate Weight: 0.30 kg

External Connection

Cable: Dedicated cable (KS2)
