Overview

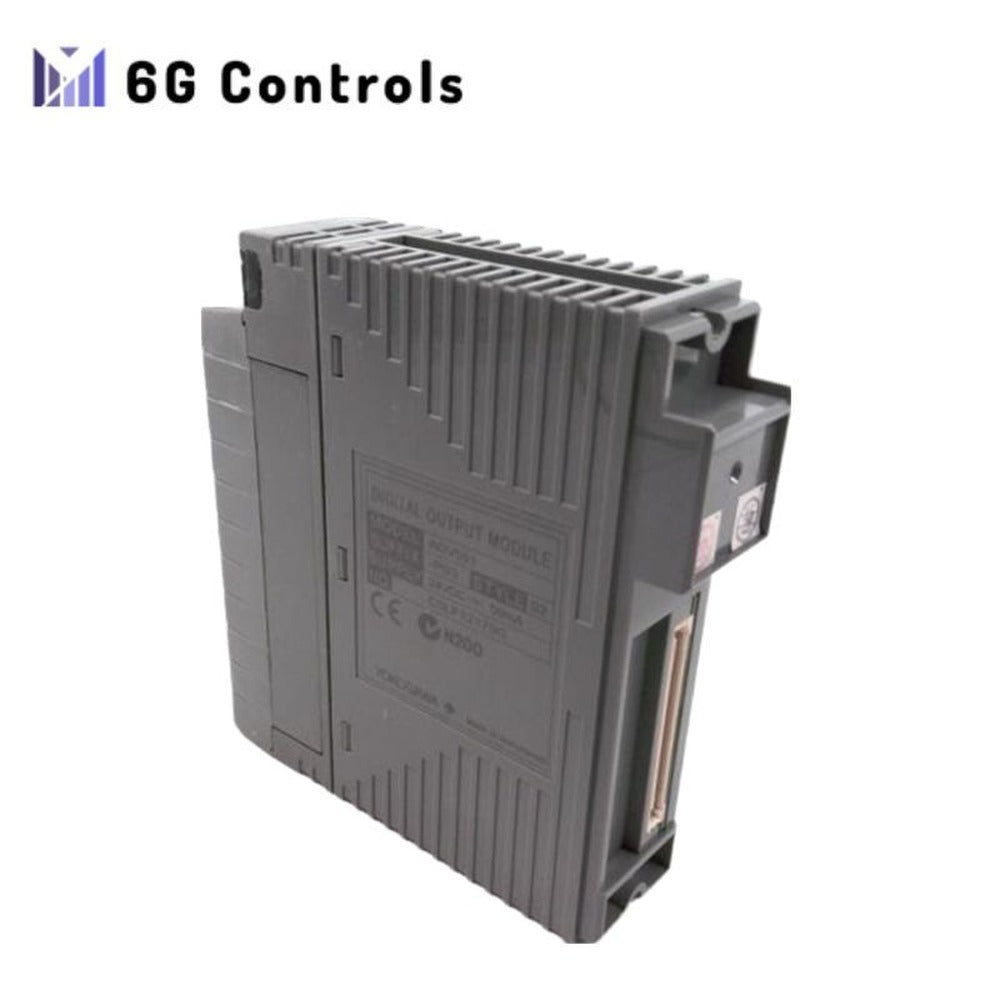

The Yokogawa ADV561 is a digital output module designed for use in industrial automation and control systems. As part of Yokogawa’s FIO (Field Input/Output) series, the ADV561 provides reliable, high-performance outputs for a wide range of applications. This module supports 64 output channels and is built for demanding environments, offering flexibility in signal handling, output formatting, and system integration.
Technical Specifications
Output Channels and Voltage Specifications
- Number of Output Channels: 64
- Rated Applied Voltage: 24V DC
- External Power Supply Rating: 24V DC, 100 mA
- External Power Supply Voltage Range: 20.4 to 26.4V DC
- Output ON Voltage Maximum: 2V DC
- Leak Current Maximum (when Output OFF): 0.1mA
- Output Format: Current sink
- Maximum Load Current: 100 mA per channel at 26.4V
Withstanding Voltage and Isolation
- Between Output Signal and System: 2 kV AC for 1 minute
- Between Commons: 500V AC for 1 minute
- Common Minus (–) Side Every 16 Channels: Isolated
Response Time and Pulse Characteristics
- Output Response Time:
- 3 ms or less for status output
- 10 ms or less for mixed status and pulse outputs
- Pulse Width:
- From 8 ms to 7200 s
- Pulse width resolution: 8 ms
- ON/OFF delay: Max. 1 ms
Power Consumption and Connections
- Maximum Current Consumption:
- 700 mA (5V DC)
- 120 mA (external power supply)
- Weight: Approx. 0.30 kg
- External Connection: Dedicated cable (AKB337) with MIL connector
