Overview

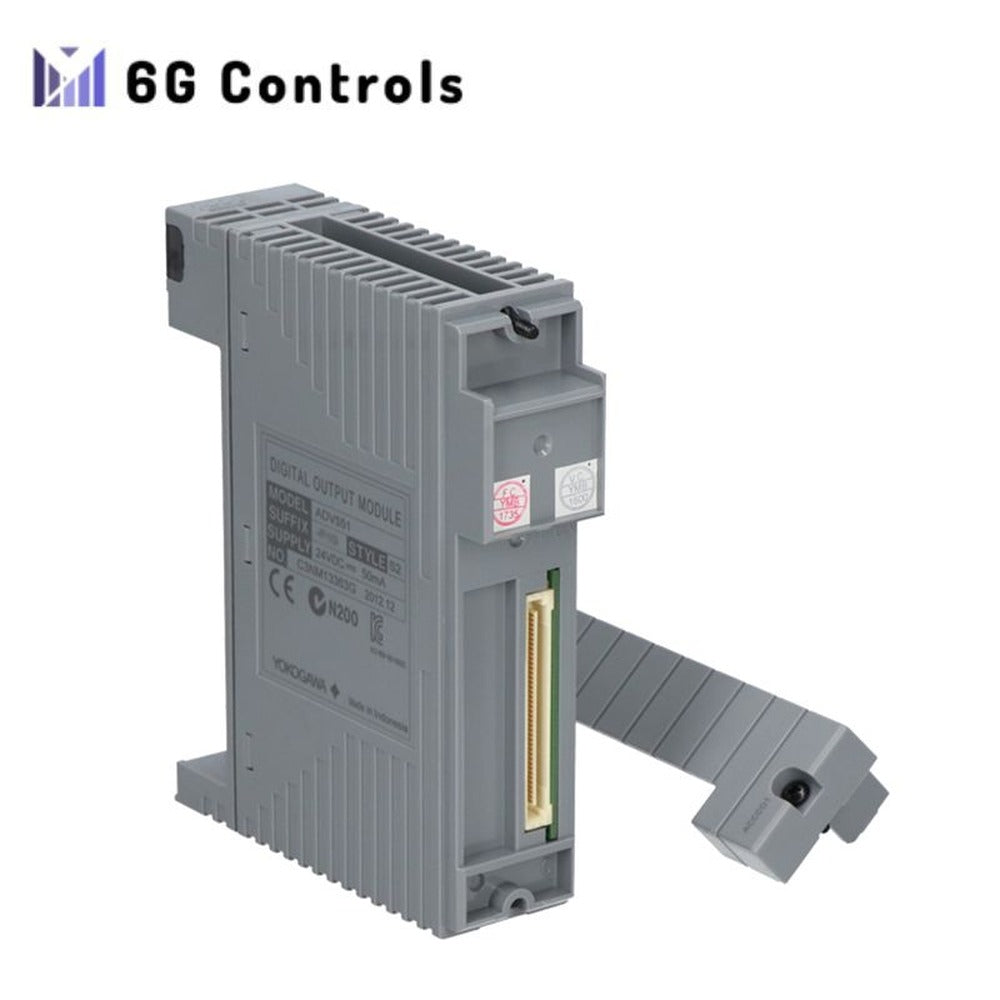

The Yokogawa ADV551 is a versatile digital output module designed for industrial automation and control systems. It provides 32 isolated transistor contact outputs that can switch 24V DC signals. This module is ideal for applications requiring the control of motors, valves, or other devices within automated systems. Its high reliability and fast response times make it suitable for both status monitoring and pulse width applications in complex automation environments.
Technical Specifications
- Model Number: ADV551
- Number of Output Channels: 32
- Rated Applied Voltage: 24V DC
- External Power Supply: 24 VDC, 50 mA
- External Power Supply Voltage Range: 20.4V to 26.4V DC
- Output ON Voltage (Maximum): 2 VDC
- Leak Current (Maximum when Output OFF): 0.1 mA
- Output Format: Current Sink
- Maximum Load Current per Channel: 100 mA, 26.4V DC
Electrical Performance
- Withstanding Voltage:
- 2 kV AC between output signal and system for 1 minute
- 500 V AC between commons for 1 minute
- Output Response Time:
- 3 ms or less for status output
- 10 ms or less for mixed status and pulse outputs
- Pulse Width Range: 8 ms to 7200 seconds
- Pulse Width Resolution: 8 ms (with a maximum ON/OFF delay of 1 ms)
Functional Capabilities
- Status Output: Monitors device status
- Pulse Width Output: Controls time-based outputs
- Time-Proportioning Output: Modulates output based on time
- ON/OFF Status Output: Basic binary control
- One-Shot Pulse Width Output: One-time pulse control
- Time-Proportioning ON/OFF Output: Adjustable ON/OFF control based on time proportion
Power and Weight
- Maximum Current Consumption:
- 700 mA (5V DC)
- 60 mA (external power supply)
- Weight: Approx. 0.20 kg
External Connections
- Connector Types: Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable
