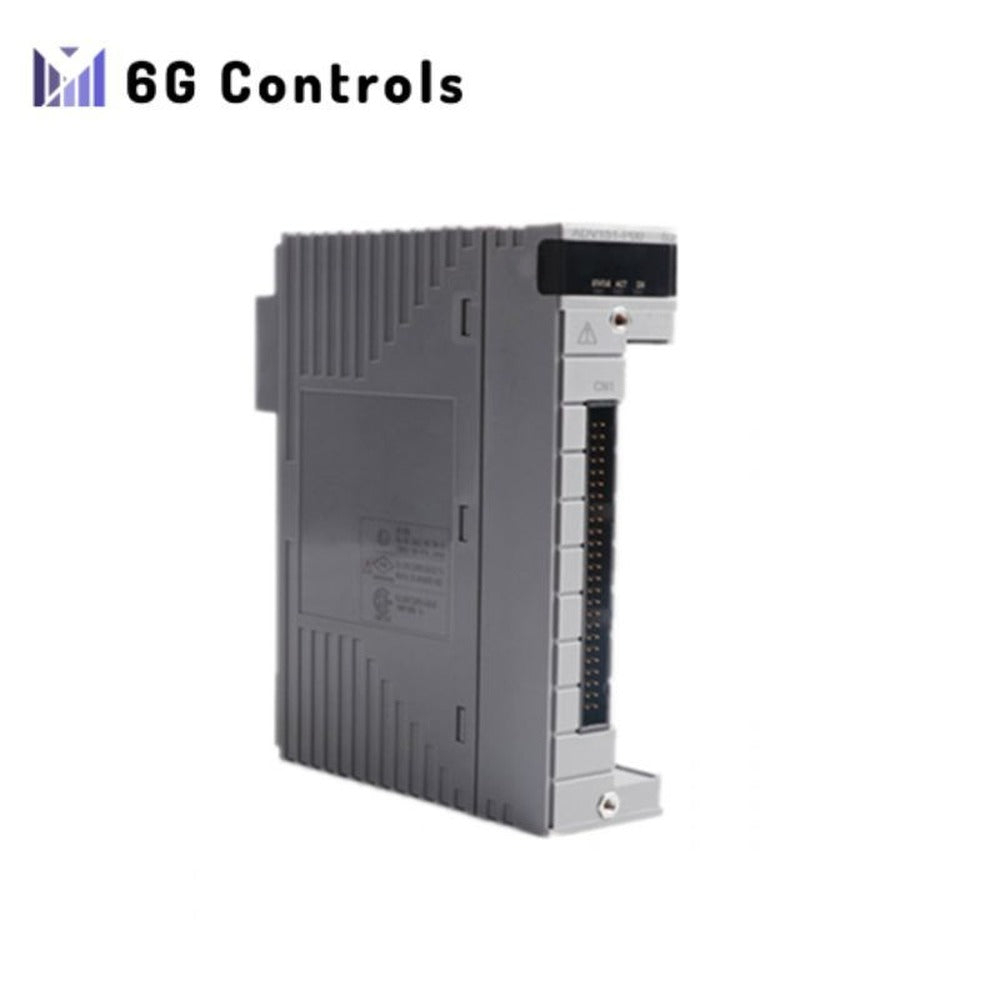

YOKOGAWA ADV161 Digital Input Module Brand New In Stock

Overview

The YOKOGAWA ADV161 is a high-performance digital input module for Yokogawa’s Centum CS and Centum VP automation systems. It provides 64 channels for receiving 24V DC ON/OFF signals from field devices and sensors. This module is designed to handle various input types with high reliability, offering fast response times and robust isolation features. It supports functions such as status input, pushbutton input, and event timestamping, making it suitable for a wide range of industrial automation applications.

Technical Specifications

Input Channels

Number of Channels: 64 channels.
Input Voltage: 24 V DC (sink/source).

Voltage Ranges

Input ON Voltage: 20 to 26.4 V DC.
Input OFF Voltage: 5.0 V DC or less.

Input Current

Rated Input Current: 2.5 mA ± 20 % per channel at rated input voltage.

Maximum Allowable Input Voltage

Maximum Voltage: 30.0 V DC.

Withstanding Voltage

Between Input Signal and System: 2 kV AC for 1 minute.
Between Commons: 500 V AC for 1 minute (every 16 channels).

Response Times

Input Response Time: 8 ms or less (for status input).
Minimum ON Detection Time: 20 ms (for pushbutton input).
Maximum ON/OFF Cycle: 25 Hz (for pushbutton input).

Power Consumption

Maximum Current Consumption: 550 mA (5 V DC).

Weight

Weight: Approx. 0.30 kg.

External Connections

Cable Type: Dedicated cable (AKB337).
Connector Type: MIL connector cable.
