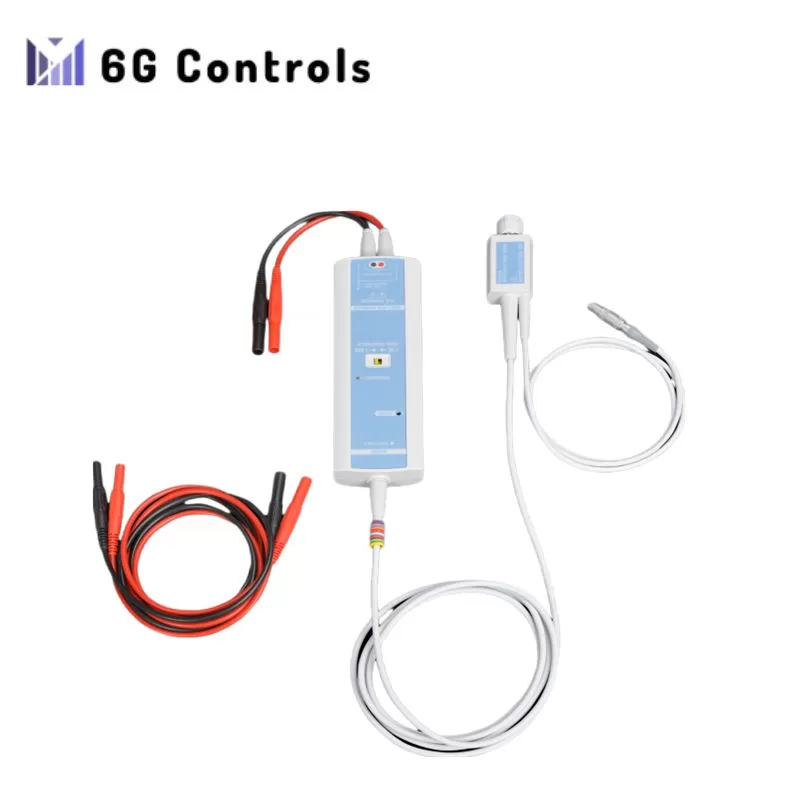

YOKOGAWA 701978 High Voltage Differential Probe In Stock

Manufacturer:Yokogawa

Product Number:701978

Type:High Voltage Differential Probe

Condition:new and original

Lead Time:in stock

Certificate:COO/test report

Dimensions:96 x 96 x 48 mm (3.78 x 3.78 x 1.89 in).

Weight:0.5 kg (1.1 lb).

Price:USD700

  • Product Details
  • Inquiry

Overview

The YOKOGAWA 701978 is a high voltage differential probe designed for floating signal measurement with oscilloscopes in power electronics and mechatronics fields.

Key Features

  • Maximum Input Voltage: ±1500 V (DC + AC peak)
  • Bandwidth: DC to 150 MHz (-3dB)
  • Attenuation Ratio: 500:1 / 50:1
  • Input Resistance: 4 MΩ
  • Input Capacitance: 5 pF
  • Common Mode Rejection Ratio (CMRR): >120 dB (DC to 100 MHz), >80 dB (100 MHz to 150 MHz)
  • Probe Tip: Pincher tip (red, black)
  • Probe Length: 2430 mm

Applications

  • Measure inverter output voltages
  • Measure motor drive voltages
  • Measure power supply voltages
  • Measure other floating signals

Benefits

  • High Input Voltage Capability: Measures high voltage signals effectively.
  • Wide Bandwidth: Measures high-frequency signals accurately.
  • High CMRR: Rejects common mode noise efficiently.
  • Small and Lightweight: Ensures easy handling with a compact probe body.
