Overview

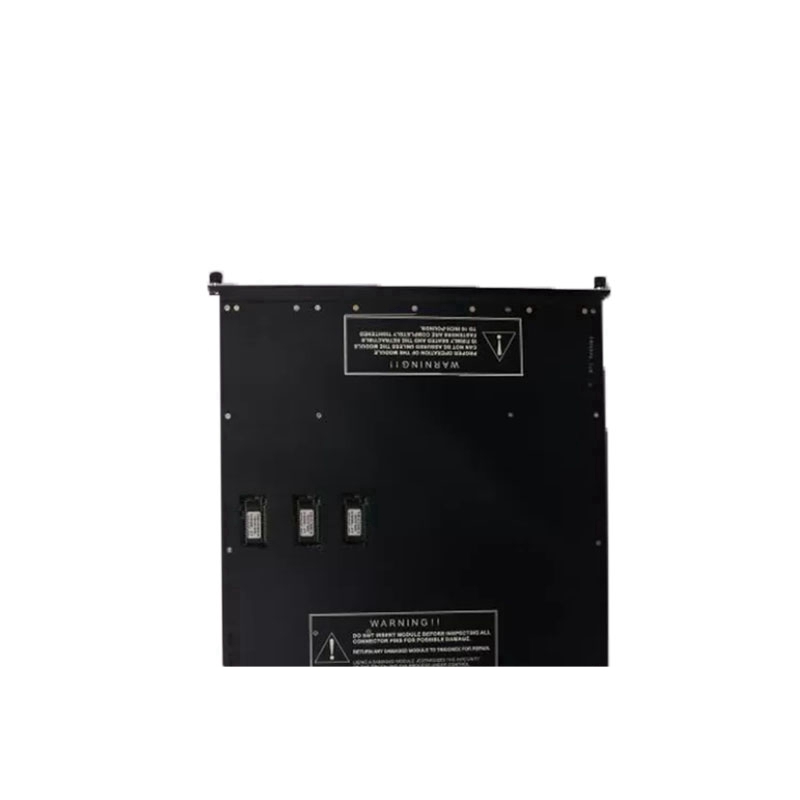

The TRICONEX 3703E Isolated Analog Input is a high-quality, isolated analog input module with 16 0-5V or 0-10V input channels. Galvanic isolation between the input and output circuits safeguards the system from electrical noise and transients. In addition, the module has a high common-mode rejection ratio (CMRR) of -100dB, ensuring reliable measurements even in noisy surroundings.
Features
- 16 channels of 0-5V or 0-10V input
- Galvanic isolation between input and output circuits
- High CMRR of -100dB
- TMR (triple modular redundancy) for fault tolerance
- DIN rail mounting
- Modbus RTU communication
Technical Specifications
| Specification | Value |
|---|---|
| Input voltage range | 0-5V or 0-10V |
| Input impedance | 30MΩ (DC) |
| CMRR | -100dB |
| Accuracy | ±0.05% of full scale |
| Resolution | 12 bits |
| Sampling rate | 100Hz |
| Communication protocol | Modbus RTU |
Benefits
- Increased system safety and reliability
- Accurate measurements in noisy environments
- Reduced maintenance costs
- Easy to install and configure
- Wide range of applications
Applications
- Process control
- Industrial automation
- Building automation
- Medical equipment
- Test and measurement
- Security systems
