Overview:

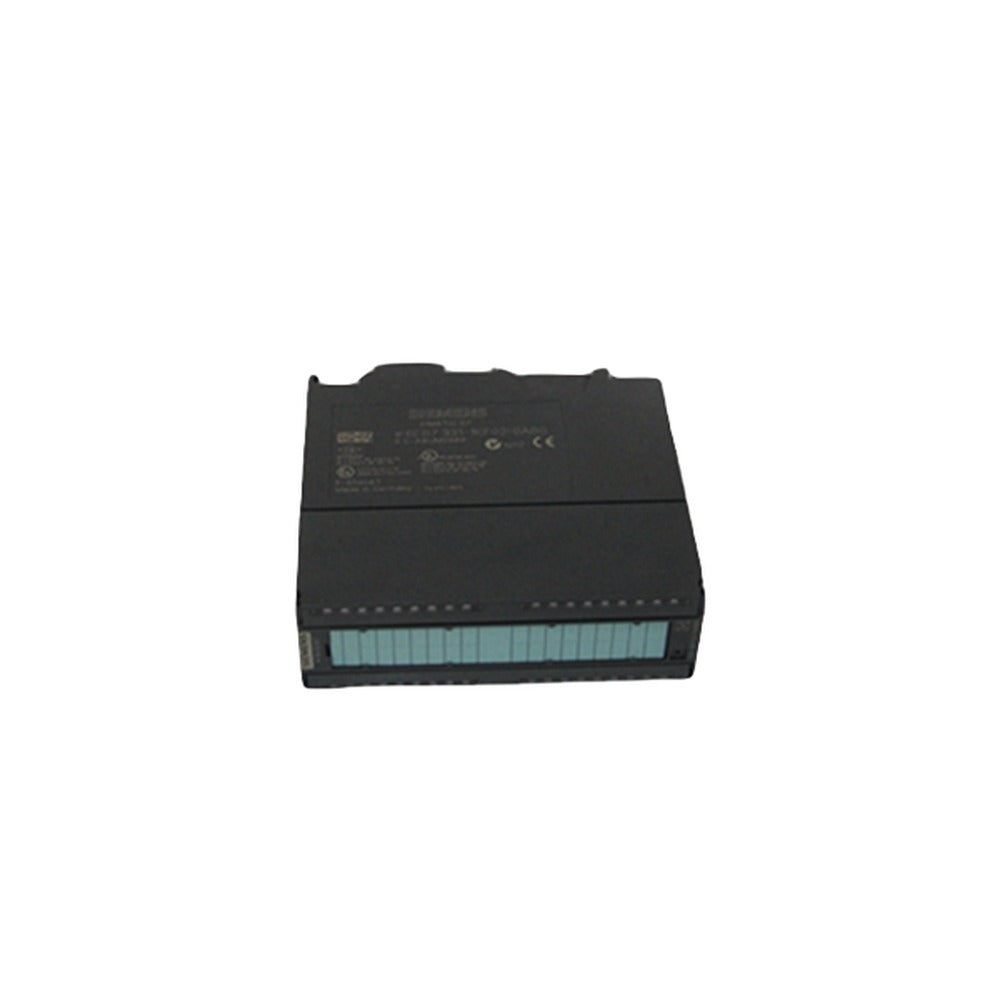

The Siemens 6ES7331-7SF00-0AB0 is an isolated analog input module designed for the SIMATIC S7-300 series of programmable logic controllers (PLCs). It features 8 channels for thermocouples and 4 channels for Pt100 sensors, enabling measurement of signals from hazardous areas. The module is 1 x 20-pole and weighs 0.657 lbs. Additionally, it is diagnostics-capable and has undergone PTB testing for reliability.
Features:
The module offers several notable features:
- Galvanic isolation: The input channels are galvanically isolated from the PLC, safeguarding it against potential damage from high voltages or currents.
- Hazardous area certification: It holds certification for use in hazardous environments, making it well-suited for industries such as oil and gas, chemical, and manufacturing.
- Diagnostics capability: The module incorporates built-in diagnostics that aid in identifying and troubleshooting issues.
- PTB testing: It has undergone testing and certification by the Physikalisch-Technische Bundesanstalt (PTB), Germany’s national metrology institute.
Technical Specifications:
The module’s technical specifications include:
- Number of channels: 8 thermocouples, 4 Pt100 sensors
- Voltage range: 125V to 0 – 10V
- Current range: 20mA to 4mA
- Accuracy: ±0.1%
- Resolution: 16 bits
- Isolation voltage: 3kVrms
- Temperature range: -25°C to +70°C
Benefits:
The Siemens 6ES7331-7SF00-0AB0 provides several benefits, including:
- Safety and reliability through its isolated design
- Certification for usage in demanding hazardous environments
- Convenient troubleshooting with built-in diagnostics
- Accurate and reliable performance confirmed by PTB testing
Applications:
The module finds applications in various fields, such as:
- Temperature measurement
- Pressure measurement
- Flow measurement
- Level measurement
- Weight measurement
- Other process control applications
