Overview:

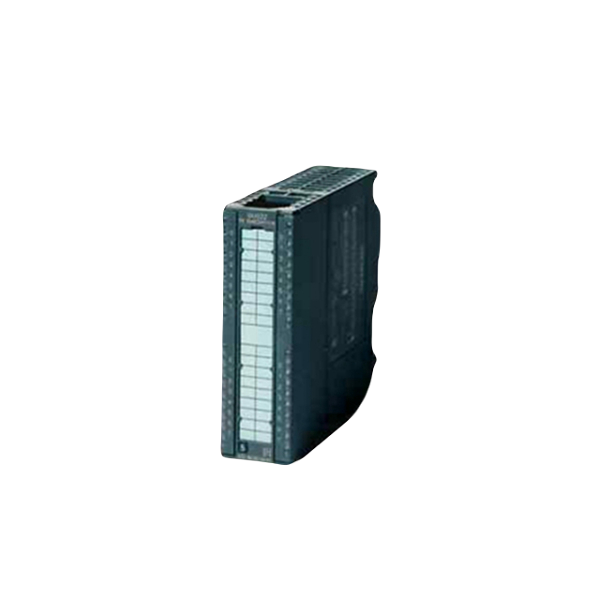

The Siemens 6ES7331-7KF02-0AB0 module serves as an 8-channel analogue input module specifically designed for the SIMATIC S7-300 PLC range. It facilitates the measurement of various analogue signals, including voltage, current, resistance, and thermocouples. With a floating input range of 0 to 10 V or 4 to 20 mA and resolution options of 9/12/14 bits, the module offers versatility and precision. Additionally, it incorporates alarm and diagnostics functions, enhancing its functionality. The module features a removable/insertable design, adding convenience to installation and maintenance processes.
Features:
- 8-channel analogue input capability
- Supports a floating input range of 0 to 10 V or 4 to 20 mA
- Offers high resolution options of 9/12/14 bits
- Enables the measurement of voltage, current, resistance, and thermocouples
- Includes alarm and diagnostics functions
- Designed with a removable/insertable form factor
Benefits:
- Wide input range accommodating diverse signal types
- High resolution for accurate and precise measurements
- Flexibility in measuring various analogue signals
- Enhanced functionality with integrated alarm and diagnostics capabilities
- Convenient removable/insertable design for easy installation and maintenance
Applications:
- Industrial automation
- Process control
- Machine control
- Medical equipment
- HVAC
- Building automation
Installation:
Follow the steps below to install the Siemens 6ES7331-7KF02-0AB0 module:
1. Begin by removing the cover of the standard SIMATIC S7-300 PLC rack.
2. Identify an available slot within the rack where the module will be installed.
3. Insert the module into the designated slot.
4. Secure the module in place using the provided screws.
Usage:
To utilize the Siemens 6ES7331-7KF02-0AB0 module effectively, it is necessary to configure it within the PLC software using the programming language specific to the PLC. Once the module is successfully configured, it can be employed to measure analogue signals. The acquired data can then be transmitted to other PLC modules or devices for further processing and analysis.
