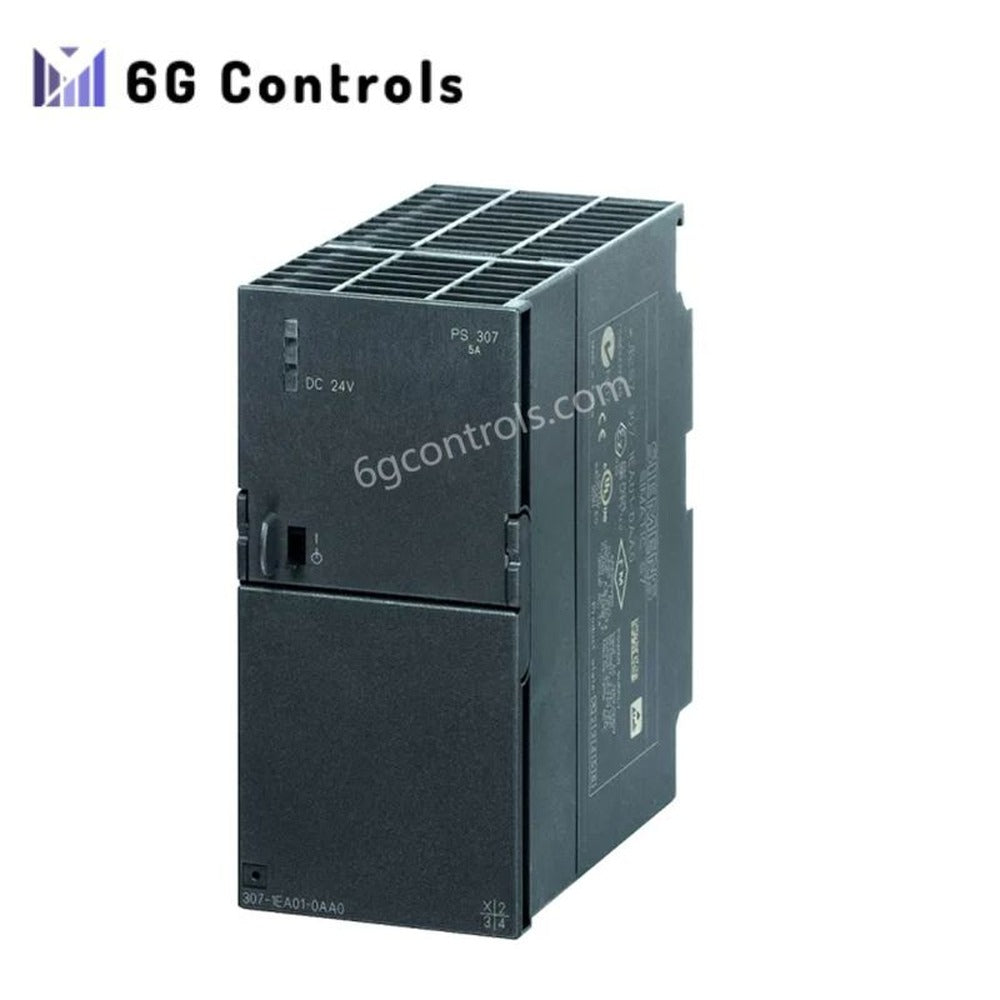

SIEMENS 6ES7307-1EA00-0AA0 Regulated Power Supply Module

Overview

The Siemens 6ES7307-1EA00-0AA0 is a Regulated Power Supply Module designed for the Siemens SIMATIC S7-300 automation systems. It ensures reliable power, enabling stable system operation in industrial settings.

Technical Specifications

• Model Number: 6ES7307-1EA00-0AA0

• Type: Regulated Power Supply Module (PS307)

Input Voltage

• Rated Value: 120/230 V AC (automatic switching)

• Frequency: 50/60 Hz

Output Voltage

• Rated Value: 24 V DC

• Permitted Range: 24 V ± 3%

• Output Current: 5 A

• Power Consumption: 138 W

• Efficiency: 87%

Dimensions and Weight

• Dimensions: 60 mm x 125 mm x 120 mm

• Weight: 0.85 kg

Certifications

• Compliance: SELV (Safety Extra Low Voltage) standards

Input Current

• Rated Input Current (at 120 V AC): 2.3 A (typically)

• Rated Input Current (at 230 V AC): 1.2 A (typically)

Inrush Current

• At 25 °C: Max. 20 A

Output Voltage and Protection

• Rated Output Voltage: 24 V DC

• Permitted Output Voltage Range: 24 V ± 3%

• Rated Output Current: 5 A

• Residual Ripple: Max. 150 mVpp

• Output Short-Circuit Protection: Electronic, non-latching (1.1 to 1.3 x I N)

• Current Limitation:  5.5 – 6.5 A

• Voltage Rise Time: 10 ms
