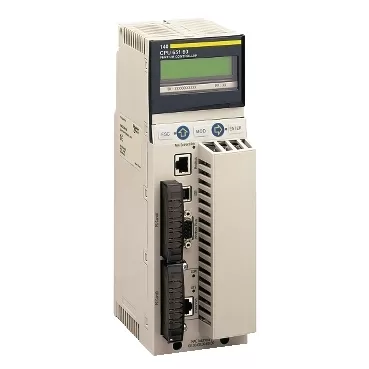

The Schneider 140CPU65150 is a 768 kB RAM, 166 MHz Unity processor that is part of the Modicon Quantum automation platform. It is a versatile and powerful PLC that can be used in a wide variety of applications, including machine control, process automation, and building automation.
Specifications
Main
- Range of Product: Modicon Quantum automation platform
- Product or Component Type: Unity processor
Complementary
- Clock Frequency: 166 MHz
- Number of Slots: 10, 16, 6, 4, 2
- Number of Racks: 2 (local)
- Number of Distributed I/O Station: 63 (1-3 Modbus Plus)
- Number of Remote I/O Station: 31 (2 S908 remote I/O), 31 (2 Ethernet Quantum remote I/O), 16 (2 Ethernet X80 remote I/O)
- Discrete I/O Number:
- 31744 inputs, 31744 outputs (remote)
- 8000 inputs, 8000 outputs (distributed – per network Modbus Plus)
- Unlimited (26 slots max) – local
- Unlimited (31 drops of 28 slots max) – Ethernet remote I/O
- Analogue I/O Number:
- 500 inputs, 500 outputs (distributed – per network Modbus Plus)
- 1984 inputs, 1984 outputs (S908 remote I/O)
- Unlimited (26 slots max) – local
- Unlimited (31 drops of 28 slots max) – Ethernet remote I/O
- Application Specific I/O: Accurate time stamping, Serial link, High-speed interrupt inputs, Counter
- Communication Service: Ethernet router
- Number of Optional Modules: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
- Maximum Number of Connections:
- 1 USB
- 2 AS-Interface (distributed)
- 4 AS-Interface (remote)
- 6 Ethernet TCP/IP (local)
- 6 Modbus Plus (local)
- 6 Profibus DP (local)
- 1 Modbus RS232/485 (Modbus/ASCII)
- Integrated Connection Type:
- 1 Modbus Plus
- 1 Ethernet TCP/IP
- 1 Modbus
- 1 USB
- Checks: Process control
- Memory Description:
- Expandable 7168 kB – program with PCMCIA card
- Expandable 8 MB – file storage with PCMCIA card
- Internal RAM 768 kB
- Switch Function: Key switch memory port on/off
- Application Structure:
- 1 cyclic/periodic master task
- 1 periodic fast task
- 128 I/O interrupt tasks
- 128 interrupt tasks
- 32 timer interrupt tasks
- 4 auxiliary tasks
- Number of Instructions per ms:
- 10.28 Kinst/ms 100% Boolean
- 10.07 Kinst/ms 65% Boolean and 35% numerical
- System Overhead:
- 0.2 ms fast task
- 1 ms master task
- Bus Current Requirement: 2160 mA
Local Signalling
- For Ethernet activity (COM): 1 LED (green)
- For Ethernet collision: 1 LED (red)
Electrical Connection
- 1 female connector SUB-D 9 for connecting to the Modbus Plus network
- 1 connector RJ45 for connecting Ethernet network
- 1 connector RJ45 for connecting Modbus bus
Environment
- Product Certifications: Misc (Marine), UL, CE, CSA, GOST
- Standards: HazLoc
Ordering and Shipping Details
- Category: 18150-QUANTUM CONTROLLERS, HSBY, COMM.
- Discount Schedule: PC21
- GTIN: 3595862066402
- Returnability: No
- Country of Origin: FR
Packing Units
- Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
- Package 1 Height: 4.33 in (11.0 cm)
- Package 1 Width: 7.28 in (18.5 cm)
- Package 1 Length: 12.80 in (32.5 cm)
- Package 1 Weight: 3.16 lb(US) (1.434 kg)
- Unit Type of Package 2: S04
- Number of Units in Package 2: 6
- Package 2 Height: 11.81 in (30.0 cm)
- Package 2 Width: 15.75 in (40.0 cm)
- Package 2 Length: 23.62 in (60.0 cm)
- Package 2 Weight: 19.84 lb(US) (9.0 kg)
Contractual Warranty
- Warranty: 18 months
