Overview

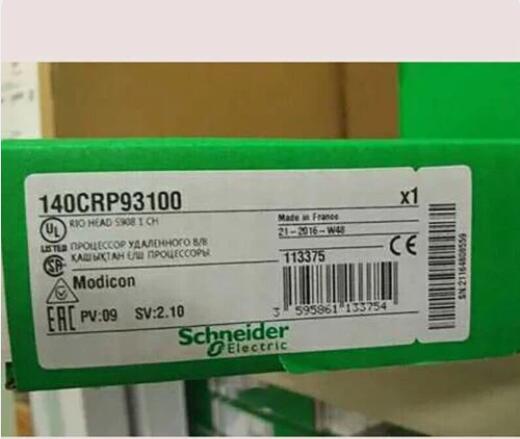

The Schneider 140CRP93100 is a RIO head-end adaptor module for the Modicon Quantum PLC. It provides a single-cable connection to up to 31 remote I/O drops, each of which can support 64 I/O words. The module has a transmission rate of 1544 Mbit/s and a dynamic range of 35 dB. It is also isolated from the PLC, providing a 500 V DC isolation voltage between the coaxial center and ground.
Features
- Single-cable connection to up to 31 remote I/O drops
- 64 I/O words per drop
- Transmission rate of 1544 Mbit/s
- Dynamic range of 35 dB
- 500 V DC isolation voltage
- CE, UL 508, and CUL CSA C22.2 No 142 certifications
- RoHS/REACH compliant
Technical Specifications
| Specification | Value |
|---|---|
| Number of drops | 31 |
| I/O words per drop | 64 |
| Transmission rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC |
| Power dissipation | 3 W per channel |
| Bus current requirement | 600 mA per channel |
| Environment | -40 to 85°C, 0 to 60% RH |
Benefits
- Increased scalability and flexibility
- Improved performance and reliability
- Reduced installation and maintenance costs
- Compliance with industry standards
Applications
- Industrial automation
- Building automation
- Machine control
- Process control
- Data acquisition
