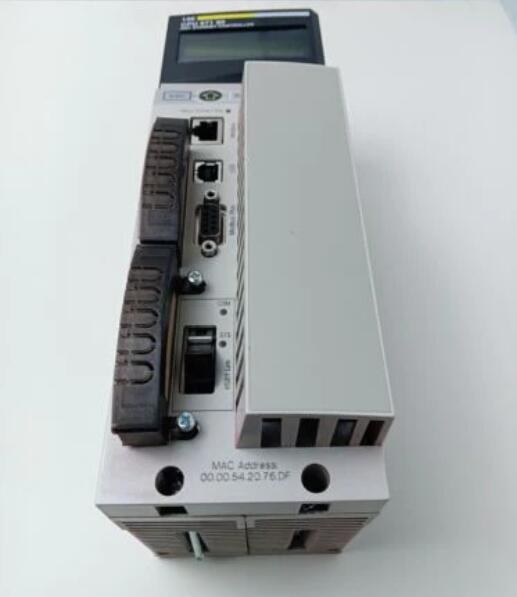

Schneider 140CPU67160 Unity Hot Standby Processo in Stock

The Schneider 140CPU67160, known for its high-availability hot standby capabilities and multimode Ethernet support, featured a robust 266 MHz processor, 1024 kB of RAM, and a 10/100 Mbps Ethernet port.

However, if you’re in search of a hot standby processor with even more advanced capabilities, the Schneider Electric Unity XC200 emerges as a superior choice. This next-generation processor offers an extensive array of features and capabilities, making it a compelling option for critical applications.

Specifications:

Transmission Mode: Multi mode
Clock Frequency: 266 MHz
Number of Slots: 2 (10, 16, 4, 6)
Number of Racks: 2 local racks
Distributed I/O Stations: 63 stations (1 rack, 3 Modbus Plus networks)
Remote I/O Stations: 31 per S908 remote I/O, 31 per Ethernet Quantum remote I/O, 16 per Ethernet X80 remote I/O
Discrete I/O: 31,744 inputs and 31,744 outputs (remote); 8,000 inputs and 8,000 outputs (distributed, per Modbus Plus network); Unlimited for Ethernet remote I/O
Analog I/O: 500 inputs and 500 outputs (distributed, per Modbus Plus network); Unlimited for Ethernet remote I/O; 1,984 inputs and 1,984 outputs (remote)
Application Specific I/O: High-speed interrupt inputs, serial link, accurate time stamping, counter
Communication Service: Ethernet router
Number of Optional Modules: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum Number of Connections: 1 USB, 2 AS-Interface (distributed), 4 AS-Interface (remote), 6 Ethernet TCP/IP (local), 6 Modbus Plus (local), 6 Profibus DP (local), 1 Modbus (RS232/485 Modbus/ASCII)
Integrated Connection Types: 1 Modbus Plus, 1 Modbus, 1 USB, 1 optic fiber with Hot Standby
Memory: Expandable 7,168 kB for program with PCMCIA card, expandable 8 MB for file storage with PCMCIA card, internal RAM of 1,024 kB (512 kB for data)
Switch Function: Key switch memory port on/off
Application Structure: 1 periodic fast task, 128 I/O interrupt tasks, 128 interrupt tasks, 32 timer interrupt tasks, 4 auxiliary tasks, 1 cyclic/periodic master task
Instructions per ms: 10.28 Kinst/ms (100% Boolean), 10.07 Kinst/ms (65% Boolean and 35% numerical)
System Overhead: 0.2 ms for fast task, 1 ms for master task
Bus Current Requirement: 2,500 mA
Local Signaling: 1 green LED for Ethernet activity (COM), 1 red LED for Ethernet collision
Electrical Connections: SUB-D 9 connector for Modbus Plus network, RJ45 connector for Modbus bus, MT-RJ (multimode fiber optic) connector for interconnecting primary and secondary PLCs (up to 4 km)
Product Certifications: CE, UL, Misc (Marine), CSA, GOST, HazLoc
Packaging Units: PCE (1 unit, 11.0 cm x 19.0 cm x 32.5 cm, 1.447 kg), S04 (6 units, 30.0 cm x 40.0 cm x 60.0 cm, 9.629 kg)
Contractual Warranty: 18 months
