Overview

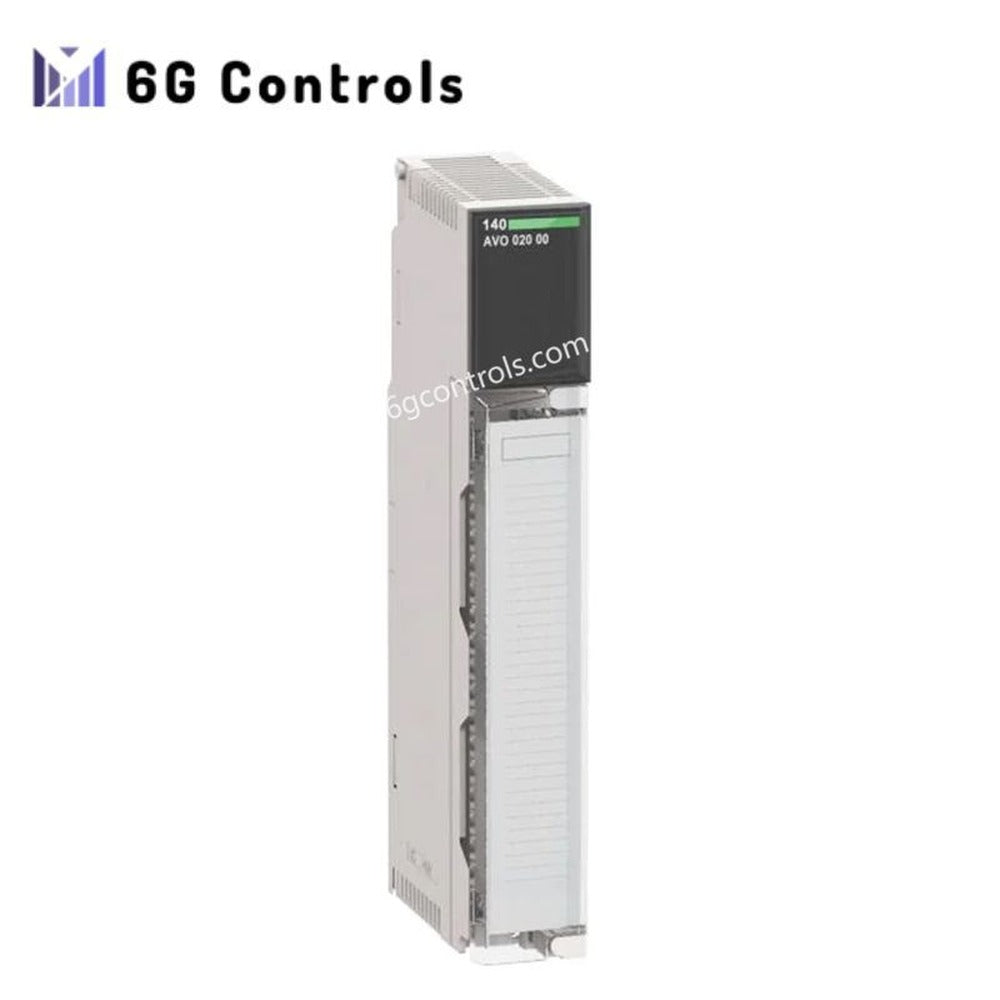

The 140AVO02000 is an Analog Output Module from the Modicon Quantum series, designed for industrial automation applications. It offers reliable and efficient output capabilities for various control systems.
Technical Specifications
- Model Number: 140AVO02000
- Manufacturer: Schneider Electric
- Type: Analog Output Module
- Channels: 4
- Output Voltage Range:
- 0-10 V, ±10 V, 0-5 V, ±5 V
- Output Current Range:
- 0-20 mA, 0-25 mA, -10 to 10 mA
- Resolution: 12 bits
- Accuracy: ±0.15% of full scale at 25°C
- Linearity: ±1 LSB
- Temperature Drift:
- 0.003% of full scale/°C (unipolar)
- 0.004% of full scale/°C (bipolar)
Electrical and Performance Characteristics
- Isolation Voltage:
- 500 V for 1 minute (between channels)
- 780 V for 1 minute (between channels and bus)
- Update Time: 3 ms
- Setting Time: 700 µs to ±0.1% of the final value
- Bus Current Requirement: 700 mA
- Power Dissipation: 4.5 W
- Associated Fuse Rating: 0.063 mA, 3 AG fast blow, 250 V
Indicators and Environmental Specifications
- Local Signaling:
- 1 green LED (for bus communication)
- 1 red LED (for external fault)
- 4 green LEDs (for channel status)
- 4 red LEDs (for channel fault)
- Operating Temperature Range: 0°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 95% without condensation
- Operating Altitude: ≤ 5000 m
Physical Dimensions
- Dimensions: 273.6 mm x 214.1 mm x 59.2 mm
- Weight: 0.75 lbs
