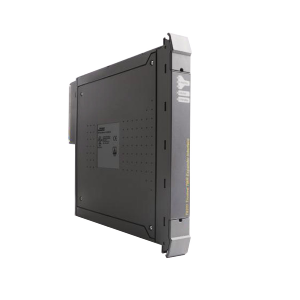

ICS Triplex T8311 Trusted TMR Expander Interface

Introduction

The ICS Triplex T8311  TrustedTM TMR Expander Interface module is an integral part of the TrustedTM Controller Chassis. It serves as the primary interface between the Inter-Module Bus (IMB) within the Controller Chassis and the Expander Bus. The Expander Bus is designed to facilitate the connection of multiple chassis systems using UTP cable connections while retaining the fault-tolerant, high-bandwidth capabilities of the IMB.

This module plays a crucial role in fault containment for the Expander Bus, the module itself, and the IMB located in the Controller Chassis. It ensures that any potential faults are localized, thereby maximizing system availability. The module is designed with fault tolerance using the Hardware Implemented Fault Tolerant (HIFT) architecture. It incorporates comprehensive diagnostics, monitoring, and testing mechanisms that enable rapid fault identification. It supports both hot standby and module spare slot configurations, allowing for automatic and manual repair strategies.

Voltage Range: 20 to 32V dc

Heat Dissipation: 40W

Use with Chassis: T8300

Maximum Load: 40W

Module Clocks: 50MHz

Expander Bus Data Rate: 250Mbps

I/O Interface: Expander Chassis backplane

Operating Temperature: -5°C to 60ºC (13°F to 140°F)

Non-operating Temperature: -25°C to 70ºC (-25°F to 158°F)

Operating Humidity: 5 to 95% RH

Features

• Triple Modular Redundant (TMR), Fault Tolerant (3-2-0) Operation: The module operates on a Triple Modular Redundant (TMR) system, ensuring fault tolerance and redundancy.
• Hardware Implemented Fault Tolerant (HIFT) Architecture: It utilizes dedicated hardware and software tests to quickly identify and respond to faults.
• Automatic Fault Handling: The module handles faults automatically, eliminating nuisance alarms.
• Hot Replacement: It supports hot replacement, enabling modules to be swapped without system downtime.
• Front Panel Indicators: The front panel features indicators that display module health and status, aiding in diagnostics and monitoring.
• T2V Certified IEC 61508 SIL 3: The module is certified to meet safety standards, making it suitable for critical applications with a SIL 3 safety integrity level according to IEC 61508.

For more information, please download and read the PDF: T8311

More high-performance ICS Triplex products:

Q: What is the availability of the ICS Triplex T8311 TMR Expander Interface PLC Module?
A: The ICS Triplex T8311 TMR Expander Interface PLC Module is currently in stock and available for purchase.

Q: Can the ICS Triplex T8311 TMR Expander Interface PLC Module be used with existing PLC systems?
A: Yes, the ICS Triplex T8311 TMR Expander Interface PLC Module is designed to expand the capabilities of existing TMR PLC systems.

Q: What communication interfaces are supported by the ICS Triplex T8311 TMR Expander Interface PLC Module?
A: The ICS Triplex T8311 TMR Expander Interface PLC Module supports communication interfaces such as Ethernet, Modbus, and Profibus.

Q: Does the ICS Triplex T8311 TMR Expander Interface PLC Module provide redundancy and fault tolerance?
A: Yes, the ICS Triplex T8311 TMR Expander Interface PLC Module enhances fault tolerance with its triple modular redundancy (TMR) architecture.

Q: Is the ICS Triplex T8311 TMR Expander Interface PLC Module suitable for critical control systems?
A: Yes, the ICS Triplex T8311 TMR Expander Interface PLC Module ensures safety, reliability, and fault tolerance in critical control systems.
