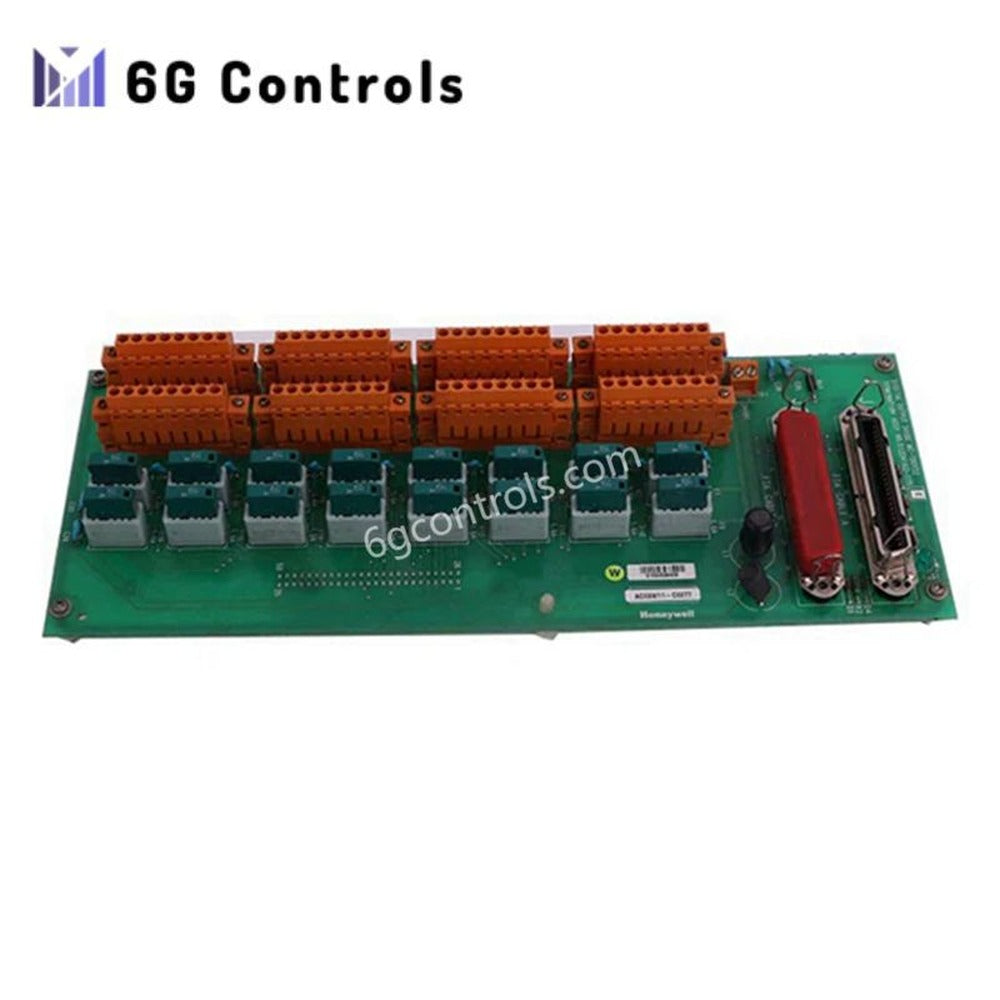

Honeywell MC-TAOY22 51204172-175 Analog Output Module

Overview

The Honeywell MC-TAOY22 (51204172-175) is a high-performance 16-channel analog output module. It is ideal for Honeywell’s Total Process Management (TPM) systems, offering reliable analog output for industrial control applications.

Technical Specifications

Manufacturer: Honeywell
Type: Analog Output Module
Model Number: MC-TAOY22 (51204172-175)
Output Voltage: 0-10 VDC or 4-20 mA
Resolution: 12-bit
Accuracy: ±0.05% FS
Sampling Rate: 100 Hz
Communication Protocol: Modbus RTU
Output Type: 4-20 mA
Output Channels: 16
Output Ripple: 100 mV peak-to-peak at power line frequency, across 250 Ω load
Dimensions: 90 mm x 120 mm x 60 mm
Weight: 0.5 kg
Operating Temperature Range: -40°C to 70°C
