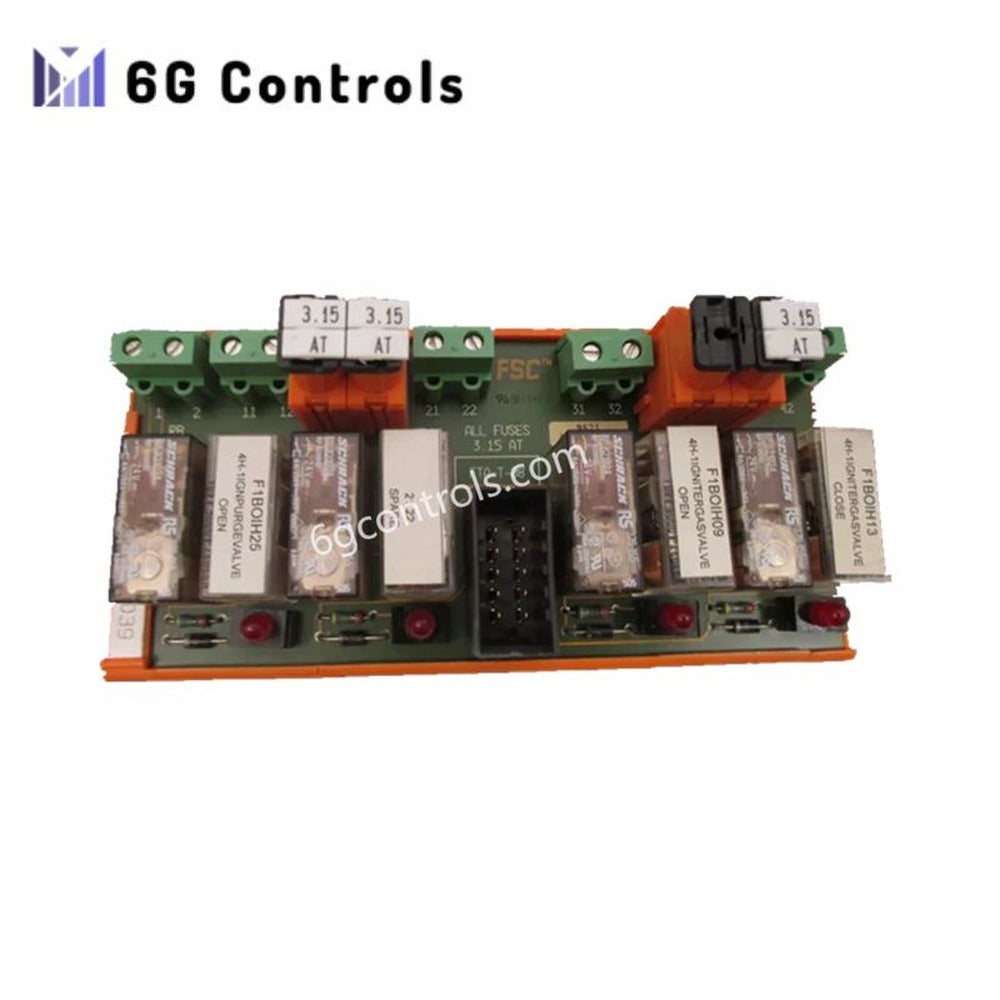

Honeywell FTA-T-04 Digital Output Field Termination Assembly

Overview

The Honeywell FTA-T-04 is a Digital Output Field Termination Assembly (FTA). It connects system interconnection cables (SIC) to external field wiring, ensuring efficient control and communication in industrial automation.

Technical Specifications

• Model Number: FTA-T-04
• Manufacturer: Honeywell
• Type: Digital Output Field Termination Assembly (FTA)
• Number of Channels: 25 channels, organized in five groups of five
• Output Type: Relay Contact

Voltage Rating

• 36 VAC / 50 VDC (IEC 1010, overvoltage category 3)
• 125 VAC / 150 VDC (IEC 1010, overvoltage category 2)

Current Rating

• Max. Continuous Current per Channel: 2 A

Termination Details

• Screw Terminals
• Max. Wire Diameter: 2.5 mm² (AWG 14)
• Strip Length: 7 mm (0.28 in)
• Tightening Torque: 0.5 Nm (0.37 ft-lb)

Mounting

• DIN Rail Mounting
