Overview

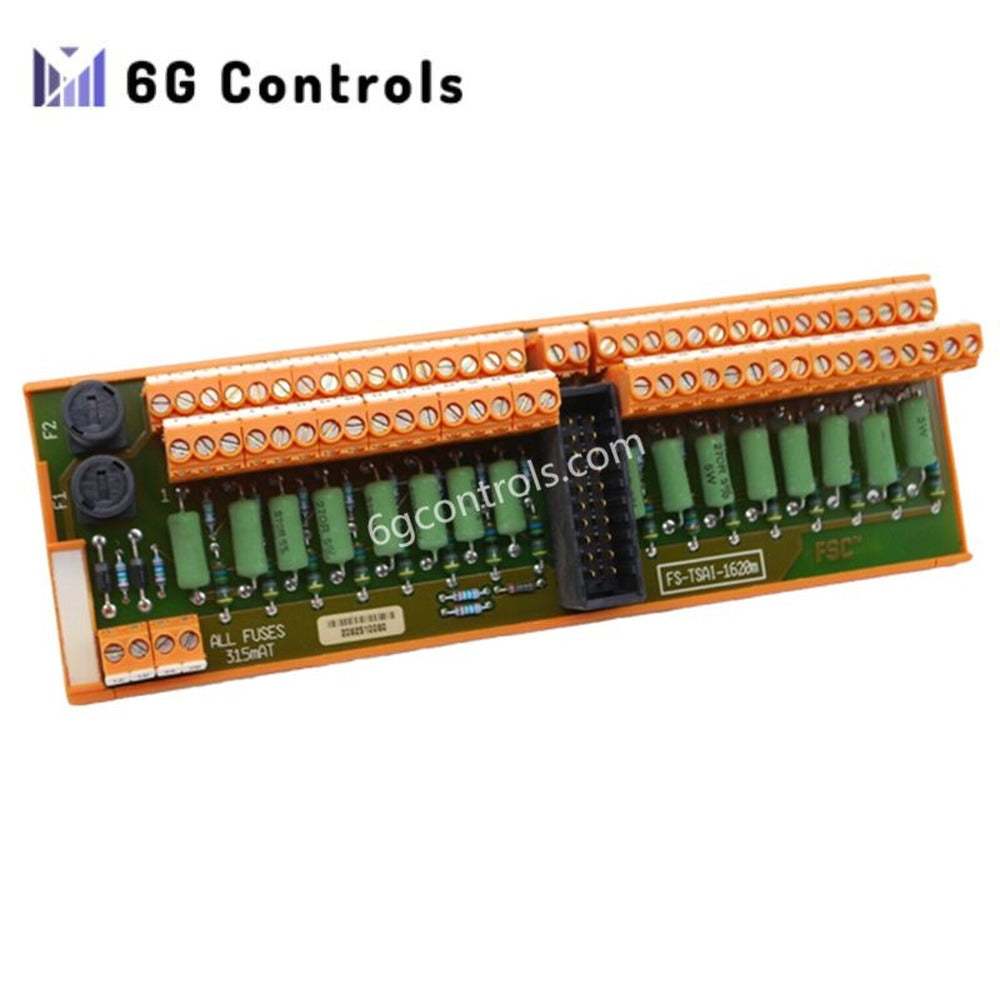

The Honeywell FS-TSAI-1620M is an advanced analog input module designed for industrial automation and control systems. It integrates seamlessly with Honeywell’s FSC (Fail Safe Controller) series, ensuring precise analog signal acquisition. This module is capable of handling both safety-related and general-purpose control tasks. It converts analog input signals from field devices, such as sensors and transmitters, into digital data that can be processed by the control system.
Technical Specifications
- Model Number: FS-TSAI-1620M
- Manufacturer: Honeywell
- Type: Analog Input Module
- Channels: 16 independent channels (divided into 2 groups of 8 with common 0V)
- Input Signal Type: 4-20 mA DC
- Supply Voltage: 24 VDC
- Power Consumption: Low power usage for efficient operation in industrial environments
- Input Current: 0-25 mA
- Input Resistance: 250 Ω (± 1%)
- Output Voltage: 0-4 VDC
- Accuracy: 0.1%
- Fuses: 315 mAT (slow-acting)
- Dimensions: 210 mm x 70 mm x 60 mm
- Weight: 0.20 kg
- Operating Temperature Range: -40°C to +85°C
