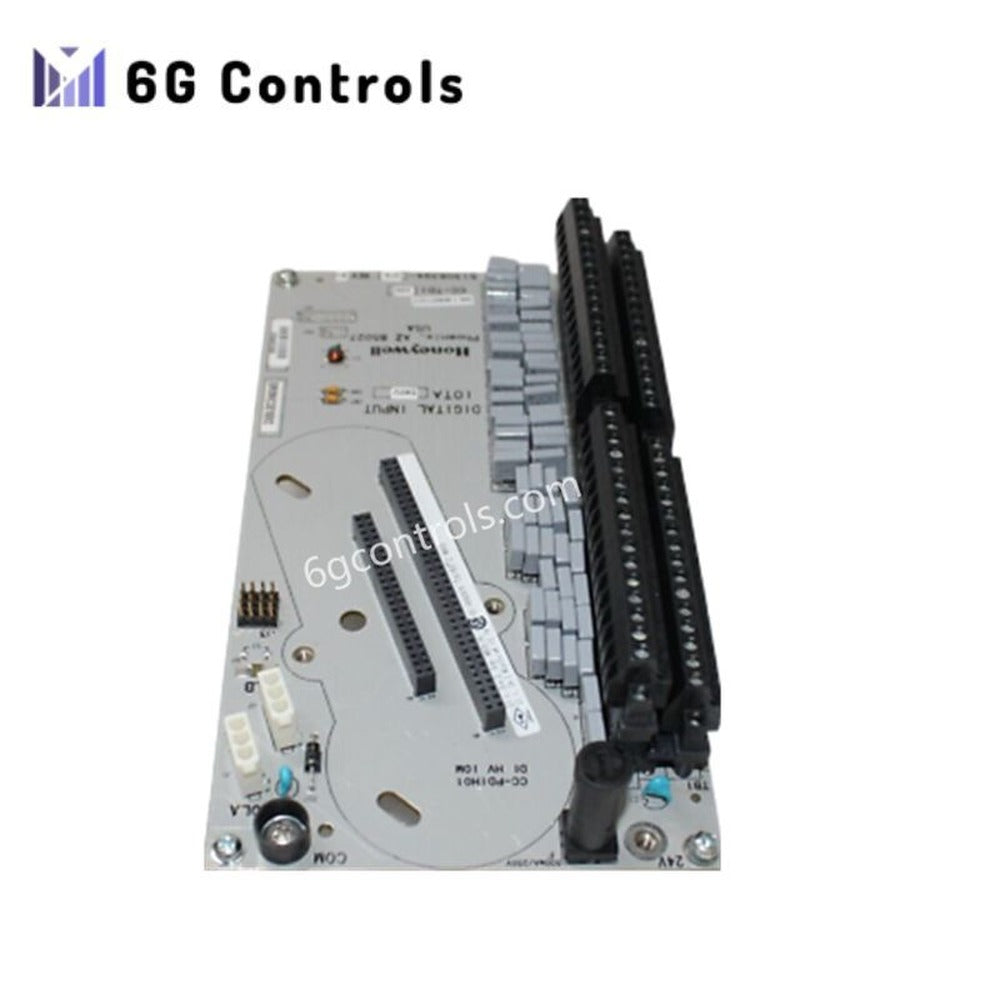

Honeywell CC-TDI220 51308394-275 Digital Input Module

Overview

The Honeywell CC-TDI220 51308394-275 is a robust digital input module. It delivers high-speed signal acquisition with excellent reliability. Engineers use it in power generation, petrochemical plants, and automated systems.

This module integrates seamlessly with Honeywell Experion control platforms. Additionally, it supports a wide input range, making it flexible for various industrial needs.

Technical Specifications

• Model Number: CC-TDI220

• Part Number: 51308394-275

• Input Type: Digital

• Number of Channels: 16 or 32 channels

• Input Voltage Range: 0–24 VDC

• Input Current: 5 mA per channel at 24 VDC

• Nominal Input Voltage: 120 VAC (PROX) or 120 VAC / 125 VDC

• Digital Input Power Range:

  • 90–132 V AC RMS

  • 100–138 V DC

• Sense Current (ON Condition):

  • 7.5 mA RMS at 90V RMS (AC input)

  • 1.0 mA minimum (DC input)

• Isolation Voltage: 1500 V
