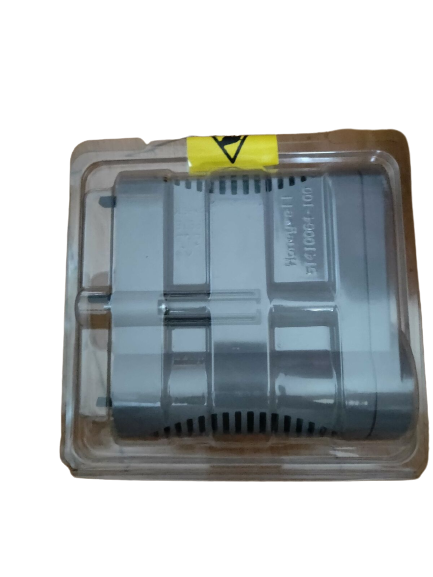

Honeywell CC-PDIS01 Digital Input SOE 24V Module

Overview

The CC-PDIS01 is a 24 VDC, single channel, solid-state, dry-contact input module for use with ControlLogix® and CompactLogix® programmable controllers.
It provides a single isolated digital input for monitoring contact closure or open circuit conditions.
The module has a built-in status LED that indicates the input state.
It is compatible with all ControlLogix and CompactLogix controllers that have an available slot.

Features

Single channel, 24 VDC input
Isolated input
Built-in status LED
Compatible with all ControlLogix and CompactLogix controllers

Technical Specifications

Voltage: 24 VDC
Current: 10 mA
Input impedance: 10 kΩ
Isolation voltage: 3000 VDC
Operating temperature: -25 to 70°C
Storage temperature: -40 to 85°C
