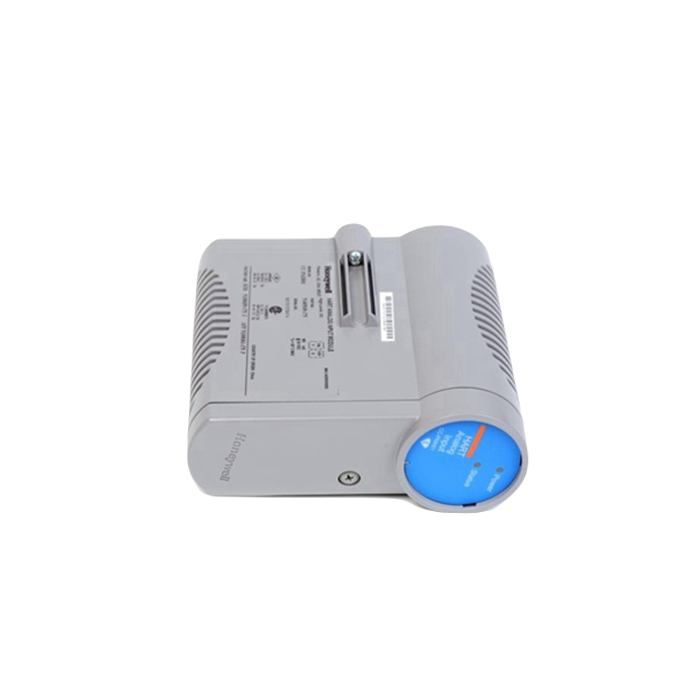

Honeywell CC-PAIH01 High-Level HART Analog Input Module

The Honeywell CC-PAIH01 is a high-level HART analog input module that accepts current or voltage inputs from transmitters and sensing devices. It features extensive self-diagnostics, optional redundancy, open wire detection, and non-incendive field power. The CC-PAIH01 is HART-capable, allowing for fast collection of control variables from multivariable instruments and multiple modems. It also features a fast loop scan and PV protection through an open wire detection diagnostic.

Features

High-level current or voltage inputs
Extensive self-diagnostics
Optional redundancy
Open wire detection
Non-incendive field power
HART-capable
Fast loop scan
PV protection through open wire detection diagnostic

Technical Specifications

Input range: 4 to 20 mA or 0 to 10 VDC
Resolution: 1 mA or 10 mV
Accuracy: ±0.25% of full scale
Repeatability: ±0.05% of full scale
Sampling rate: 100 Hz
Communication protocol: HART
Environmental rating: NEMA 4X/IP66
