Honeywell 10300/1/1 24 Vdc to 5 Vdc/12 A converter in Stock

Description:

The supply voltage of the FSC system is 24 Vdc, which can be powered from the plant’s 24 Vdc supply system with battery back-up. The FSC system uses an internal 5 Vdc to power the FSC modules. The 10300/1/1 DC/DC converter provides the internal 5 Vdc with galvanic isolation between the two supply voltages.

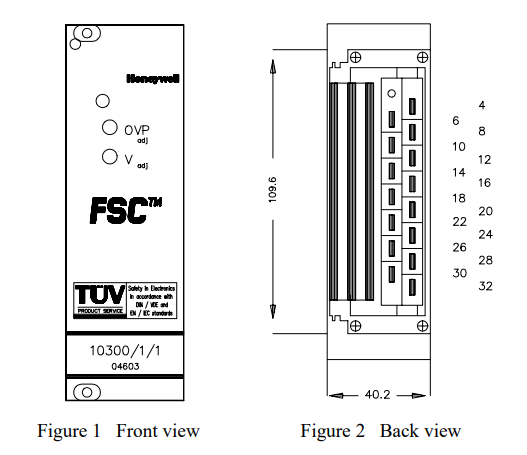

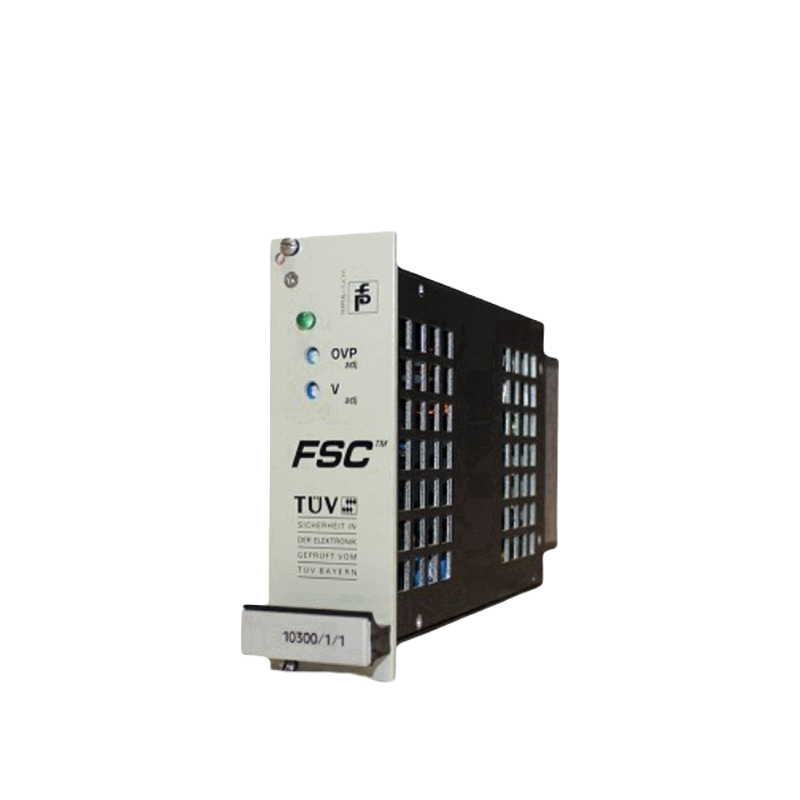

Honeywell 10300/1/1 Figure 1 Front view Figure 2 Back view

Note: Keep 10300/1/1 modules off-line for at least 30 seconds after being on-line. 10300/1/1 modules have an NTC resistor as an inrush current limiter. Replacing (or repowering) the module within 30 seconds after removal (or power-off) may cause a supply voltage dip which may trip the system (because the NTC resistor did not yet cool down sufficiently).

Technical Data:

The 10300/1/1 module specifications are as follows:

General:

Type number: 10300/1/1 04603*
Approvals: CE, TÜV, UL**
Software versions: all
Space requirements: 8 TE, 3 HE (= 8 HP, 3U)

Power:

Power requirements:
- Current < 3.9 A at 24 Vdc
- Voltage 24 Vdc (-15%…+30%)
Inrush current: < 18 A

Environment:

Ambient temperature: 0°C to 60°C (32°F to 140°F) (see derating curve, Figure 3)

Output:

Output voltage: 5 Vdc with overvoltage protection
Ripple content: < 40 mV p-p (at full load)
Output current:
- 12 A at 0°C to 45°C (32°F to 113°F)
- 8 A at 0°C to 60°C (32°F to 140°F)
Hold-up time: ≥ 0 ms
Output voltage setting (V adj): 5.00 Vdc measured across system bus connections
Overvoltage protection (OVP adj): 5.75 Vdc
Efficiency: ≥ 70%

Notes:

- For 10300/1/1 modules without a suffix code, the output LED may remain on in redundant configurations with single I/O, even if the 10300/1/1 is switched off (LED is energized by a redundant 10300/1/1 unit).
** 10300/1/1 modules with suffix code 04602 or less are not CE-approved.
