Description

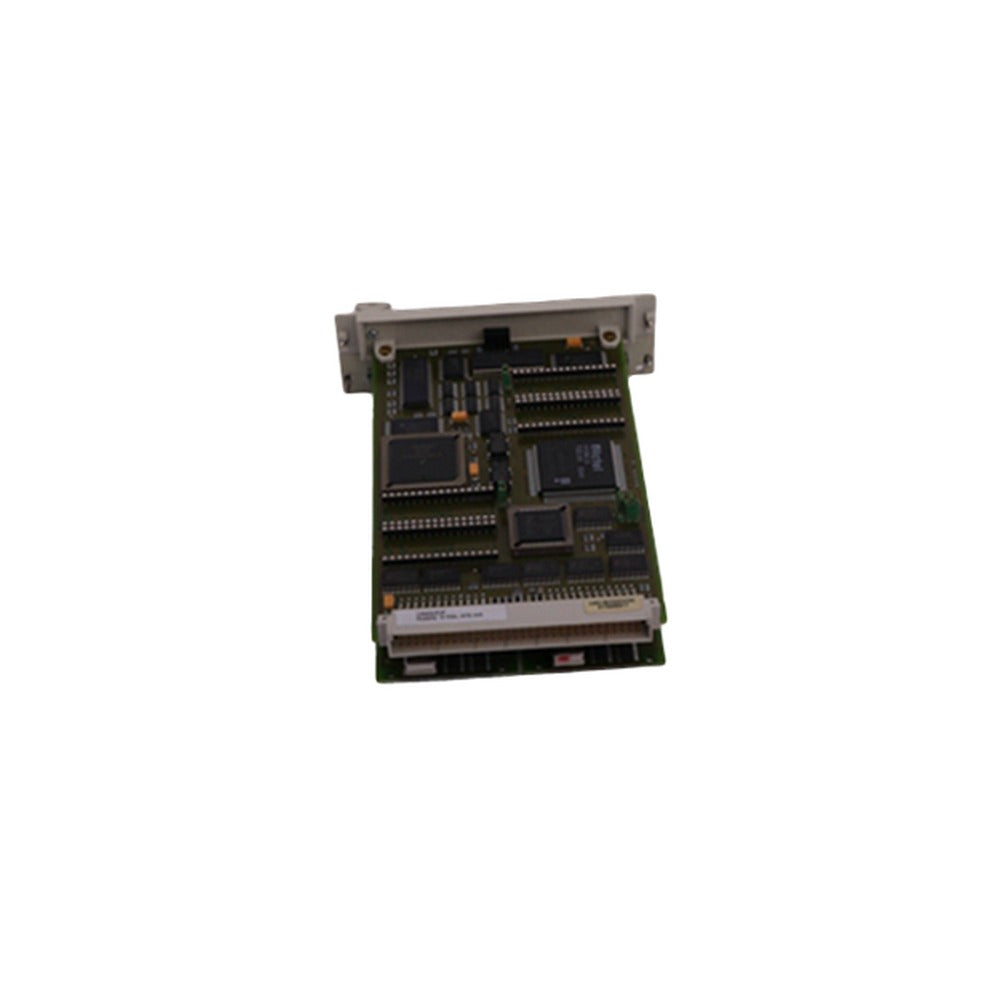

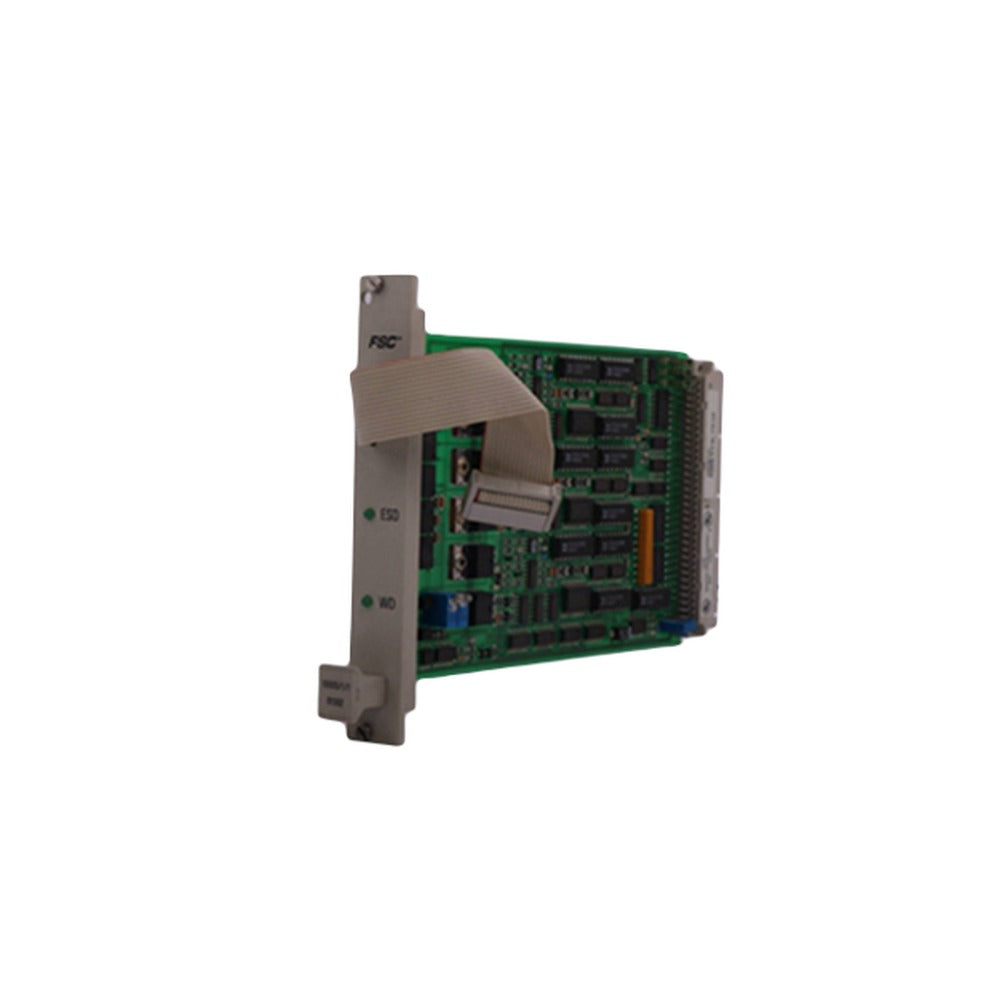

The 10208/2/1 relay output module has ten potential-free relay contact output channels to drive loads up to 70 W. These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids). For inductive loads, a suppression diode must be mounted externally. The outputs are not tested and may therefore not be used for fail-safe applications. The maximum voltage on the relay contacts may be 36 Vdc to meet IEC 1010. The outputs are also controlled by the watchdog. This means that the relays de-energize if the system shuts down and the watchdog switches off.
Technical Data
The 10208/2/1 module is characterized by the following specifications:
- General
- Type Number: 10208/2/1 11800
- Approvals: CE, TÜV, UL
- Software Versions: ≥ 3.00
- Space Requirements: 4 TE, 3 HE (= 4 HP, 3U)
- Power
- Power Requirements:
- 5 Vdc, 25 mA
- 24 Vdc, 120 mA
- Power Requirements:
- Output
- Number of Output Channels: 10
- Output Specification: Relay Contact
- Maximum Current: 2 A
- Maximum Voltage: 30 Vac / 36 Vdc – IEC 1010 (1990), Overvoltage Category 3, Table D.12
- Maximum Switched Power: 100 W / 1000 VA
- Contact Material: Gold Flush Silver-Cadmium Oxide
- WDG Input Current: 4 mA
- Key Coding (See ‘Key Coding’ Data Sheet)
- Module Code:
- Holes A9, C17
- Rack Code:
- Large Pins A9, C17
- Module Code:
For more information, read online or download a PDF: 3-4-6-10-14
