Description:

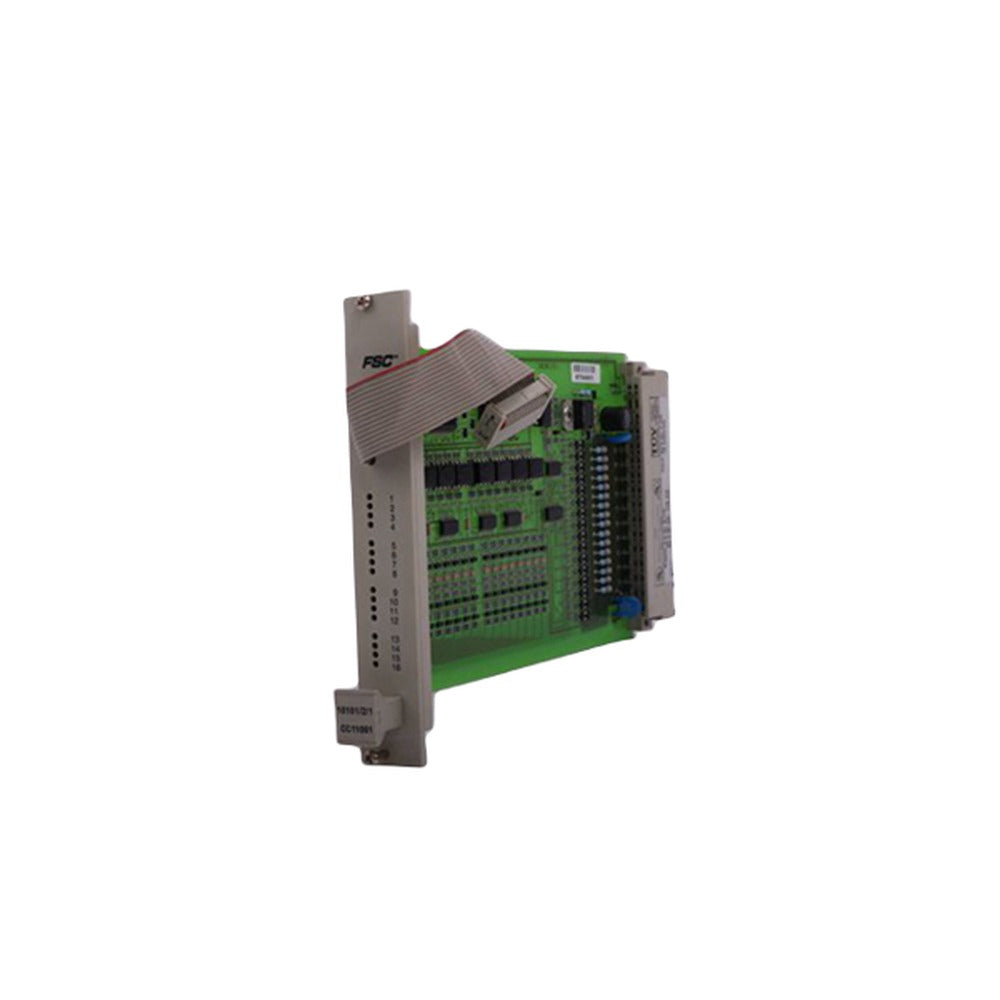

The fail-safe digital output module 10201/2/1 has eight 24 Vdc, 550 mA output channels designed to drive loads up to 13 W. These loads can be either resistive (e.g., lamps) or inductive (e.g., solenoids). Each output includes a suppression diode for inductive loads, making them suitable for fail-safe applications. The outputs, including the suppression diodes, undergo rigorous testing to ensure their reliability.
Within the configured process safety time, the outputs are tested for:
- Ability to de-energize
- Ability to de-energize the group (via secondary means)
- Crosstalk between outputs
- Functioning of the suppression diodes
The outputs are divided into two groups, each consisting of four outputs. Each group has its own secondary means of de-energization, which enhances shutdown selectivity in case of a channel failure. The secondary means of de-energization allows the watchdog and/or the processor to de-energize the outputs independently of the application function’s result.
Technical Data:
The 10201/2/1 module specifications are as follows:
General:
- Type number: 10201/2/1 11501*
- Approvals: CE, TÜV, UL
- Software versions: ≥ 3.00
- Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Power:
- Power requirements:
- 5 Vdc 25 mA
- 24 Vdc internal 25 mA
- 24 Vdc external 70 mA (without output load)
Output:
- Number of output channels: 8
- Output specification: 24 Vdc solid-state source, short-circuit proof
- Maximum current: 550 mA* (Refer to ‘FSC output modules’ data sheet)
- Maximum lamp load: 120 mA (2.9 W)*
- Maximum load capacitance: 1 µF
- Voltage drop: < 2.0 Vdc at 500 mA*
- Off current: < 0.1 mA
- WDG input current: 8 mA
- Key coding (See ‘Key coding’ data sheet)
- Module code:
- Holes A9, C9
- Rack code:
- Large pins A9, C9
- Note: 10201/2/1 modules with suffix code 11500 have a maximum current of at least 450 mA, a maximum lamp load of 100 mA (2.4 W), and a voltage drop of < 2.0 Vdc at 400 mA.
