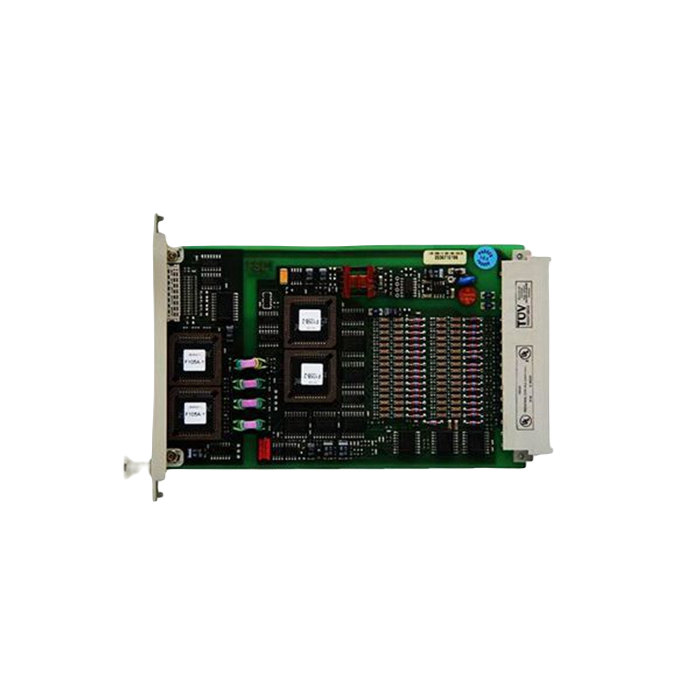

Honeywell 10105/2/1 is a fail-safe high-density analog input module, which belongs to Honeywell FSC series, is designed to process 16 channels and convert field signals for various applications. It provides precise measurements and is designed with safety and reliability in mind.
Key Features:
- Designed for fail-safe analog input with 16 channels.
- Converts field signals from 0-20 mA to a usable level.
- Two conversion methods: Field Termination Assembly Module (FTA-T-14) or Analog Input Conversion Module 10105/A/1 (placed on the programming connector Px on the I/O backplane).
- Type Number: 10105/2/1 16900
- Approvals: CE; TÜV; UL approvals pending
- Safety Class: AK1-6 (AK6 in redundant mode)
- Software Versions: = 500
- Space Requirements: 4 TE, 3 HE (= 4 HP, 3U)
- Power Requirements: 5 Vdc, 35 mA; 24 Vdc, 35 mA
Technical Specifications:
- Number of Input Channels: 16
- Input Range: 0 to 4.1 V
- Input Resistance: > 1 MOhm
- A/D Converter: 12-bit
- A/D Converter Inaccuracy: ± 1 LSB
- Module Inaccuracy: < 0.25%
- Absolute Max. Input Signal: ± 36 Vdc
- Crosstalk Between Channels: > 60 dB
- External Voltage Readback: Range 0 to 4.1 V, input resistance typically 1 MOhm
- Shipping Weight: 1.5 Kg
