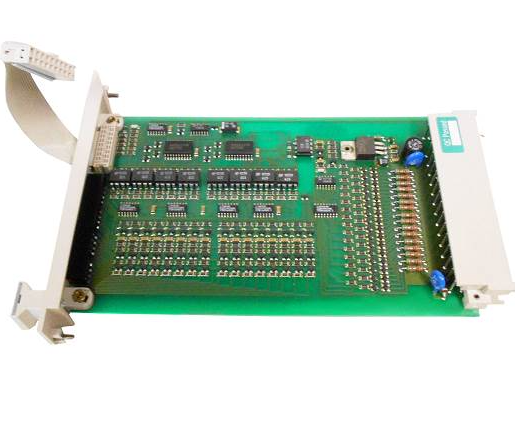

Honeywell 10102/2/1 Fail-safe analog input module (4 channels)

Brand: Honeywell
Model Number: 10102/2/1
Part Number: 1010221
Type: Fail-safe Digital Input Module
Number of Channels: 16
Voltage: 24 VDC
Current: 7 mA at 24 Vdc
Input HIGH: > 15 Vdc
Input LOW: < 9 Vdc (I < 2 mA)
Ripple content (on 5 Vdc): < 0.5 Vp-p (0-360 Hz)
Space requirements: 4 TE, 3 HE (= 4 HP, 3U)
Power requirements: 5 Vdc 8 mA,24 Vdc int.
Approvals: CE, TUV, UL
Software versions: = 3.00

  • Product Details
  • Inquiry

Description:

The fail-safe analog input module 10102/2/1 is equipped with four 0-2 V analog input channels. These analog inputs share a common 0 V connection but are galvanically isolated from the 24 Vdc and 5 Vdc supplies.

The analog inputs can be used actively, with each input having a separate 26 Vdc, > 20 mA short-circuit protected output, or passively, where the supply is directly connected to the transmitter.

The input stage of 10102/2/1 features a high input impedance, allowing the connection of two 10102/2/1 modules in parallel. However, each input requires an analog input converter module 10102/A/ (refer to the 10102/A/ data sheets).

Note: As the inputs require a 10102/A/ converter module, the 10102/2/1 module can only be used in combination with an I/O backplane in the rack.

The analog input module performs scans on the analog inputs, the 26 V output voltages, internal supply voltages, and a reference voltage generated by a D/A converter. This D/A converter generates various reference voltages used to comprehensively test the analog input module. The self-test includes a leakage test of the input filter, which could affect the accuracy of the analog input value.

Within the configured process safety time, the analog inputs are tested for:

  • Absolute accuracy
  • Correct conversion over the full range
  • Crosstalk between inputs
  • Output voltage of the 26 Vdc outputs

The 26 Vdc outputs are generated by the DC/DC converter and stabilized at 26 Vdc, making them independent of the incoming 24 Vdc supply.

Note: The maximum output current is at least 21 mA. If the transmitters require a higher supply current, the input channel must be used in passive mode (= external supply).

Analog Input Ranges for FSC:

Table 1 provides an overview of the analog input ranges for the FSC system and how the 10102/2/1 module can be used for each of these ranges.

Table 1: Overview of analog inputs for FSC

  • 0(4)-20 mA Internal power: 10102/2/1 + 10102/A/1
  • 0(4)-20 mA External power: 10102/2/1 + 10102/A/2
  • 0(1)-5 V External power: 10102/2/1 + 10102/A/3
  • 0(2)-10 V External power: 10102/2/1 + 10102/A/4
  • Loop-monitored digital input: 10102/2/1 + 10102/A/5

Other analog input signals such as thermocouples, PT-100, etc., can only be used after conversion to one of the analog input ranges that the FSC system can handle.

Technical Data:

The 10102/2/1 module specifications include:

  • General Type number: 10102/2/1 11301*
  • Approvals: CE, TÜV, UL
  • Software versions: ≥ 3.00
  • Space requirements: 4 TE, 3 HE (= 4 HP, 3U)

Power:

  • Power requirements: 5 Vdc 30 mA
  • 24 Vdc 175 mA + 25 mA for each active input

Input:

  • Number of input channels: 4
  • Input specification (V): 0-2 Vdc
  • Input resistance: > 100 kOhm
  • Loop powering: 26 Vdc (±1 V for 0.2 mA < I < 20 mA), short-circuit protected
  • Loop current limit: > 21 mA solid-state
  • A/D converter: 12-bit
  • Inaccuracy: ≤ 0.75%
  • Absolute max. input signal: ± 5 Vdc

Key Coding: Refer to the ‘Key Coding’ data sheet for details on key coding.

Module Connector Code:

  • Holes A5, C17

Rack Connector Code:

  • Large pins A5, C17

Notes: 10102/2/1 modules with suffix code 11301 have improved EMC behavior.
