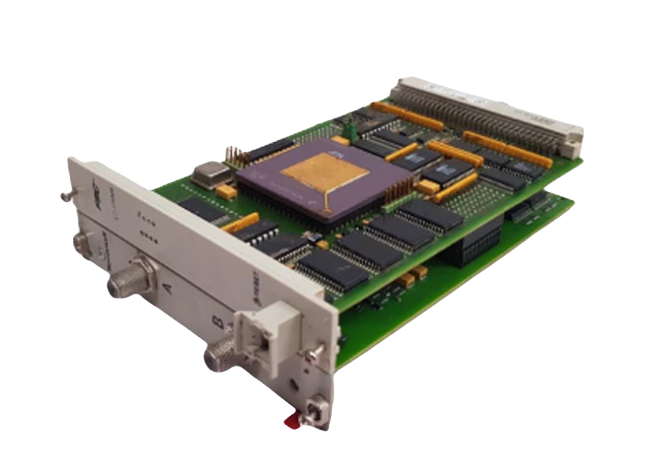

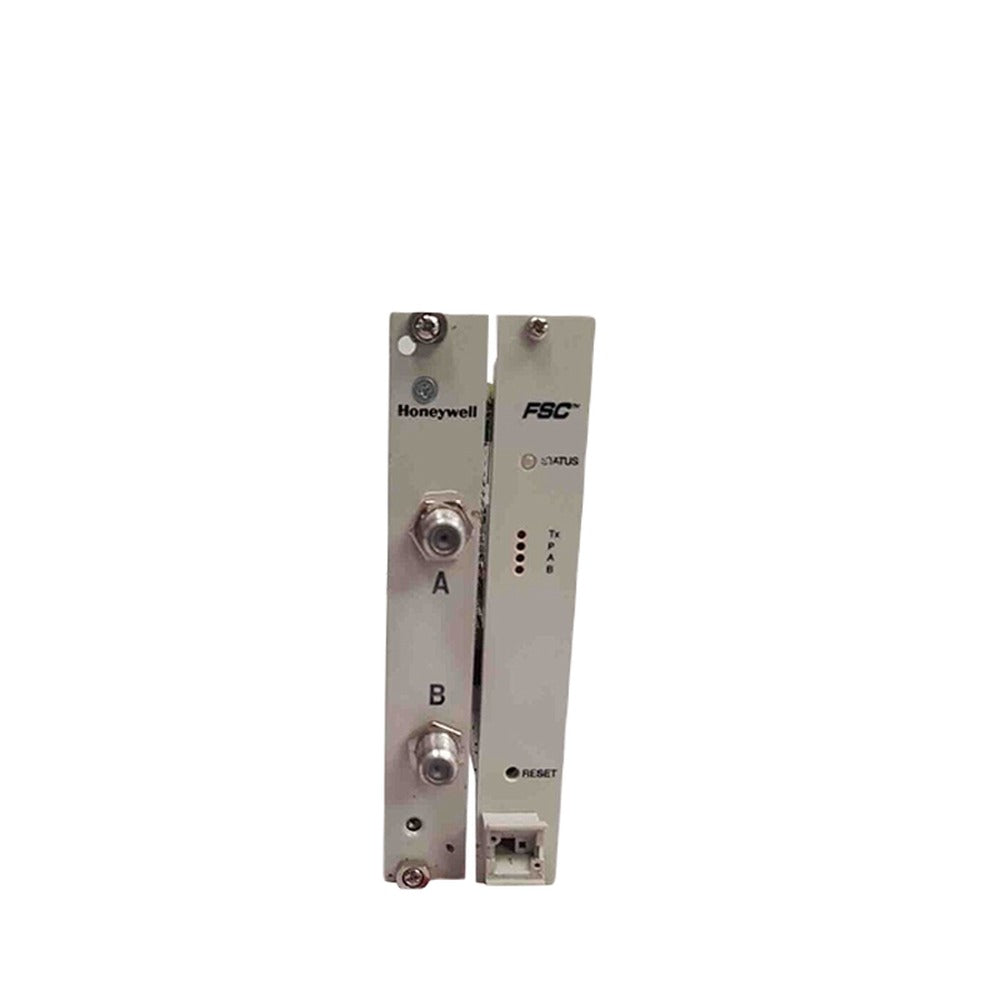

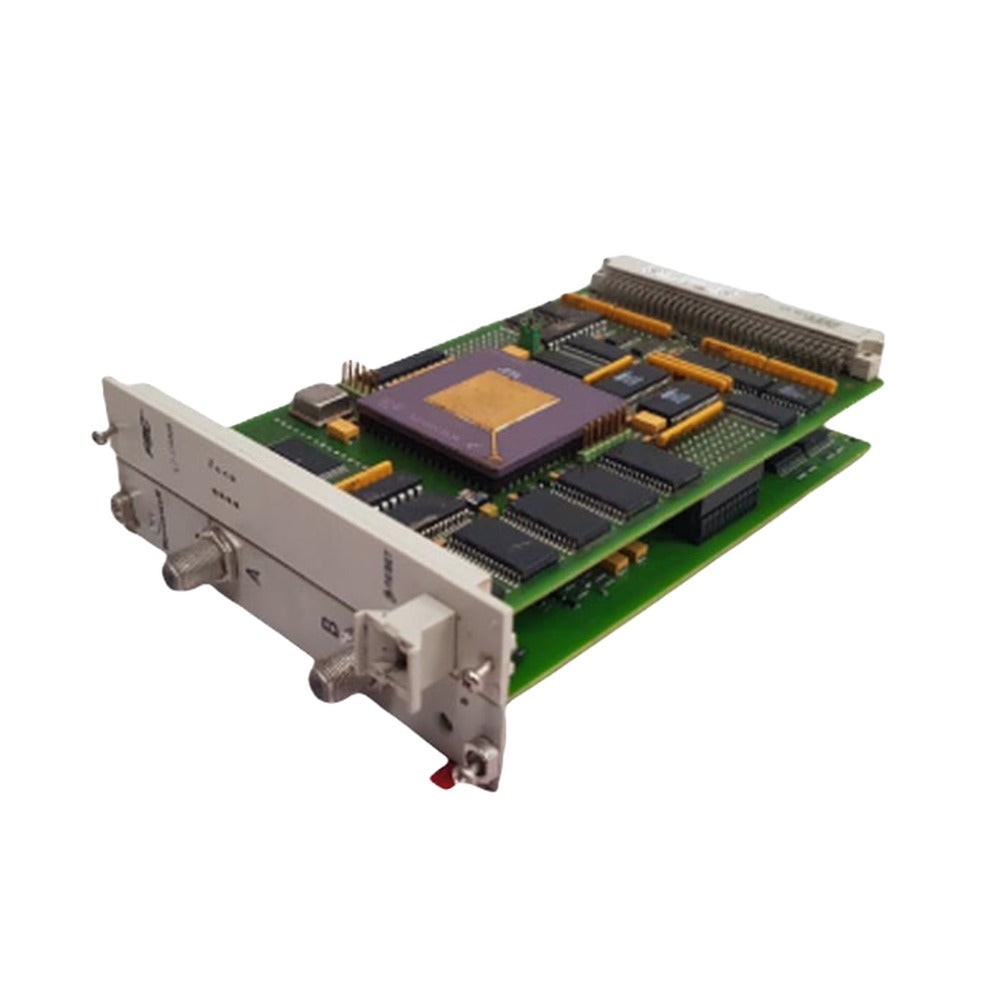

Honeywell 10008/2/U FSC-SMM Communication Module High Quality

Description

The 10008/2/U communication module is used for communication with the Honeywell TotalPlant Solution (TPS) System, via the Universal Control Network (UCN).

The module is placed in the Central Part of the FSC system, and consists of:
• a Motorola 68360 Quad Integrated Communication Controller (running on 25 MHz),
• EPROM (4 Mbit) for the FSC firmware program (see Figure 2),
• local RAM (16 Mbit with parity) for the application-specific data,
• shared RAM (2 Mbit) for all data exchange between this module and the FSC control processor,
• EEPROM (1 kbit) for storing critical configuration data,
• a Motorola 68824 token bus controller (running on 10 MHz),
• a Motorola 68194 carrierband modem, and
• an isolated redundant communication link.

Technical data

The 10008/2/U module has the following specifications:

General

• Type number: 10008/2/U 10101
• Approvals: CE, TÜV, UL
• FSC software version: ≥ 400
• Space requirements: 8 TE, 3 HE (= 8 HP, 3U)

Power

• Power requirements: 5 Vdc 2 A
• Ripple content: < 50 mV p-p

Note: Do not remove or replace this module while the power to its Central Part is on.

More information about the 10201/2/1 modules is available for download or online viewing in PDF format ：3-4-6-10-14
