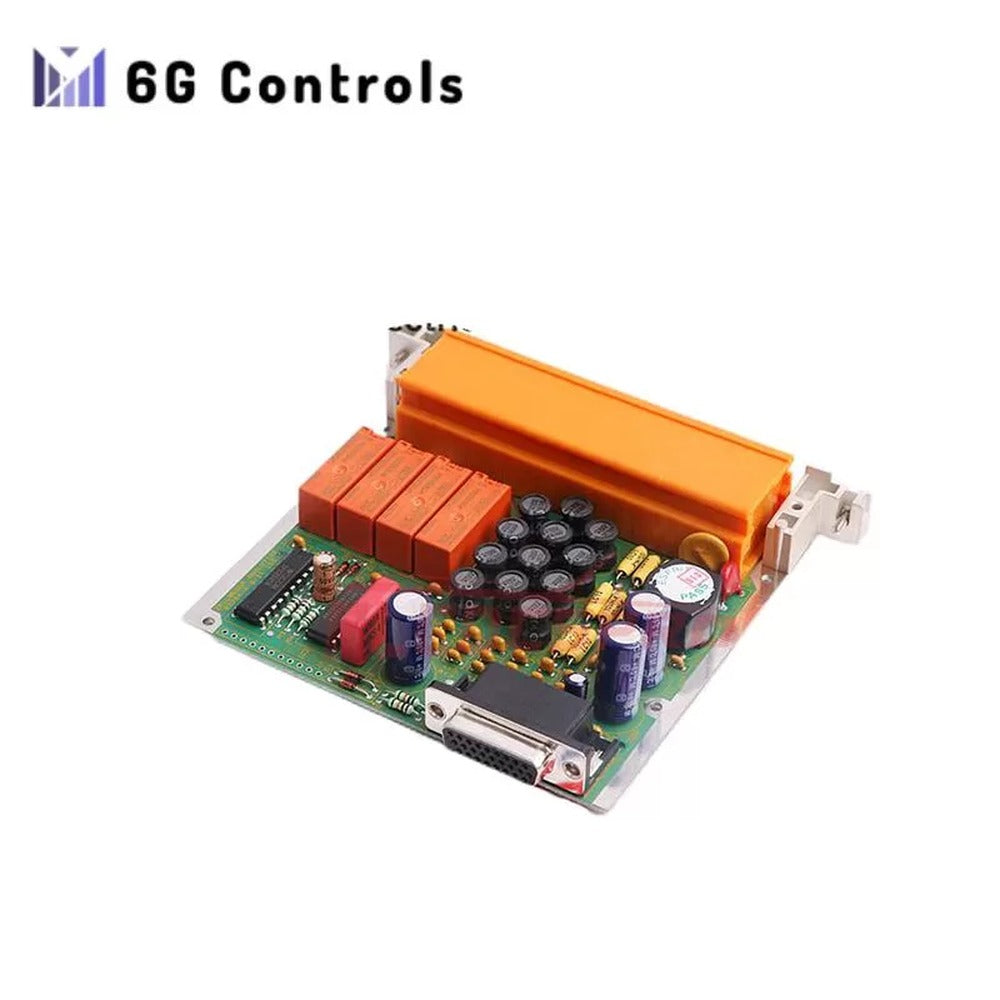

HONEYWELL 05704-A-0121 05704-A-0131 Relay Interface Assembly

Overview

The Honeywell 05704-A-0121/05704-A-0131 is a relay interface assembly providing a compact, economical solution for interfacing gas detectors with control systems. It is designed for use with Honeywell Analytics’ System 57 gas detection system, yet it can also work with other systems that have compatible signal levels.

Relay Configuration

The relay interface assembly has 16 relays. You can configure them as either Single Pole, Normally Open (SPNO) or Single Pole, Single Throw (SPST). The gas detectors activate the relays, which control various external devices like alarms, ventilation systems, and shut-off valves.

Enclosure and Power

Housed in a rugged, NEMA 4X-rated enclosure, the relay interface assembly is suitable for indoor or outdoor use. It operates on an external 24 VDC power supply.

Key Features

16 relays (12 SPNO, 4 SPST)
Compatibility with Honeywell Analytics’ System 57 gas detection system
Usable with other compatible gas detection systems
Rugged, NEMA 4X-rated enclosure
External 24 VDC power supply

Applications

Industrial gas detection
Commercial gas detection
Institutional gas detection
Residential gas detection

Specifications

Input signal: 4-20 mA
Output signal: Relay contacts
Number of relays: 16
Relay configuration: SPNO or SPST
Power supply: 24 VDC
Enclosure rating: NEMA 4X
Operating temperature: -40 to 80°C (-40 to 176°F)
Humidity: 0 to 95% RH (non-condensing)
