Overview

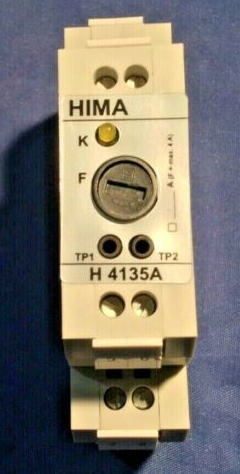

The HIMA H4135A Safety Relay Module is a SIL3/Category 4 safety-related amplifier that provides safe isolation between the input and output circuits. It is designed for use in industrial automation applications where safety is critical.
Features
- SIL3/Category 4 safety-rated
- Safe isolation between input and output circuits
- 250 VAC/220 VDC switching voltage
- 2A output current
- Test socket for offline proof testing
- DIN rail mounting
Technical Specifications
Specification | Value |
---|---|
Switching Voltage | 250 VAC/220 VDC |
Output Current | 2A |
Isolation Resistance | 1000 Mohms |
Safe Operating Temperature | -25 to 70°C |
Dimensions | 90 x 90 x 60 mm |
Weight | 0.2 kg |
Benefits
- Provides high levels of safety for industrial automation applications
- Safe isolation between input and output circuits
- Easy to install and use
- Meets international safety standards
Applications
- Machine guarding
- Process control
- Lifting and hoisting
- Material handling
- Other safety-critical applications
