Overview:

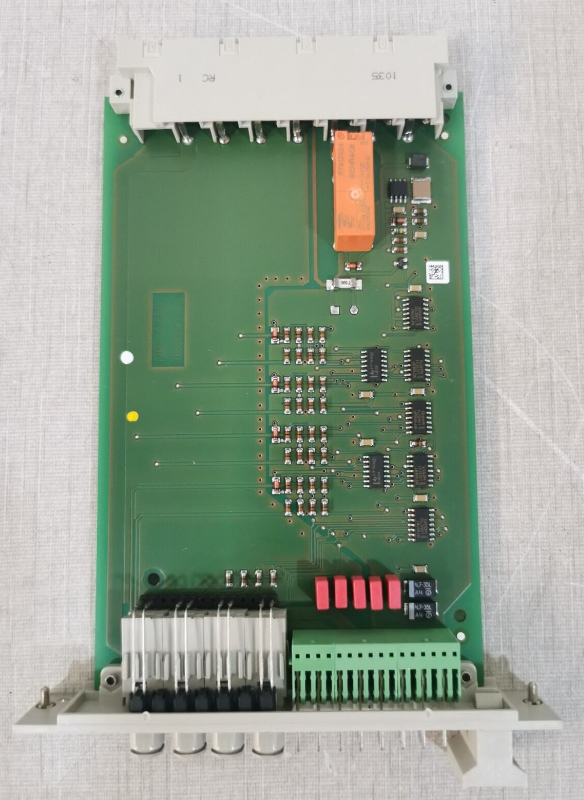

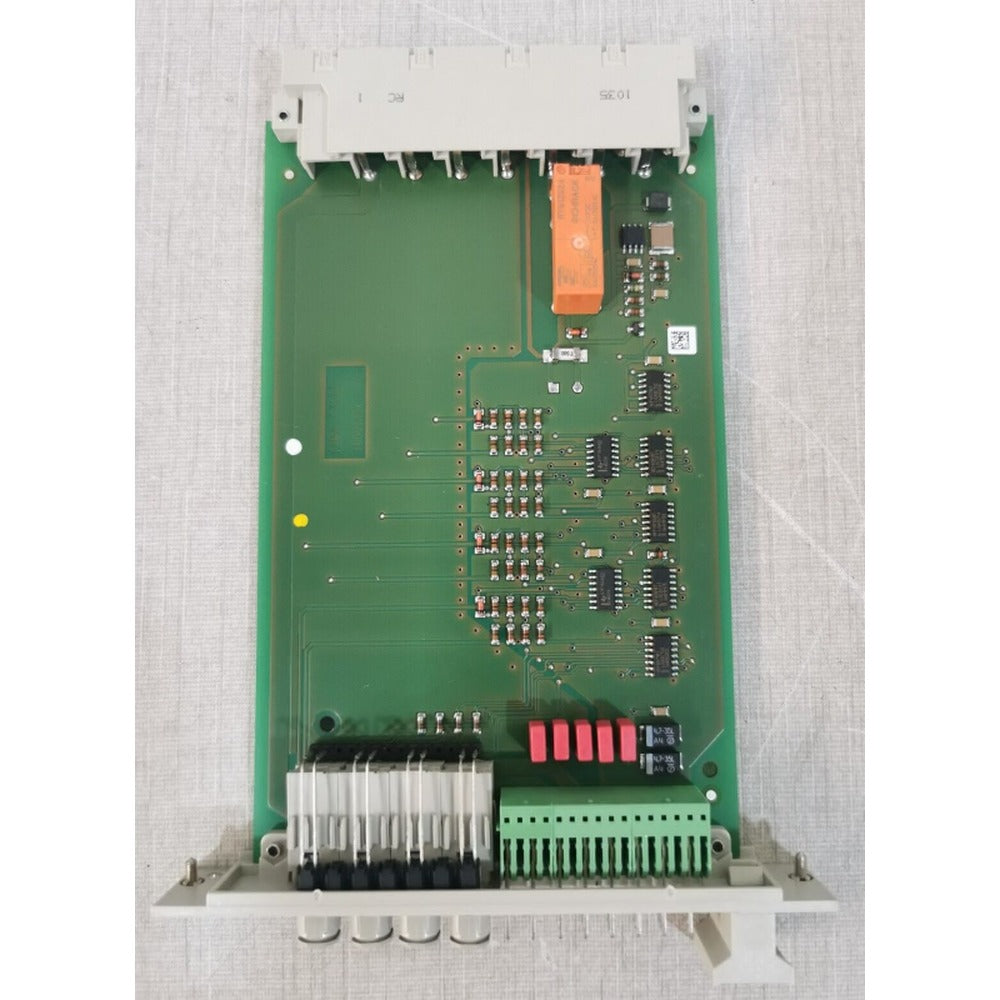

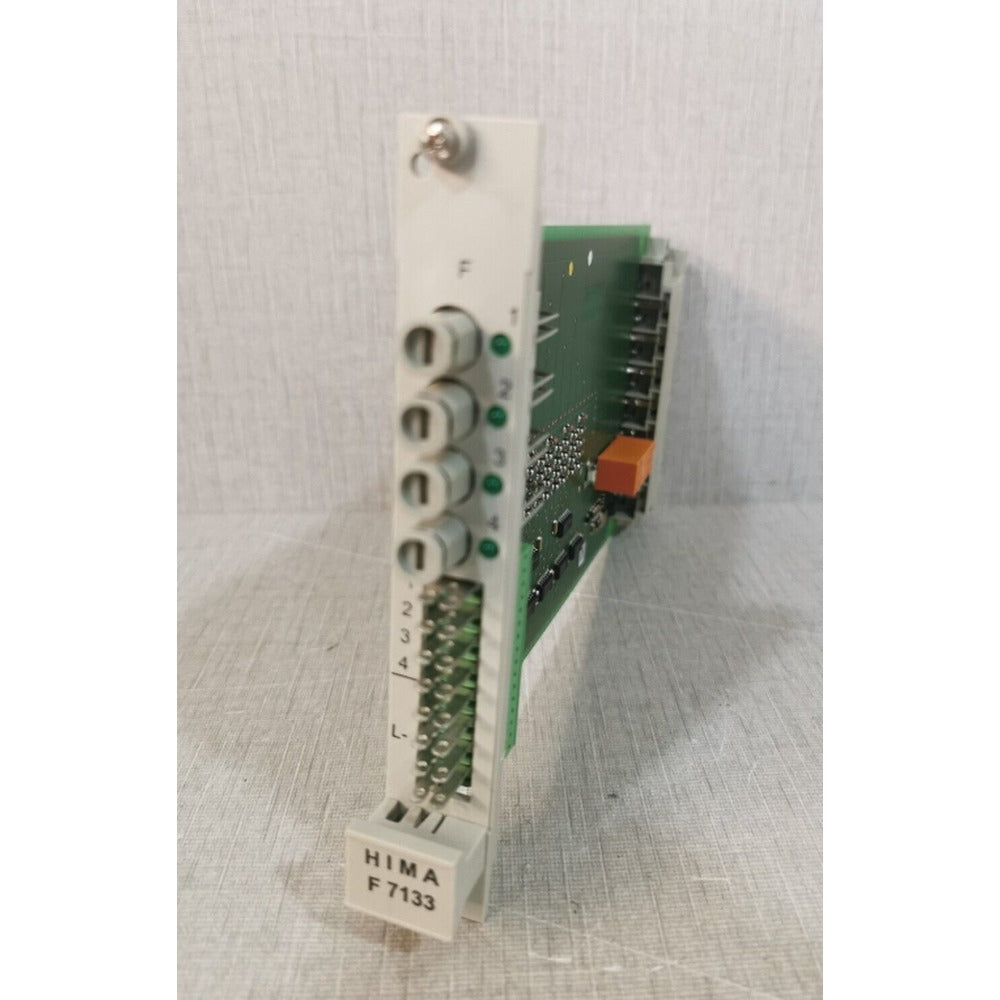

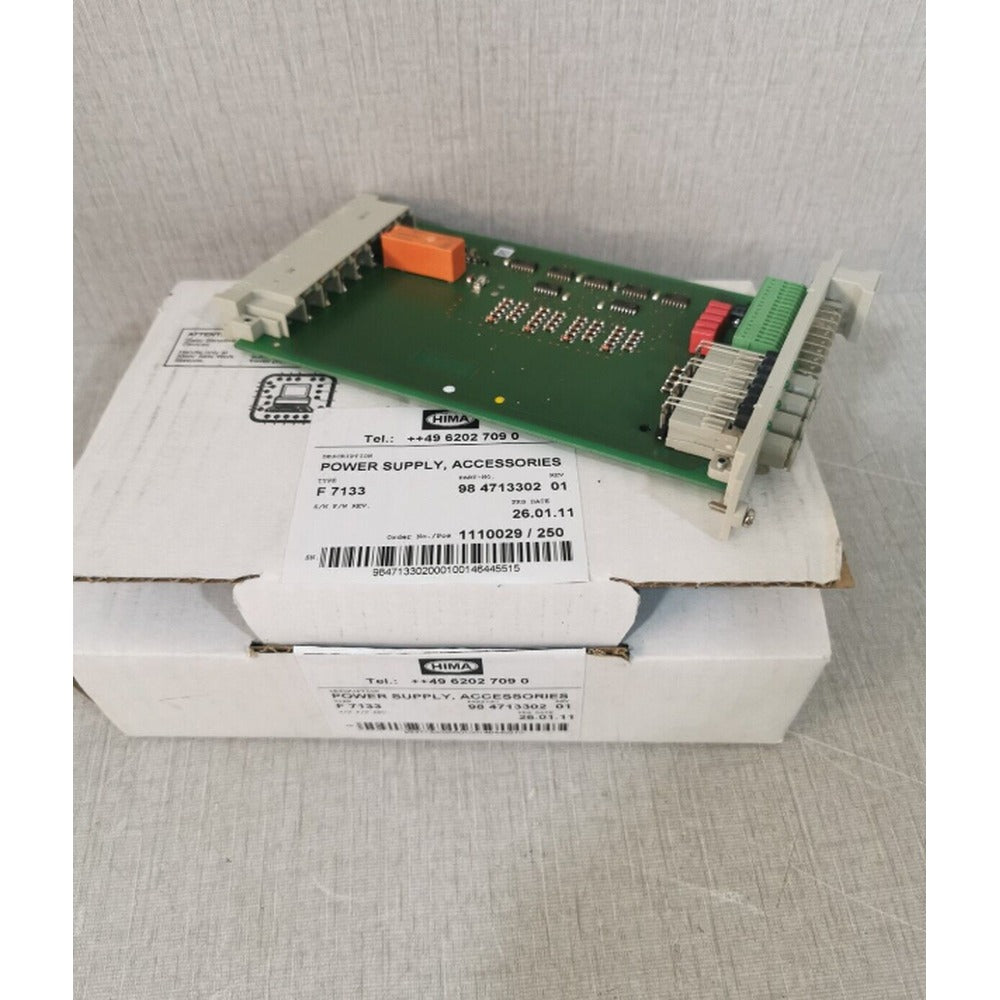

HIMA F7133 is a 4-channel power distribution module that provides 24 V DC power to the IO module and sensor contacts. It has four fuses to protect each channel from overcurrent, and a relay contact to indicate fault conditions. The module is also equipped with indicator lights to indicate the status of each channel.
Features:
- 4-channel power distribution
- 24 V DC output
- Four fuses per channel
- Relay contact for fault indication
- LEDs for channel status
Technical Specifications:
| Specification | Value |
|---|---|
| Input voltage | 24 V DC |
| Output voltage | 24 V DC |
| Output current | 4 A per channel |
| Fuse rating | 4 A slow blow |
| Switching time | 100 ms |
| Load ability of the relay contacts | 30 V/4 A (continuous load) |
| Residual voltage in case of fuse tripped | 0 V |
| Residual current in case of fuse tripped | 0 mA |
| Residual voltage in case missing supply | Max. 3 V |
| Residual current in case missing supply | < 1 mA |
| Space requirement | 4 TE |
| Operating data | 24 V DC : 60 mA |
Benefits:
- Provides reliable power to IO modules and sensor contacts
- Protects against overcurrent
- Indicates fault conditions
- Easy to install and use
Applications:
- Industrial automation
- Building automation
- Medical equipment
- Test and measurement
