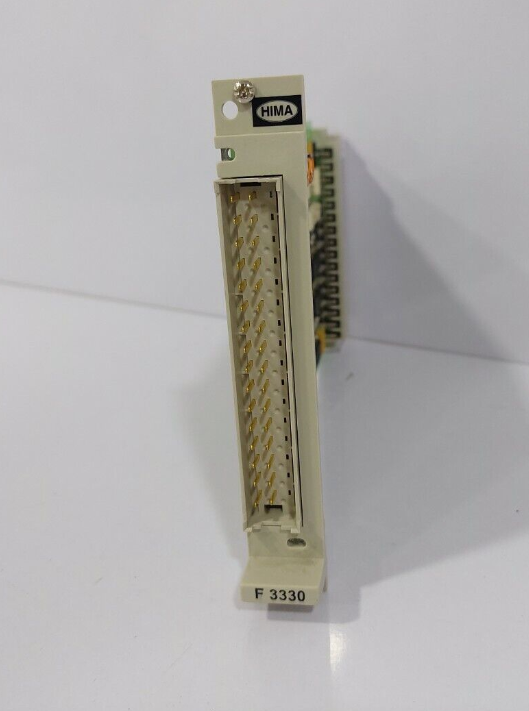

HIMA F3330 Digital Output Module bottom price and original

Brand: HIMA

Model Number: F3330

Type: Digital output module

Product Origin: China

Payment: T/T, Western Union, Credit Card

Dimensions: 4 TE (22.9 x 72.5 mm)

Weight: 0.2 kg

Certificate: SIL2/PLd

Warranty: 2 years

  • Product Details
  • Inquiry

The HIMA F3330 Digital Output Module is a reliable and high-performance module designed for industrial automation systems.

Features

  • Short circuit proof
  • Internal voltage drop of max. 2 V at 500 mA load
  • Admissible line resistance of max. 11 Ohm
  • Undervoltage tripping at ≤ 16 V
  • Current input WD of max. 30 mA
  • Duration of the test signal of max. 200 µs

Technical Specifications

Specification Value
Number of channels 8
Current per channel 500 mA
Voltage 5 V DC or 24 V DC
Size 4 TE
Weight 0.2 kg

Benefits

  • Safety-related operation
  • Small footprint
  • DIN rail-mountable
  • Short circuit proof
  • Wide voltage range

Applications

  • Process control
  • Machine safety
  • Building automation
  • Medical devices

Price

  • Bottom price: USD2,167.00
  • Retail price: USD2,492.00

PS:For reference only, welcome online inquiry if necessary
