Overview

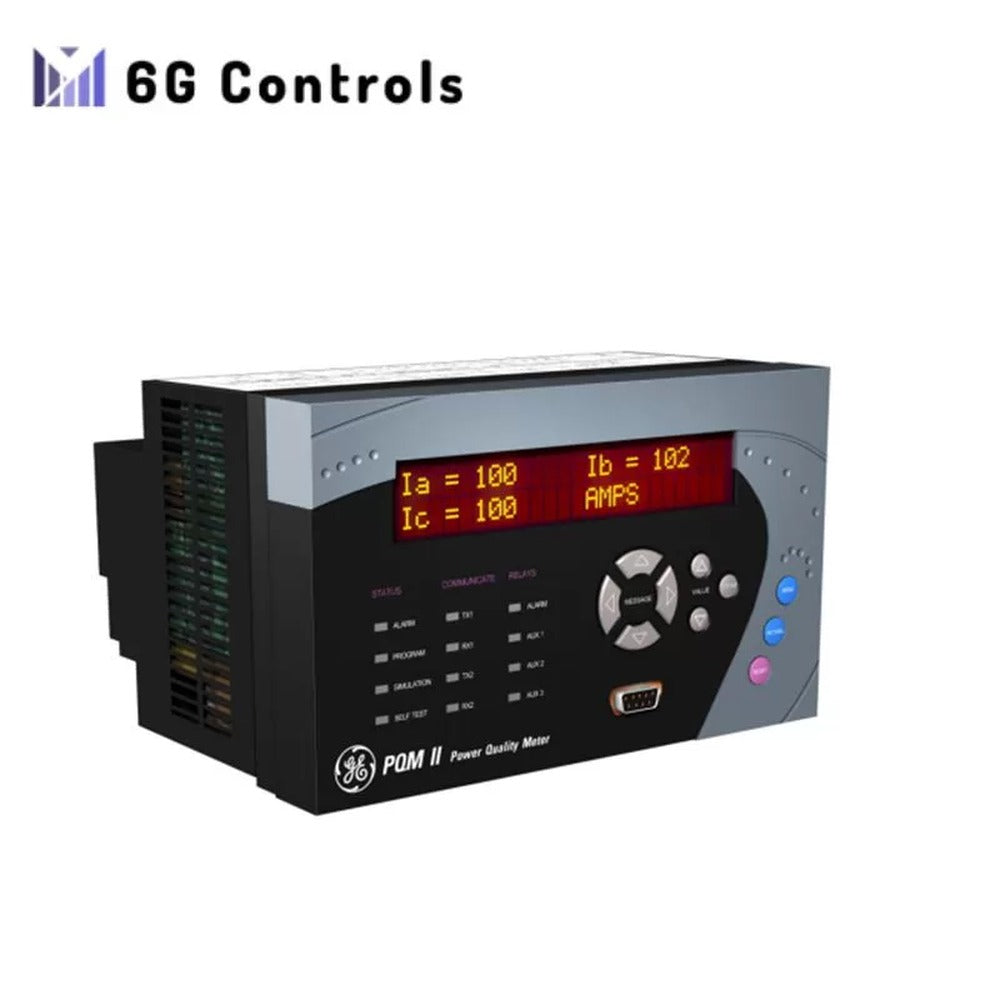

The GE Multilin PQM II monitors and controls electrical power systems. It is ideal for large-scale installations like substations and industrial facilities.
Key Features and Capabilities
- Comprehensive Power Quality Monitoring: Measures voltage, current, power (various types), energy consumption, power factor, and frequency.
- Control Functions: Allows customizable control actions based on measured values, such as load shedding, power factor correction, and alarms.
- Communication Flexibility: Offers multiple communication ports (RS-485, RS-232) to integrate with other systems.
- Harmonic Analysis: Identifies and analyzes harmonic distortions in the power system to prevent equipment damage.
- Data Logging and Analysis: Records data for later analysis to troubleshoot power quality issues.
Feature Highlights
- Monitoring: A, V, VA, W, var, kWh, kvarh, kVAh, PF, Hz
- Demand Metering: W, var, A, VA
- Setpoints for Alarm or Control: Unbalance, frequency, power factor, voltage, and current
- Output Relays: Four output relays for flexible control configuration
- Switch Inputs: Four switch inputs
- Analog Outputs: Four isolated analog outputs replace transducers for PLC interface
- Analog Input: One 4 to 20 mA analog input
- Communications: Modbus communications
- COM Ports: Three COM ports (two rear RS485 ports and one front RS232 port)
- Harmonic Analysis: For power quality review and problem correction
- Display and Keypad: 40-character display and keypad for local programming
- Software: No-charge EnerVista PQM Setup Software
- Simulation Mode: For testing and training
- Design: Compact design for panel mount
- Control Power: AC/DC control power
Applications of the PQM II
- Distribution Feeders: Metering of distribution feeders
- Transformers: Monitoring transformers
- Generators: Metering and control of generators
- Capacitor Banks: Monitoring capacitor banks
- Motors: Control and metering of motors
- Voltage Systems: Medium and low voltage three-phase systems
- Installations: Commercial, industrial, utility, large-scale fixed installations
- Load Shedding: Flexible control for demand load shedding
- Power Factor: Monitoring and control of power factor
- Power Quality Analysis: Comprehensive power quality analysis
- System Debugging: Useful for system debugging
