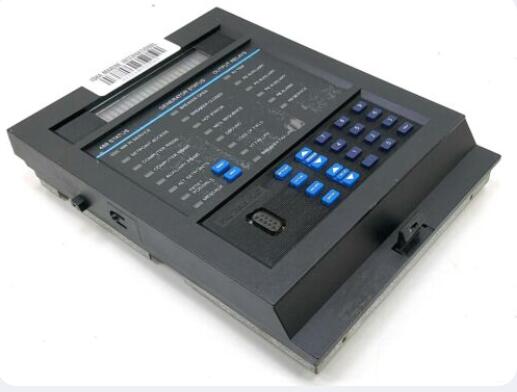

GE Multilin 489-P5-HI-A20-E-H 489 Generator Management Relay System

Manufacturer : GE Multilin
Product No. : 489-P5-HI-A20-E

Manual Part Number: 1601-0150-AF

Manual Order Code: GEK-106494P
Product type : Generator Management Relay
Phase current inputs : P5 = 5 A phase CT secondaries
Control power : HI = 90 to 300 V DC;,70 to 265 V AC at 48 to 62 Hz
Analog outputs : A20 = 4 to 20 mA analog outputs
Display : E = Enhanced display, larger LCD
Shipping weight : 12Kg

  • Product Details
  • Inquiry

The GE Multilin 489-P5-HI-A20-E-H is a highly efficient generator management relay designed to provide advanced protection and monitoring for generators, even in challenging environments. It boasts a robust construction with a conformal coating to ensure durability. Some of its key features include:

  • Generator stator differential protection
  • Comprehensive 100% stator ground protection
  • Loss of excitation protection
  • Distance backup protection
  • Reverse power (anti-motoring) protection
  • Overexcitation protection
  • Various networking interfaces (RS232, RS485, 10Mbps copper Ethernet)
  • Support for multiple protocols (ModBus™ RTU, ModBus™ TCP/IP, DNP 3.0 Level 2)

You can easily configure and monitor this relay using the user-friendly EnerVista 489 Setup Software.

Features:

  • Cutting-edge protection and monitoring capabilities for generators
  • Robust construction with a protective conformal coating
  • Wide range of protection features, including stator differential and ground protection
  • Specialized protection against loss of excitation and reverse power
  • Multiple networking interfaces and protocol support for seamless integration
  • User-friendly configuration and monitoring via EnerVista 489 Setup Software

Technical Specifications:

  • Phase CT secondaries: 5 A
  • HI control power: 90-300 VDC and 70-265 VAC at 48-62 Hz
  • Analog outputs: 4 to 20 mA
  • Display: Enhanced LCD with a larger screen compared to the basic display
  • Environmental protection: Conformal coating for harsh environments
  • Output status LED indicators: Trip (1), Auxiliary (2, 3, 4), Alarm (5), Service (6)
  • Generator status LED indicators: Breaker Open, Breaker Closed, Hot Stator, Negative Sequence, Ground, Loss of Field, VT Failure, Breaker Failure
  • 489 status LED indicators: 489 In Service, Setpoint Access, Computer RS232, Computer RS485 / Auxiliary RS485, Alternate Setpoints, Reset Possible, Message
  • Accessories: EnerVista 489 Setup Software, SR 19-1 PANEL, SR 19-2 PANEL, SCI MODULE, Phase CT, HGF3, HGF8, HGF8, 489 1 ⅜ inch collar, and 489 3-inch collar

For more detailed parameters, please refer to the GE Multilin 489-P5-HI-A20-E-H 489 Generator Management Relay System product manual: 489-P1-HI-A20-E
