Overview

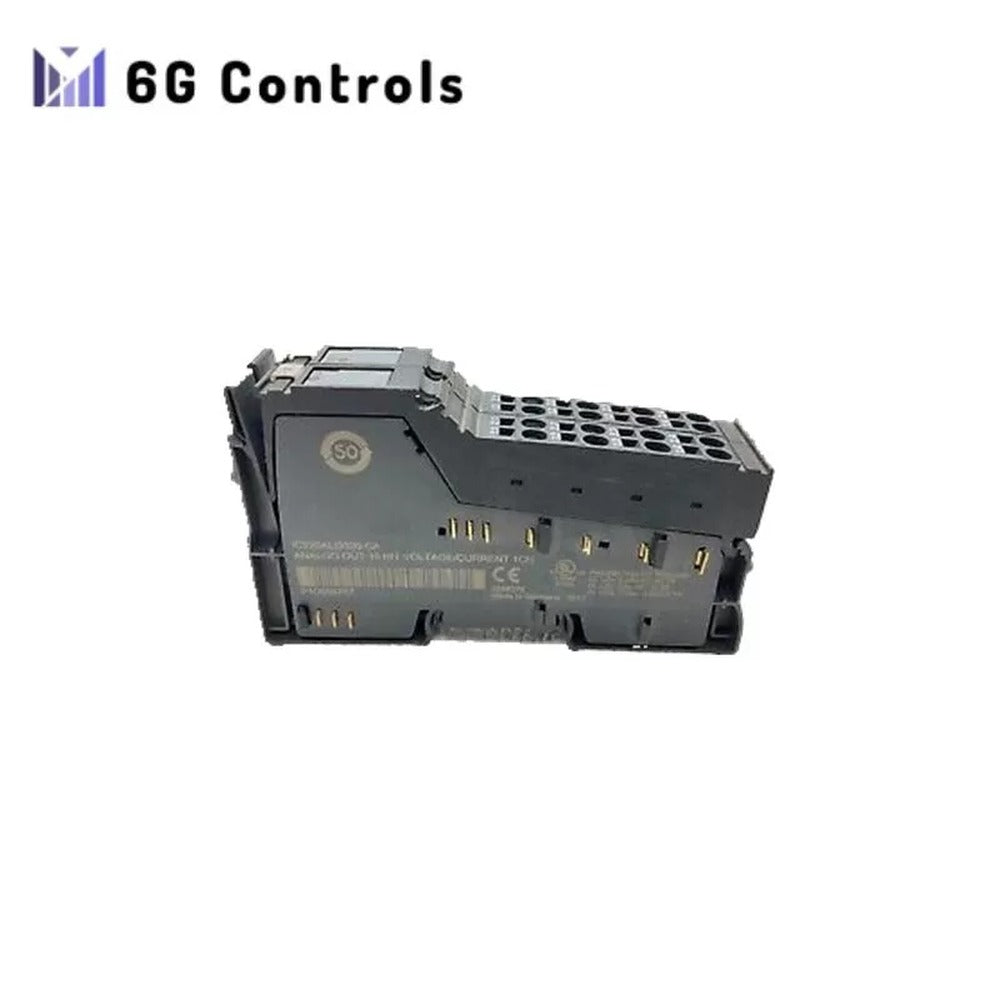

The IC220ALG320 module is designed to provide one analog signal output that can connect either voltage or current signals. It supports 2-wire technology and offers flexible configuration options for various industrial applications. Here are the detailed features and specifications:
Features:
- Analog Signal Output: One output that can be configured to connect either voltage or current signals. Only one output can be used at a time.
- Actuator Connection: Supports actuator connection using 2-wire technology and shield connection.
- Current and Voltage Ranges:
- Current: 0mA to 20mA, 4mA to 20mA
- Voltage: 0V to 10V
- Process Data Update: Includes conversion time of the digital/analog converter of less than 1ms.
Module Specifications:
- Housing Dimensions:
- Width: 24.4mm (0.98 inches)
- Height: 120mm (4.8 inches)
- Depth: 71.5mm (2.86 inches)
- Connection Style: 2-wire technology.
- Operating Temperature: -25°C to +55°C (-13°F to +131°F).
- Storage Temperature: -25°C to +85°C (-13°F to +185°F).
- Operating Humidity: 75% on average, 85% occasionally. Appropriate measures should be taken against increased humidity (> 85%).
- Storage Humidity: 75% on average.
- Degree of Protection: IP 20 according to IEC 60529.
- Class of Protection: Class 3 according to VDE 0106, IEC 60536.
Power Consumption:
- Communications Power (UL): 7.5V.
- Current Consumption from Local Bus (UL): Approximately 30mA (typical), 40mA (maximum).
- I/O Supply Voltage (UANA): 24VDC.
- Current Consumption (UANA): 50mA (typical), 65mA (maximum).
- Total Power Consumption: Approximately 1.425W (typical).
