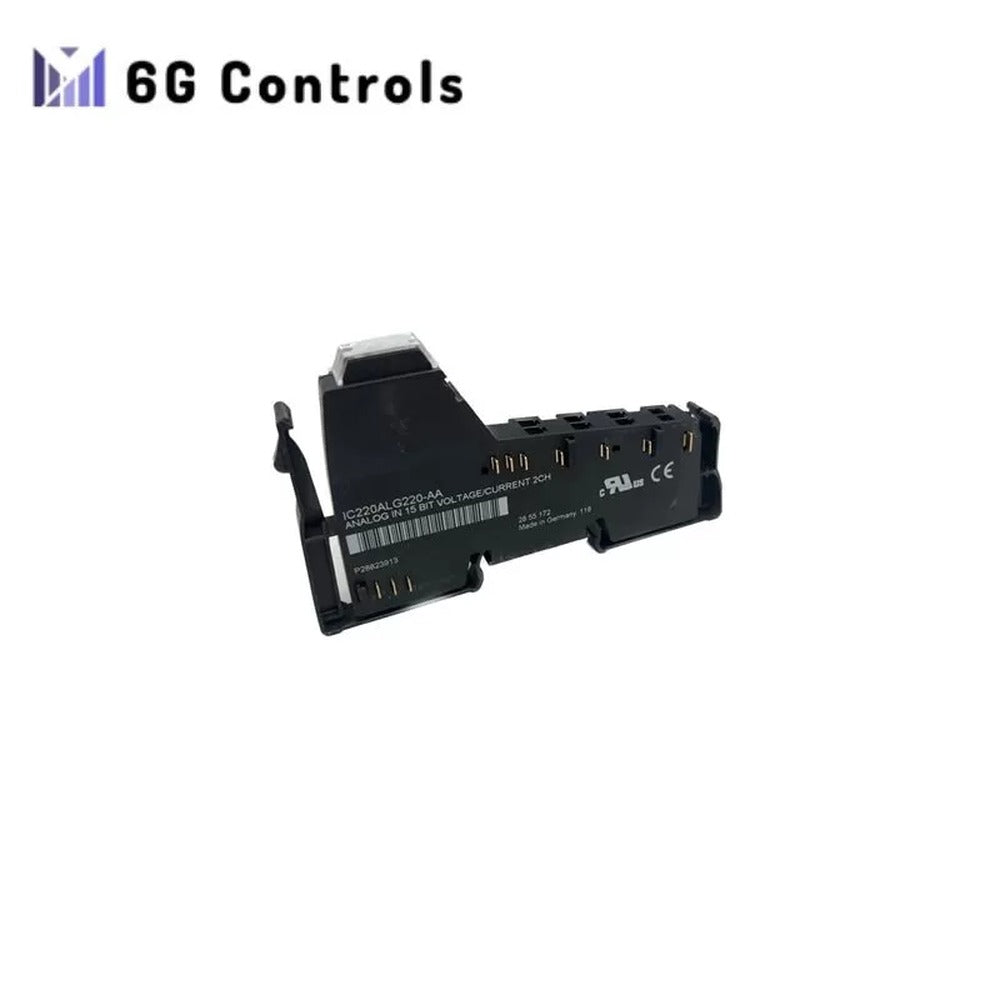

GE IC220ALG220 Analog In 15 Bit Voltage/Current 2 Channels

Overview

The IC220ALG220 is a versatile analog input module used for measuring analog voltage or current signals. Here are the detailed features and specifications:

Features

Inputs: Two analog single-ended inputs for either voltage or current signals.
Sensor Connection: Supports 2- and 3-wire sensors.
Current Ranges:
- 0 to 20 mA
- ±20 mA
- 4 to 20 mA
Voltage Ranges:
- 0 to 10V
- ±10V
Channel Configuration: Independent configuration for each channel.
Representation Formats: Measured values can be represented in two formats.
Resolution: Independent of representation format and measuring range.
Update Rate: Process data update for both channels in a maximum of 1.5 ms.
Diagnostics: Diagnostic indicators for easy troubleshooting.

Ordering Information

IC220ALG220: Analog In 15 Bit Voltage/Current 2 Channels module.
IC220TBK061: I/O Terminal Strip with Shield, quantity 5 (ordered separately).

Module Specifications

Housing Dimensions:
- Width: 12.2 mm
- Height: 120 mm
- Depth: 71.5 mm
- (0.49 in. x 4.8 in. x 2.86 in.)
Connection Style: 2- and 3-wire.
Power for Sensors: Requires an external power supply.
Operating Temperature: -25°C to +55°C (-13°F to +131°F).
Storage Temperature: -25°C to +85°C (-13°F to +185°F).
Operating Humidity: 75% on average; take appropriate measures if humidity exceeds 85%.
Storage Humidity: 75% on average.
Degree of Protection: IP 20 according to IEC 60529.
Class of Protection: Class 3 according to VDE 0106 and IEC 60536.

Power Consumption

Communications Power (UL): 7.5V.
Current Consumption from Local Bus (UL): Approximately 45 mA (typical).
I/O Supply Voltage (UANA): 24VDC.
Current Consumption from Analog Bus (UANA): Approximately 12 mA (typical).
Total Power Consumption: Approximately 0.63W (typical).
