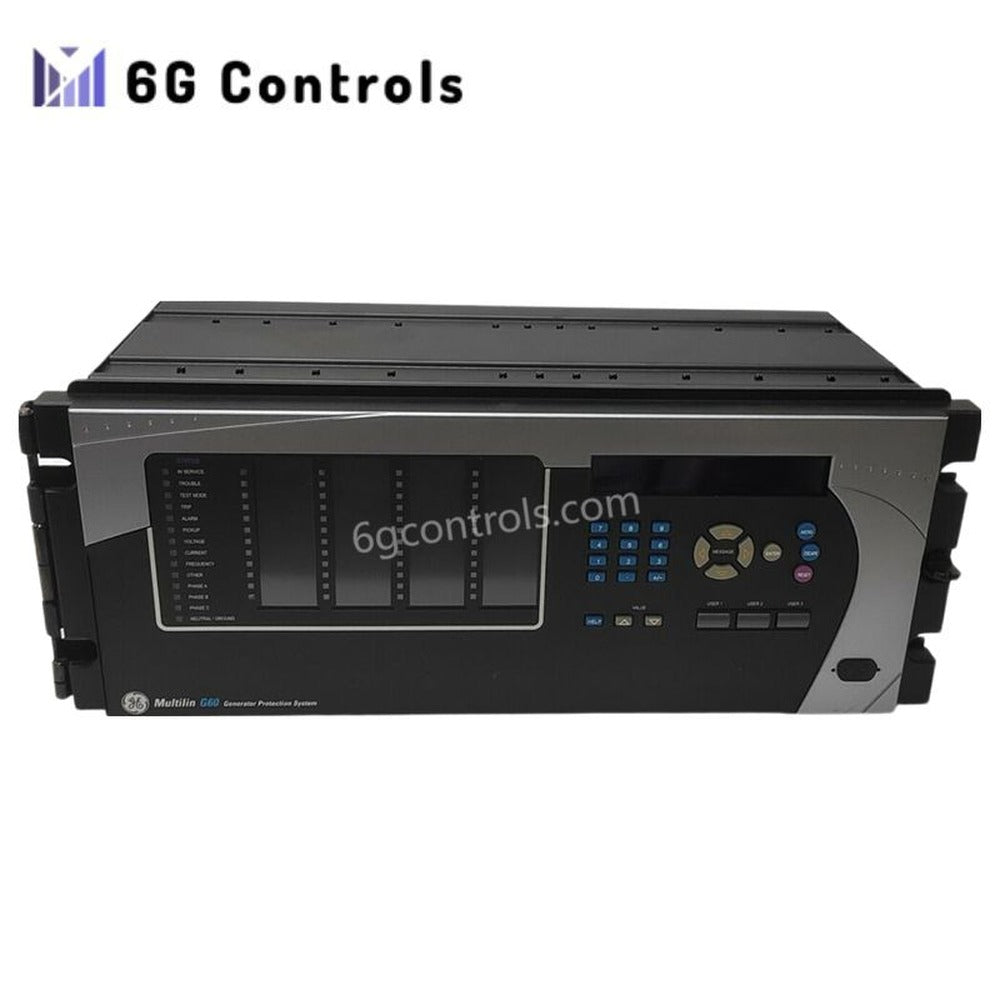

GE G60E00HCHF8LH6TM8NP6CU6CW6C Generator Protection Relay

The GE G60E00HCHF8LH6TM8NP6CU6CW6C is a high-performance generator protection relay designed to safeguard medium to large generators. It is part of the Multilin Universal Relay (UR) series and provides comprehensive protection for generators such as steam turbines, gas turbines, and hydro units. The relay integrates advanced features for protection, control, and communication, ensuring reliable operation in demanding environments.

Technical Specifications

• Model Number: GE G60E00HCHF8LH6TM8NP6CU6CW6C

• Type: Generator Protection Relay

• Protection Features:

  • Current Differential Protection: Protects generator windings from internal faults.

  • Overcurrent and Undercurrent Protection: Safeguards against abnormal current conditions.

  • Voltage and Frequency Protection: Ensures stable voltage and frequency levels.

  • Loss of Excitation Protection: Prevents generator damage from excitation loss.

  • Reverse Power Protection: Protects against reverse power flow, which can damage equipment.

• Communication Protocols:

  • IEC 61850 Edition 1 and 2: Supports modern digital communication standards.

  • Modbus, DNP3, Ethernet: Provides flexibility for integration into various systems.

• Sampling: Synchronized sampling ensures precise and real-time measurements.

• Display: Integrated full-color graphical display for easy monitoring and visualization.

• Cybersecurity Features:

  • CyberSentry™: Compliance with NERC CIP, IEEE 1686, and IEC 62443 standards to ensure cybersecurity.

• Operating Temperature: The relay operates within a temperature range of -40°C to +70°C (-40°F to +158°F), making it suitable for harsh environments.
