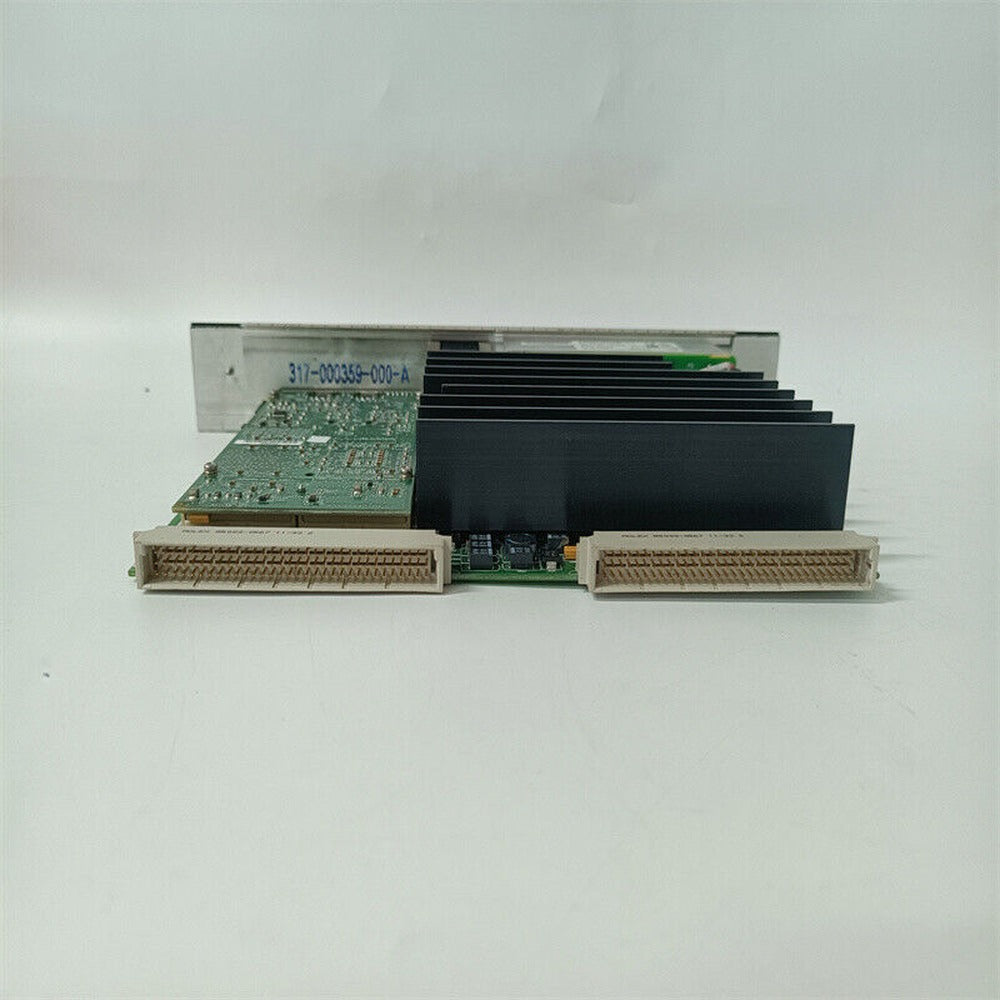

The IC698CPE030 is a 600 MHz Central Processing Unit (CPU) designed by GE Fanuc for the RX7i series. This CPU is equipped with several key features and technical specifications, making it suitable for real-time control applications. Here’s a breakdown of its characteristics:
Key Features:
- Memory: Battery-backed user memory and non-volatile flash memory for data storage. Supports bulk memory access and auto-located symbolic variables.
- Compatibility: Supports Series 90-70 discrete and analog I/O modules, communications modules, and VME modules.
- Processor: Powered by a Pentium-M microprocessor.
- Memory: Comes with 64 MB of both user memory and user flash.
- Communication: Communicates with I/O and smart option modules via a rack-mounted backplane using the VME64 standard format. Embedded Ethernet ports are used for communication with programmers and HMI devices. It also has a serial port supporting the SNP Slave protocol for communication.
- Self-Diagnostic: Performs a complete self-diagnostic check during initialization, with LED indicators providing status information.
- Battery: Requires routine maintenance to replace the lithium battery pack (part IC698ACC701) to prevent memory loss and maintain the calendar clock in case of power loss.
- Serial Ports: Equipped with three isolated serial ports: RS-485 serial port, RS-232 serial port, and RS-232 Ethernet station manager serial port.
Technical Specifications:
- Processing Speed: 600 MHz
- CPU Memory: 64 Mbytes
- Floating Point: Yes
- Serial Ports: 3
- Serial Protocols Supported: Modbus RTU Slave, SNP, Serial I/O
- Embedded Communications: RS-232, RS-485, Ethernet interface
- Ethernet Ports: Embedded auto-sensing 10/100 Mbps half/full duplex Ethernet interface
- VME Compatibility: Designed to support the VME64 standard ANSI/VITA 1
- Program Blocks: Supports up to 512 program blocks with a maximum block size of 128KB.
- Memory:
- %I and %Q: 32Kbits for discrete
- %AI and %AQ: Configurable up to 32Kwords
- %W: Configurable up to the maximum available user RAM
- Managed memory (Symbolic and I/O variables combined): Configurable up to 10 Mbytes
- Ethernet Interface Specifications:
- Web-based data monitoring: Up to 16 web server and FTP connections (combined)
- Ethernet data rate: 10Mb/sec and 100Mb/sec
- Physical interface: 10BaseT RJ45
- WinLoader support: Yes
- Number of EGD configuration-based pages: 255
- Time synchronization: SNTP
- Selective consumption of EGD: Yes
- Load EGD configuration from RX7i to programmer: Yes
- Remote Station Manager over UDP: Yes
- Local Station Manager (RS-232): Dedicated RS-232 port
- Configurable Advanced User Parameters: Yes
