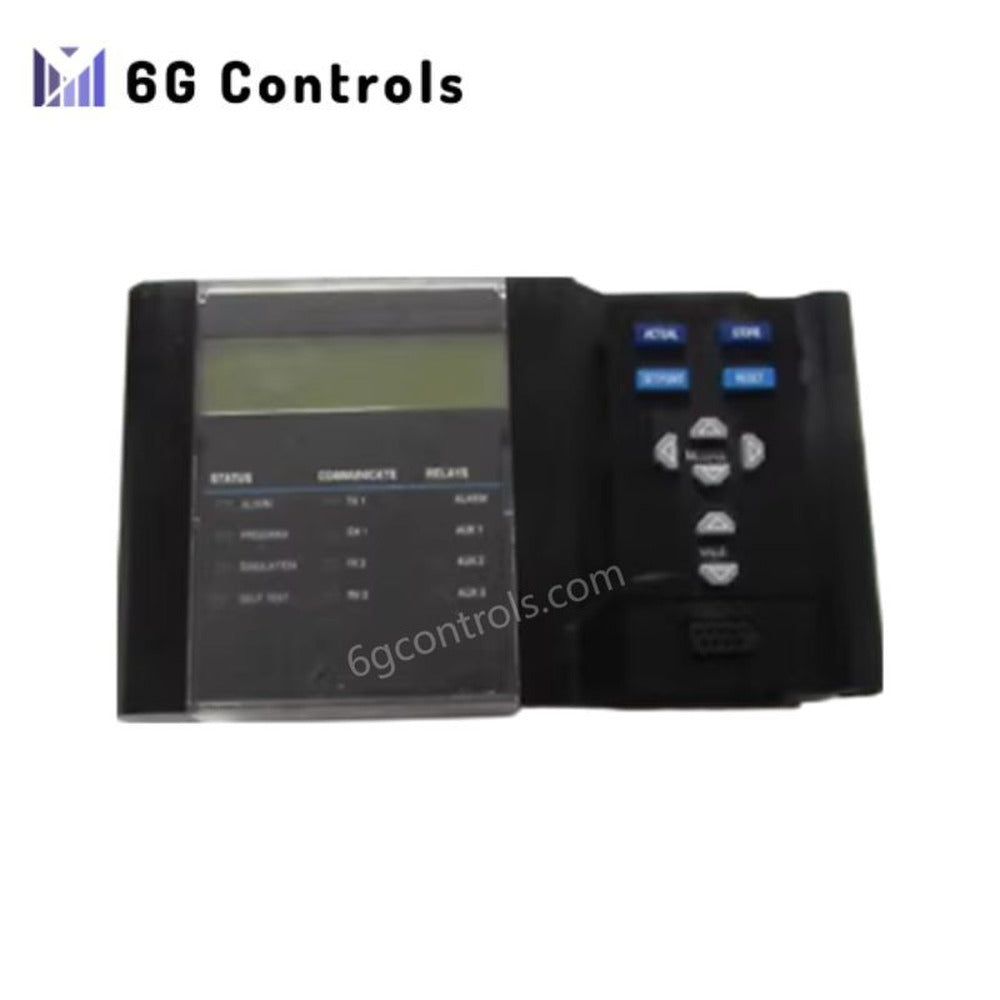

GE Fanuc PQM-C Power Quality Meter Best Selling Brand New

Overview

The GE Fanuc PQM-C is a versatile power quality meter designed to continuously monitor and analyze electrical power systems. It provides comprehensive insights into electrical parameters, such as voltage, current, power, and frequency, to help identify and resolve power quality issues. The PQM-C is particularly useful for monitoring medium and low voltage systems, including transformers, motors, distribution feeders, and generators. With advanced capabilities like harmonic analysis, event recording, and waveform capture, it ensures optimal power quality management.

Technical Specifications

Model Number: PQM-C
Manufacturer: GE Fanuc
Type: Power Quality Meter
Series: PQM II
Frequency: 50/60 Hz
Power Consumption: 20 VA

Monitoring and Metering Capabilities

Current Measurement: Phase A/B/C/N current (A)
Power Measurement: Real power (kW), Reactive power (kvar), Apparent power (kVA)
Energy Measurement: Energy use (Wh, kWh)
Power Factor: True power factor (PF), Crest factor (K factor)
Frequency: Frequency (Hz)
Unbalance: Current and voltage unbalance monitoring

Recording and Analysis Features

Event Recorder: Records up to 150 events
Waveform Capture: Captures power quality disturbances
Voltage Disturbance Recorder (VDR): Monitors voltage dips (sags) and spikes (swells) with a capacity for 500 events
