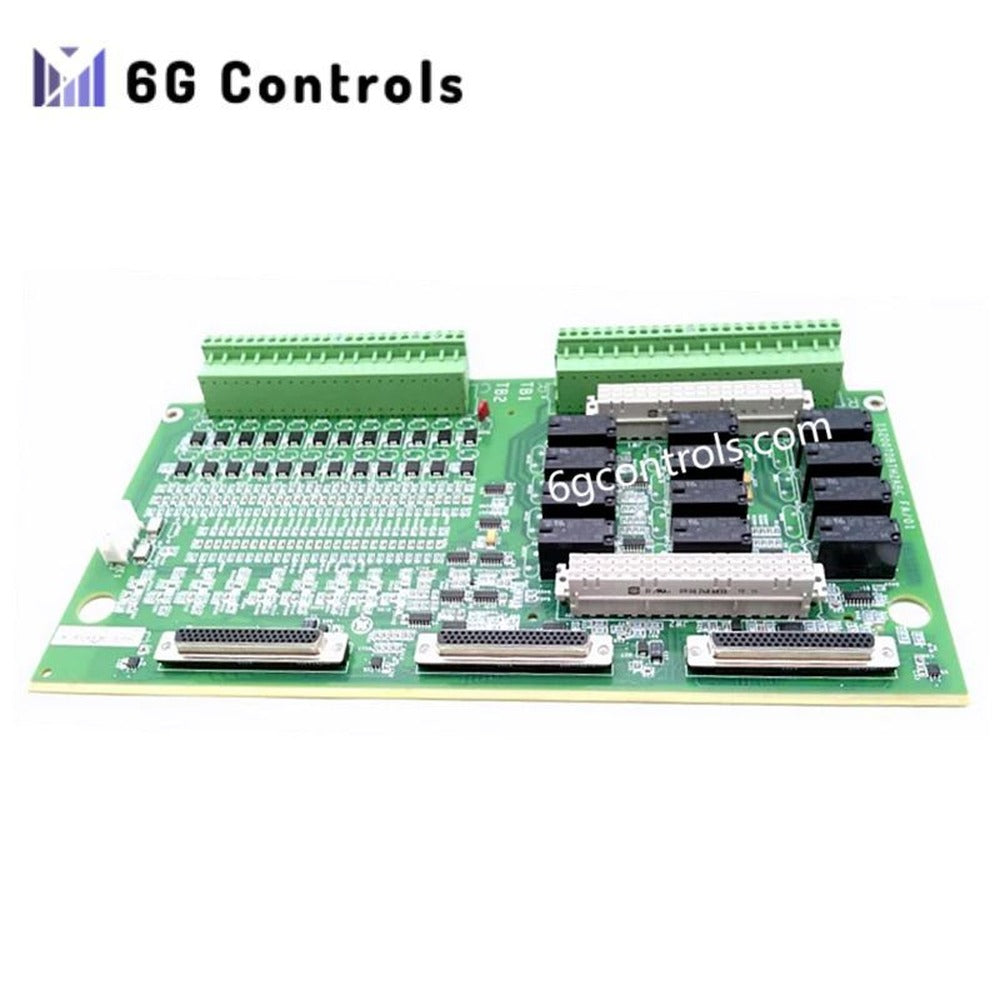

GE Fanuc IS200TDBSH2ACC Mark VI Terminal Board Brand New

The IS200TDBSH2ACC is part of the GE Fanuc Speedtronic Mark VI and Mark VIe systems. It handles the termination of discrete input and output signals, ensuring efficient control across various industrial applications.

Technical Specifications

• Model Number: IS200TDBSH2ACC
• Manufacturer: GE Fanuc
• Type: Mark VI Terminal Board
• Number of Channels: 64 channels (including analog input, analog output, digital input, and digital output)
• Analog Input Channels: 16 channels
• Analog Output Channels: 16 channels
• Digital Input Channels: 16 channels
• Digital Output Channels: 16 channels

Performance Characteristics

• Resolution: 16-bit for both analog input and output channels
• Accuracy: 0.1% for analog input and output
• Response Time: 1 millisecond for analog inputs and outputs

Power and Operating Conditions

• Power Supply Voltage: 24 VDC
• Working Current: 3 A
• Operating Temperature Range: -40°C to +85°C

Physical Dimensions

• Dimensions: 233 mm x 180 mm x 64 mm
• Weight: 0.5 kg
