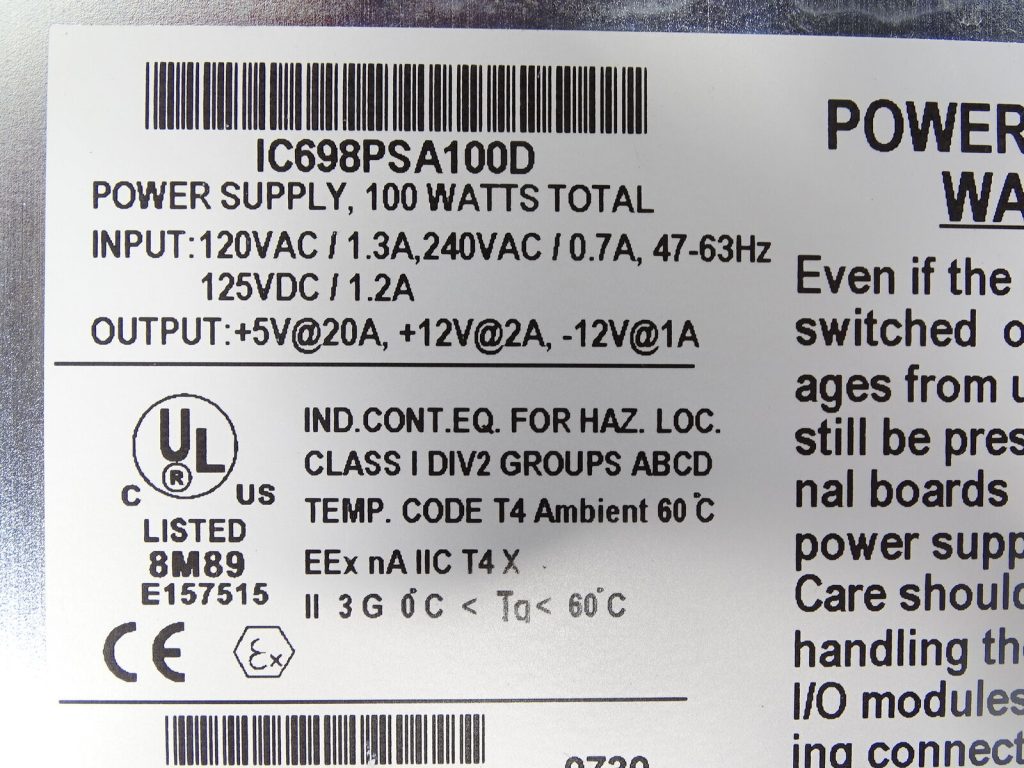

GE FANUC IC698PSA100 Power Supply Module Brand new

Brand: GE Fanuc

Model Number: IC698PSA100

Part Number: 1S7E698PSA100

Type: Power Supply Module

Product Origin: China

Payment: T/T, Western Union

Dimensions: 100 x 100 x 50 mm

Weight: 0.5 kg

Certificate: CE, RoHS

Warranty: 1 year

  • Product Details
  • FAQs
  • Inquiry

The IC698PSA100 is a versatile Power Supply Module designed for the RX7i series by GE Fanuc. It provides +5 VDC, +12 VDC, and -12 VDC power as well as logic level sequencing signals to modules on the backplane. Here are the key features and technical specifications of this module:

Key Features:

  • Voltage Outputs:
    • +5 VDC output: Up to 20 amps
    • +12 VDC output: Up to 2 amps
    • -12 VDC output: Up to 1 amp
  • Input Voltage Range:
    • AC: 85 to 264 VAC (47 to 63 Hz)
    • DC: 100 to 150 VDC
  • Output Power:
    • 100 watts maximum for all three outputs
  • Power Factor Correction: Supported for AC operation (0.99 min between 90 VAC and 260 VAC).
  • Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
  • Rack Location: Slot 0 (Leftmost slot)
  • Protection Features: Overcurrent, overtemperature, and overvoltage fault conditions are protected. It can lose up to one AC input line cycle without losing output power.
  • Isolation: Input to all outputs: 250 VAC continuous; 1500 VAC for 1 minute
  • LED Indicators: LED indicators for field and output status.
  • On/Off Switch: A two-position On/Off switch on the front faceplate for enabling or disabling the output channels.

Technical Specifications:

  • Nominal Rated Voltage: 120/240 VAC or 125 VDC
  • Input Power:
    • For 100 W Supply: 125 watts (typical), 150 watts (maximum)
    • For 350 W Supply: 437 watts (typical), 500 watts (maximum)
  • Inrush Current (Cold Start):
    • For 100 W Supply:
      • 115 VAC: 15 amps maximum
      • 230 VAC: 30 amps maximum
      • Inrush current duration: 100 milliseconds
    • For 350 W Supply:
      • 115 VAC: 30 amps maximum
      • 230 VAC: 60 amps maximum
      • Inrush current duration: 100 milliseconds
  • Output Requirements (100 W Supply):
    • +5 VDC: 4.875 to 5.25 volts, 0 to 20 amps
    • +12 VDC: 11.64 to 12.6 volts, 0 to 2 amps
    • -12 VDC: -12.60 to -11.64 volts, 0 to 1 amp
    • Overvoltage Limit: +5 VDC Output: 5.7 to 6.7 volts
    • Overcurrent Limit: +5 VDC output: 21 A (typical), +12 VDC output: 2.5 A (typical), -12 VDC output: 3.5 A (typical)
  • Output Requirements (350 W Supply):
    • +5 VDC: 4.875 to 5.25 volts, 0 to 60 amps
    • +12 VDC: 11.64 to 12.6 volts, 0 to 12 amps
    • -12 VDC: -12.6 to -11.64 volts, 0 to 4 amps
    • Overvoltage Limit: +5 VDC Output: 5.7 to 6.7 volts
    • Overcurrent Limit: +5 VDC output: 66A (typical), +12 VDC output: 15A (typical), -12 VDC output: 4.6A (typical)
  • Ride-Through (Time Allowed for Loss of AC Input Without Affecting DC Outputs): 15 milliseconds minimum
  • Holdup Time (Time from ACFAIL# System Failure Signal Activation to When Any DC Output Drops Out of Specification): 5 milliseconds minimum
  • Fan Tray Attachment: Required for full capacity at higher temperatures (0°C to 60°C).

Please note that lethal voltages are present inside the module when input power is present. Proper precautions should be taken when handling or servicing the module.
