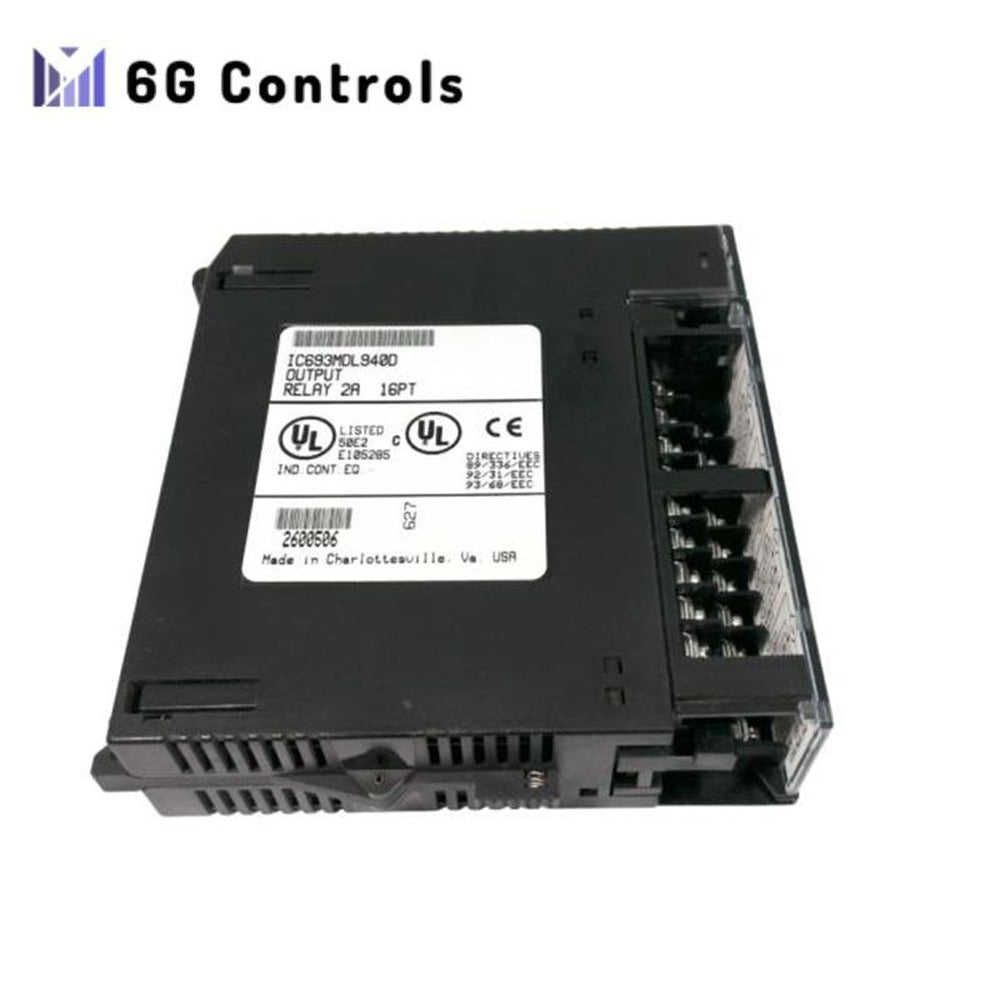

GE Fanuc IC693MDL940D Relay Output Module In Stock

Overview

The GE Fanuc IC693MDL940D is a 16-point relay output module designed for use in the GE Fanuc Series 90-30 PLC systems. It enables the PLC to control external devices by switching electrical circuits on and off. This module provides 16 individual relays, each with a normally open (NO) contact configuration, offering flexible control for a wide range of industrial applications. With a 2-amp switching capacity per relay, it can handle devices like motors, lights, solenoids, and pumps. The module also features status LED indicators for each output and removable terminal blocks for easier wiring and maintenance.

Technical Specifications

Part Number: IC693MDL940D
Manufacturer: GE Fanuc
Type: 16-Point Relay Output Module
Contact Type: Normally Open (NO)
Number of Outputs: 16 outputs (4 groups of 4 outputs)
Rated Voltage: 24 VDC, 120/240 VAC
Operating Voltage: 5 to 30 VDC, 5 to 250 VAC (50/60 Hz)
Switching Current: 2 A per output
Maximum Load: 2 A per output, 4 A per common, 16 A per module
Minimum Load: 10 mA
Maximum Inrush Current: 5 A
On/Off Response Time: 15 ms maximum
Isolation: 1500 VAC (field side to logic side), 500 VAC (between groups)
LED Indicators: 16 LEDs for output status (green for active, red for inactive)
Internal Power Consumption:
- 7 mA from 5V bus (backplane)
- 135 mA from 24V relay bus (backplane)
Operating Temperature: 0 to 60°C
Storage Temperature: -40 to 85°C
Weight: 1.15 lbs
