Overview

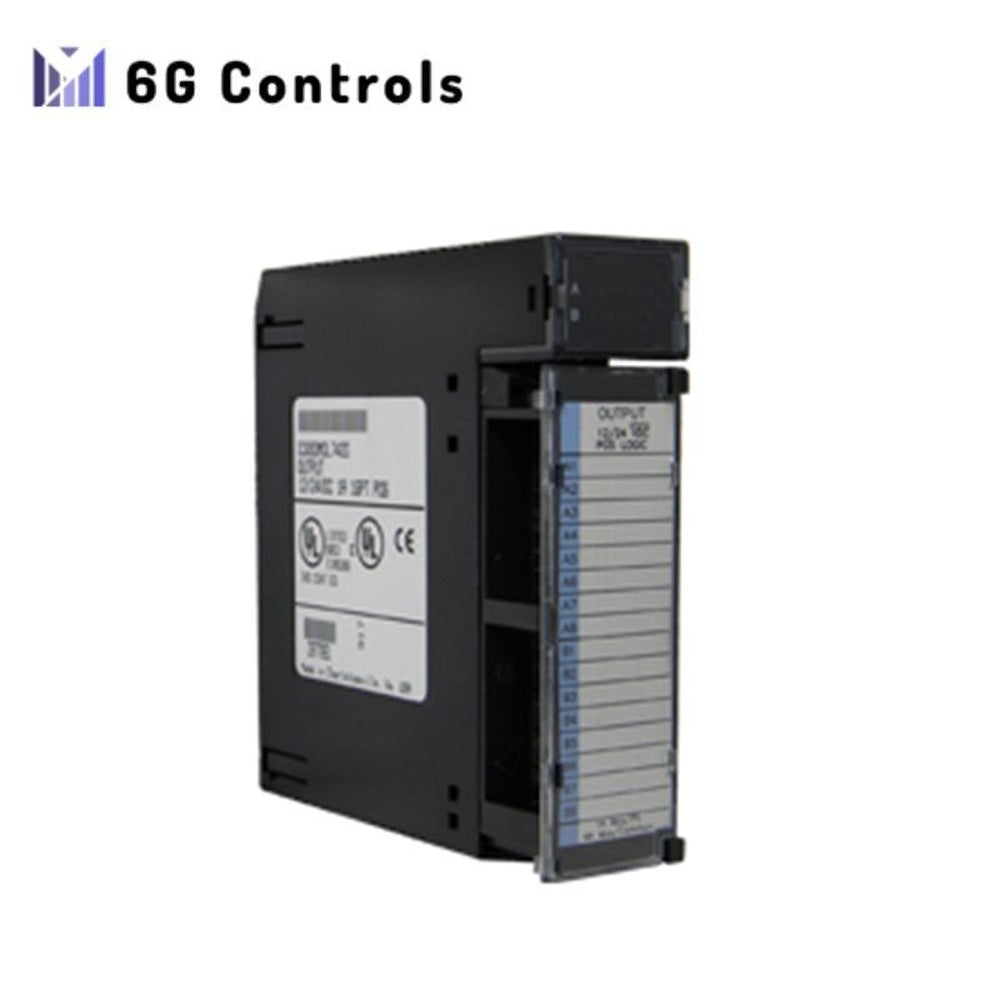

The GE Fanuc IC693MDL742D is a versatile 12/24V DC Positive Logic Output module, designed for use with GE Fanuc Series 90-30 PLC systems. It provides 16 output points that enable the control of various devices in industrial automation. The module is equipped with Electronic Short Circuit Protection (ESCP) to safeguard against field wiring issues, ensuring reliable and safe operation.
Technical Specifications
- Rated Voltage: 12/24 VDC
- Nominal Input and Output Voltage: 12/24 VDC
- Output Signal Range: 12-24 VDC (+20%, -15%)
- Output Current:
- 1.0 A per point
- 4.0 A per group at 50°C
- 3.0 A per group at 60°C
- Number of Channels per Group: 8
- Number of Output Groups: 2
- Peak Module Current Draw: 130 milliamps
- Peak Output Voltage Drop: 1.2 V
- Maximum On/Off Response Time: 2 milliseconds
- Off-State Leakage: 1 mA maximum
- Isolation:
- 1500 V between field and logic side
- 500 V between groups
- Operating Temperature: 0°C to 60°C
- Relative Humidity: 5% to 95%
- Weight: 0.51 lbs
