Overview

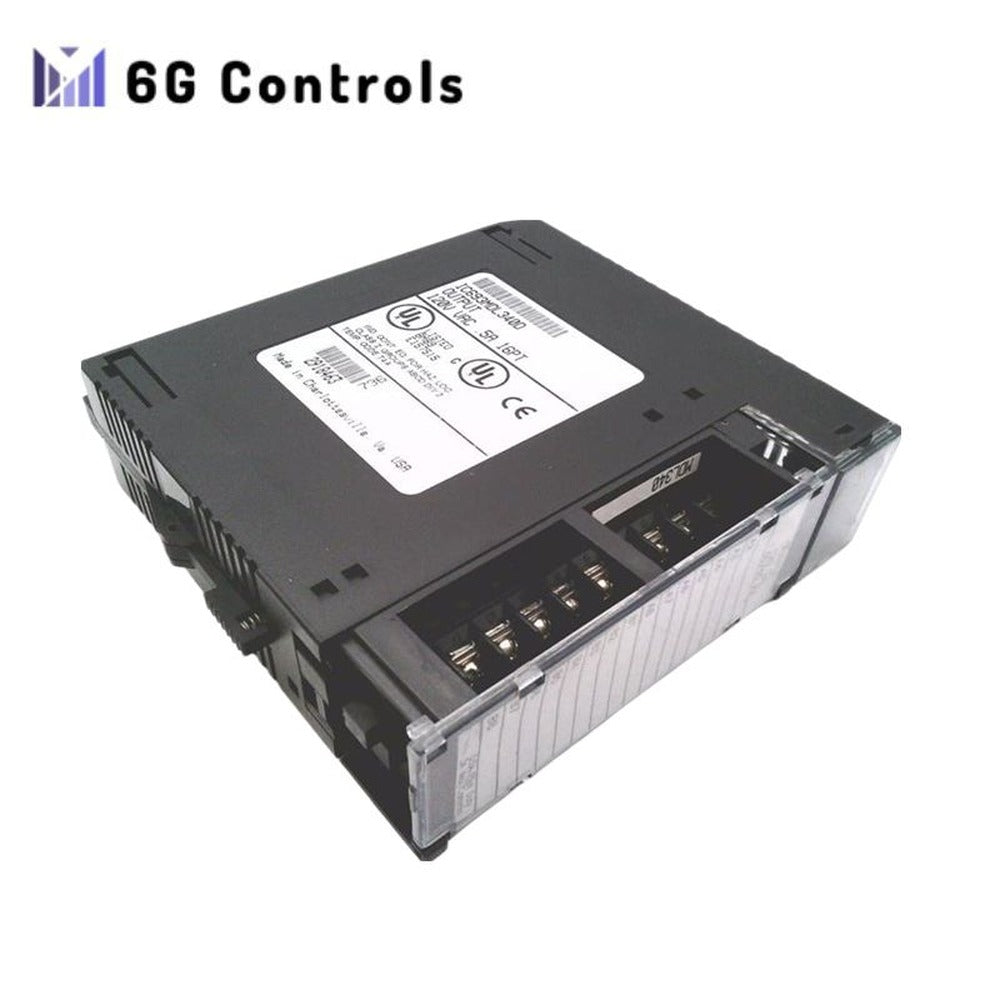

The IC693MDL340 is a 16-point discrete output module, part of the Series 90-30 family, formerly manufactured by GE Fanuc and now under Emerson Automation. Designed for industrial automation and control systems, this module offers reliable 120 VAC output channels with flexible configuration options. It is ideal for use in applications requiring robust and high-performance discrete outputs.
Technical Specifications
- Brand: GE Intelligent Platforms / GE Fanuc
- Series: Series 90-30
- Part Number: IC693MDL340
- Product Type: Output Module
- Product Family: Series 90-30
Channels and Groups
- Number of Channels: 16 discrete output channels
- Number of Groups: 2
- Channels per Group: 8
Voltage and Current Ratings
- Rated Output Voltage: 120 VAC
- Output Voltage Range: 85 to 132 VAC
- Nominal Output Voltage: 120 VAC
- Output Current per Point: 0.5 A
- Output Current per Group: 3.0 A
- Minimum Load Current: 50 mA
Frequency and Response Times
- Frequency Range: 50 to 60 Hz
- On Response Time: 1 ms
- Off Response Time: ½ cycle
- Max. Output Voltage Drop: 1.5 V
Inrush and Leakage Current
- Inrush Current: 20 A for one cycle
- Max. Output Leakage Current: 2 mA at 120 V AC
- Min. Output Leakage Current: 1 mA
Isolation
- Field to Logic Side Isolation: 1500 V
- Isolation Between Groups: 500 V
Power and Backplane
- Backplane Current Draw: 315 mA when all outputs are activated
General Specifications
- Weight: 1.00 lbs
- Product Category: PLCs/Machine Control
- Subcategory: PLC Module/Rack
