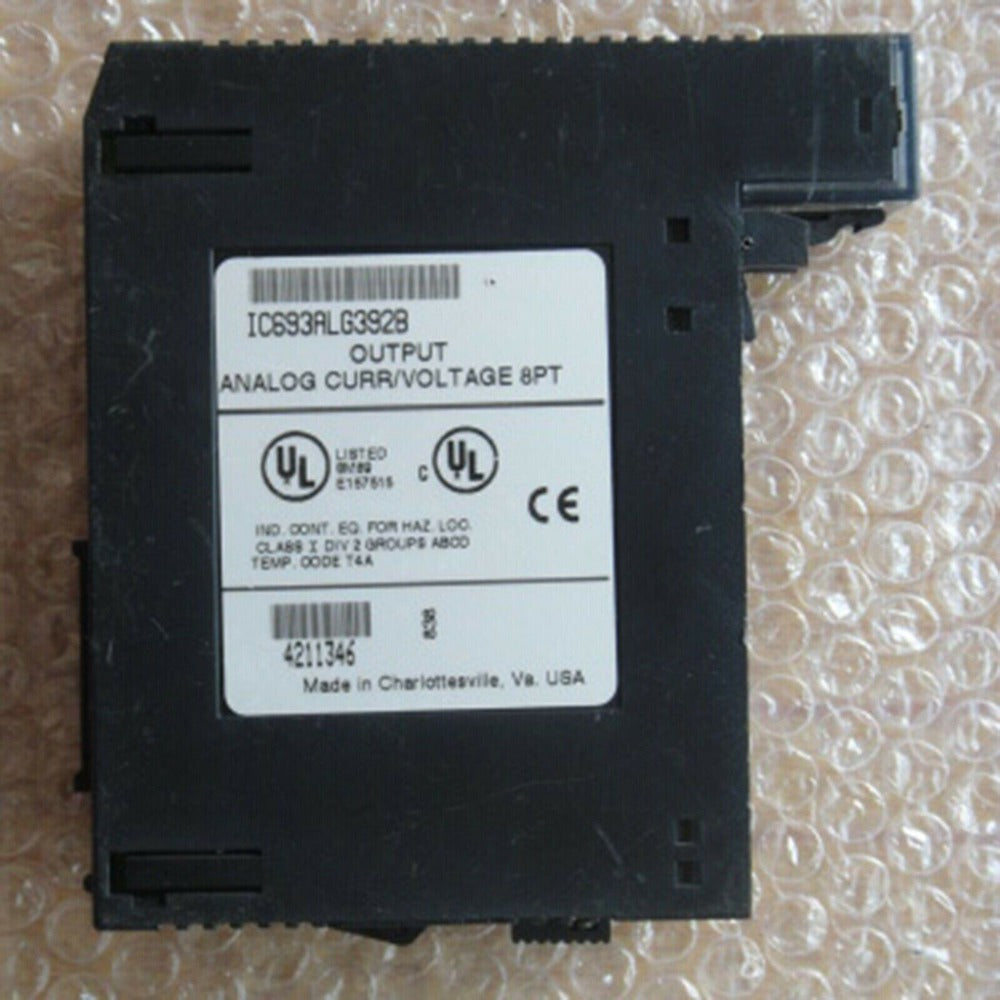

GE Fanuc IC693ALG392 PLC Module Brand New in Stock

The GE Fanuc IC693ALG392 is an 8-channel analog output module that provides current and voltage loop outputs from a maximum of 8 single-ended output channels. It offers bipolar and unipolar voltage ranges along with current ranges of 0 to 20 milliamps or 4 to 20 milliamps. Each output channel has the ability to execute digital-analog conversion. The 8 output channels have an update rate of 8 milliseconds per channel.

Features

• 8-channel analog output module
• Bipolar and unipolar voltage ranges
• Current ranges of 0 to 20 milliamps or 4 to 20 milliamps
• Digital-analog conversion on each output channel
• Update rate of 8 milliseconds per channel
• Open wire fault reporting
• Known last state on power loss
• External power supply
• Single-ended output channels
• Factory adjusted to .625 μA

Applications

The GE Fanuc IC693ALG392 can be used in a variety of applications, including:

• Process control
• Motion control
• Machine automation
• Data acquisition
• Test and measurement
• Medical equipment
• Industrial automation

Technical Specifications

• Number of channels: 8
• Voltage ranges: bipolar (-10 to +10 volts), unipolar (0 to +10 volts)
• Current ranges: 0 to 20 milliamps, 4 to 20 milliamps
• Digital-analog conversion: 15 to 16 bits
• Update rate: 8 milliseconds per channel
• Open wire fault reporting
• Known last state on power loss
• External power supply: 24 VDC
• Output channels: single-ended
• Factory adjusted to .625 μA

Dimensions and Weight

• Dimensions (H x W x D): 4.72 x 2.52 x 1.02 inches
• Weight: 1.25 pounds

Warranty

The GE Fanuc IC693ALG392 is covered by a 3-year warranty.

Pricing

The GE Fanuc IC693ALG392 is available for purchase from authorized dealers. The price varies depending on the dealer and the region.

Contact Information

For more information about the GE Fanuc IC693ALG392, please contact:

• GE Fanuc Automation
• 1 River Road
• Charlottesville, VA 22901
• USA
• Phone: 1-800-934-6387
• Website: https://www.gefanuc.com/

Q: What is the output range of the IC693ALG392 module?

A: Each output channel can be configured for either 0-10VDC or 4-20mA output signals.

Q: What is the resolution of the analog output values?

A: The module provides 12-bit resolution for analog output values.

Q: How fast are the output values updated?

A: The output values are updated at a rate of up to 5ms per channel.

Q: What diagnostic features are included with the module?

A: The module includes channel status indicators and overrange/underrange detection.

Q: How is the module configured?

A: The module is configured using a PC-based software tool or handheld programmer.

Q: What is the operating temperature range for the module?

A: The module can operate within a temperature range of 0°C to 60°C.

Q: What is the power consumption of the module?

A: The module requires 135mA from the backplane power supply.

Q: What PLCs is the module compatible with?

A: The IC693ALG392 module is compatible with GE Fanuc Series 90-30 PLCs.
