Overview

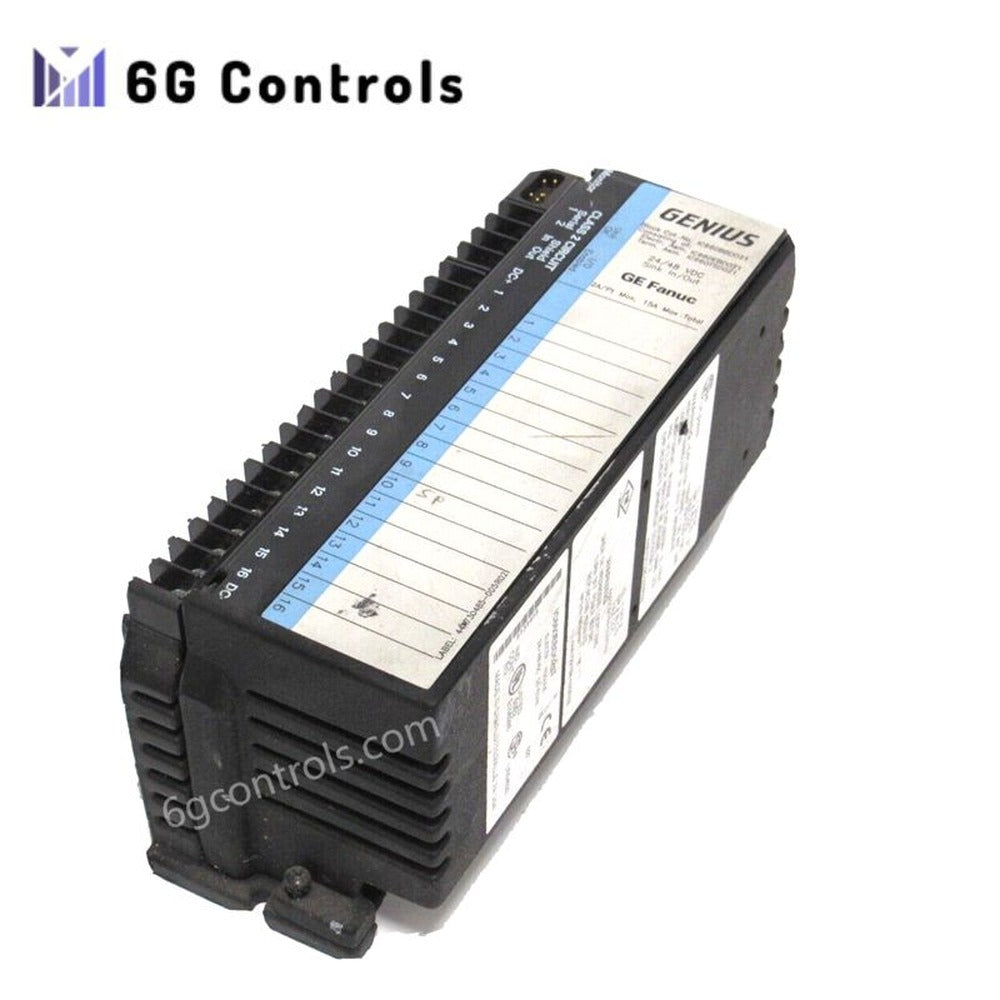

The GE Fanuc IC660BBD021 is a Genius I/O Block module designed for industrial automation. It features sixteen (16) I/O circuits that can be configured as inputs, tri-state inputs, or outputs. The module is powered by 24V or 48V DC and is part of the Genius I/O series, now under Emerson Automation. This compact module is ideal for connecting with sensors and other I/O devices in distributed control systems. It integrates seamlessly into the Genius I/O network and supports diagnostics for reliable operation in harsh industrial environments.
Technical Specifications
- Part Number: IC660BBD021
- Brand: GE Fanuc / Emerson Automation
- Series: Genius I/O
- Circuit Type: Sink I/O
- Number of Circuits: 16
- Input Signal Voltage: 24 VDC or 48 VDC
- Operating Voltage: 24V or 48V DC
- Input Processing Time: 1.7 ms
- Output Current: 2A per circuit
- Maximum Inrush Current: 10A for up to 10 ms
- Maximum Switching Frequency: 1 Hz (once per second)
- Power Supply Dropout Time: 10 milliseconds
- Isolation Voltage: 1500V between blocks
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 100°C
- Humidity Range: 5% to 95% non-condensing
- Dimensions: 8.83″ x 3.56″ x 4.42″ (224 mm x 90.4 mm x 112.7 mm)
- Weight: 4 lbs (1.8 kg)
