Overview

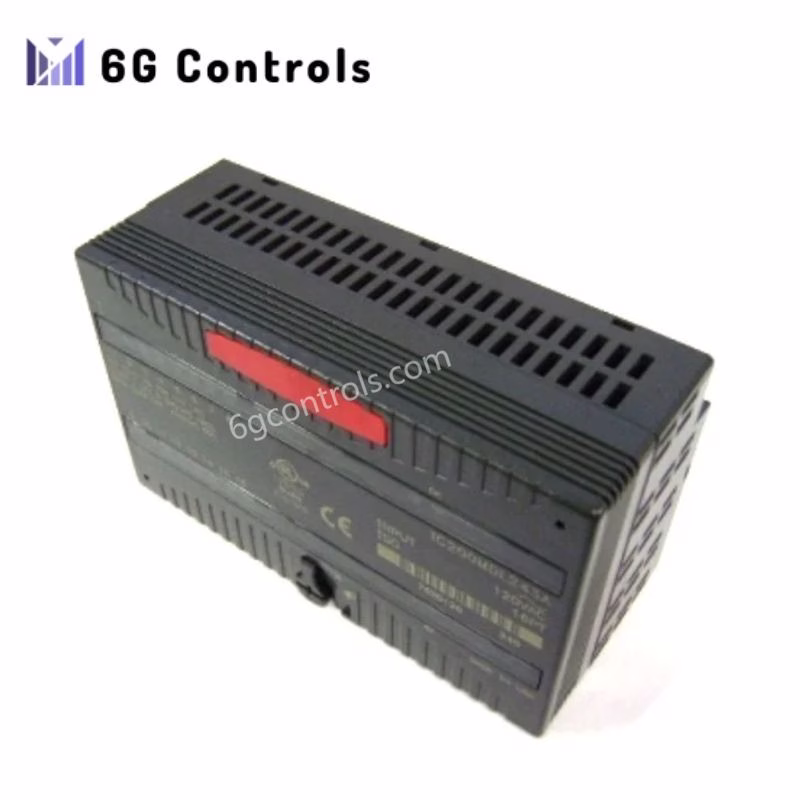

The GE Fanuc IC200MDL243 is a 120 VAC Discrete Input Module designed for industrial automation systems. It provides a reliable connection for up to 16 discrete input devices to a VersaMax PLC. This module is built to withstand harsh industrial environments, offering isolation and positive logic (sourcing) for each input. It features individual return paths for each channel, ensuring precise and reliable signal processing.
Technical Specifications:
- Model Number: IC200MDL243
- Brand: GE Fanuc
- Type: Discrete Input Module
- Series: VersaMax
- Input Voltage: 120 VAC
- Number of Inputs: 16 discrete inputs
- Isolation: Isolated input channels
- Logic Type: Positive Logic (Sourcing)
- Backplane Current Rating: 100 mA
- Maximum Response Time (On): 1 cycle
- Built-in Power: Yes
- Channel Isolation: Yes
- LED Indicators: 16 individually numbered LEDs, 1 backplane LED
- Dimensions: 110 mm x 66.8 mm x 50 mm
- Weight: 0.60 lbs
